Instrument Panel Fuse Block



Electrical Center Identification Views

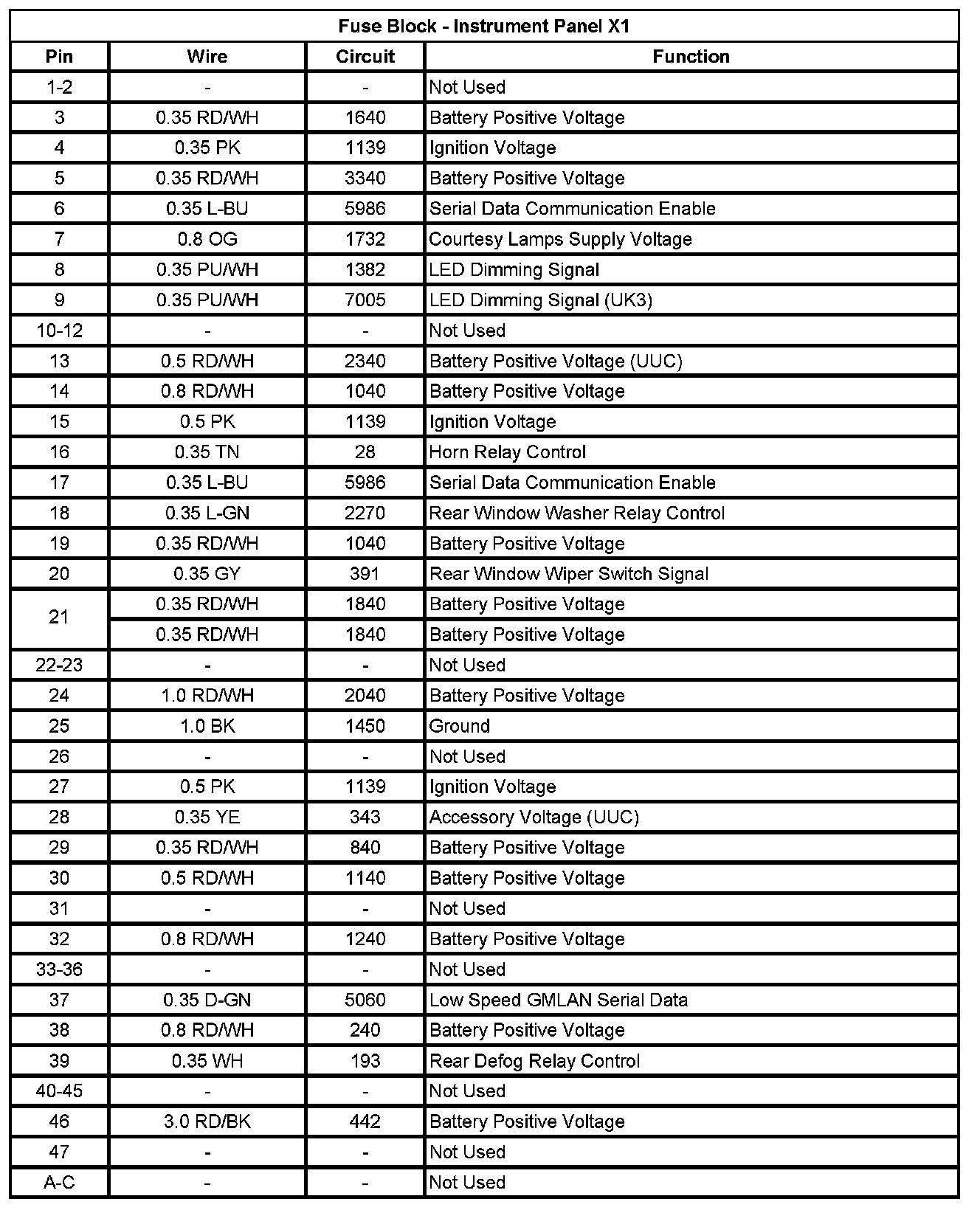

Fuse Block - Instrument Panel X1














Fuse Block - Instrument Panel X2

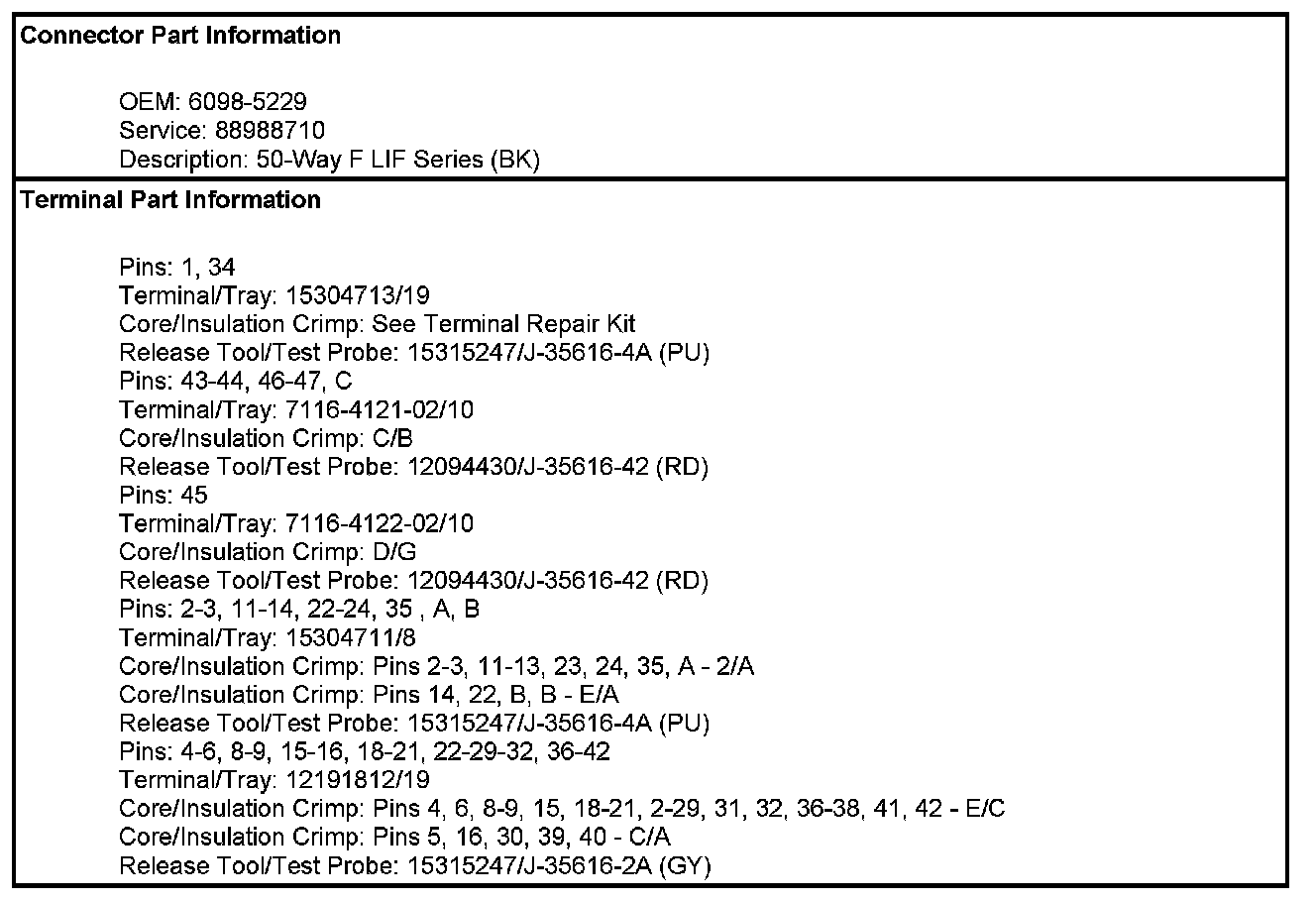

Fuse Block - Instrument Panel X3

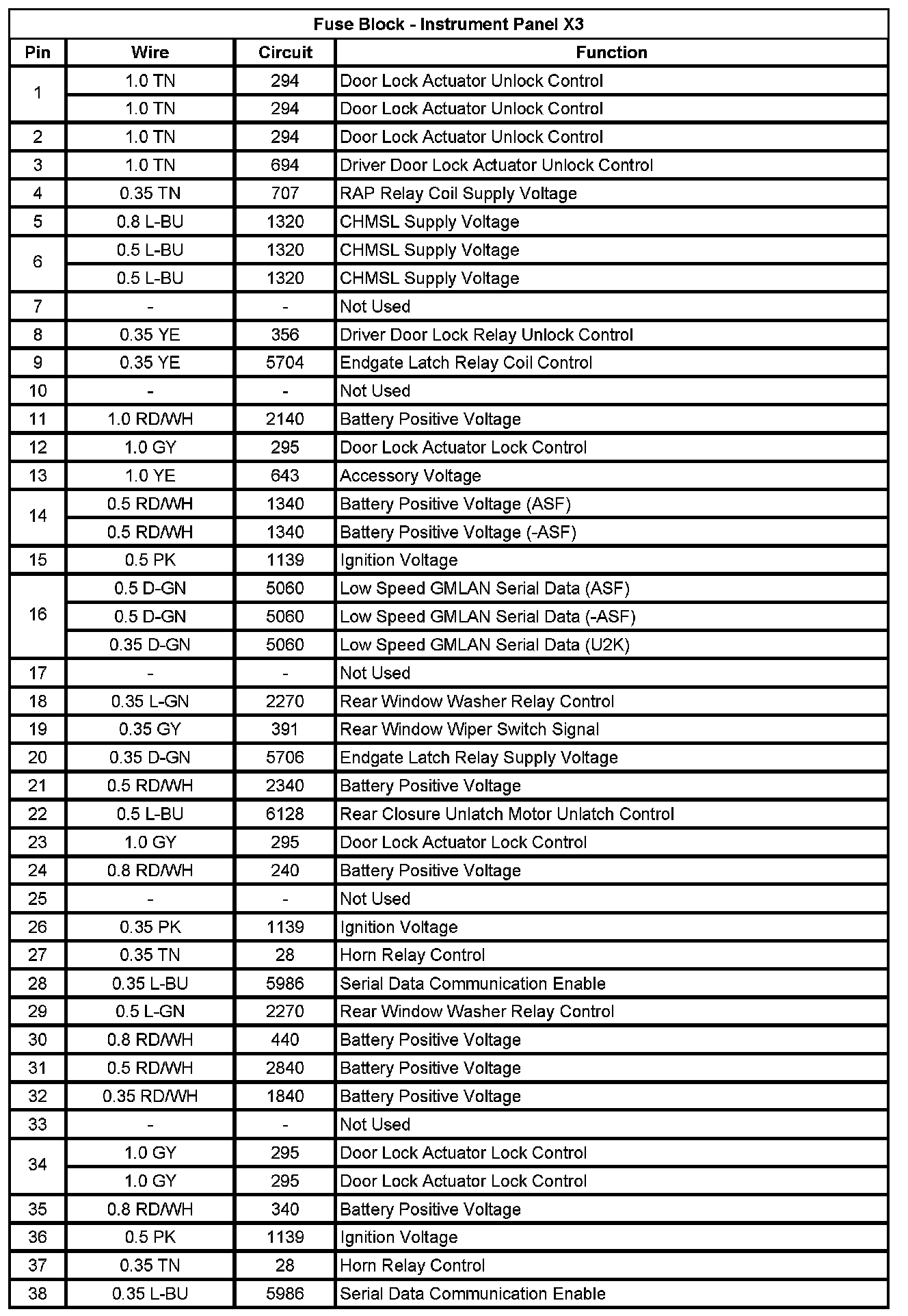

Fuse Block - Instrument Panel X3 (Pin 1 To 38):

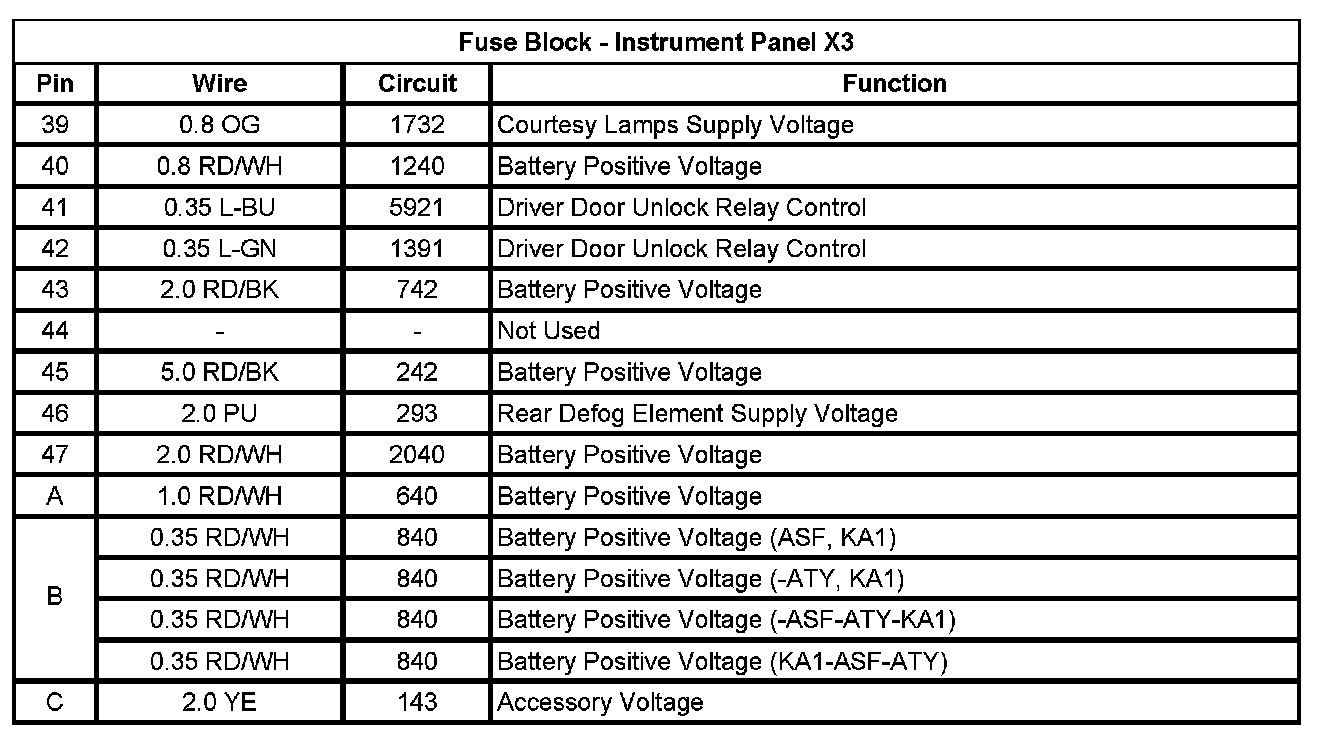

Fuse Block - Instrument Panel X3 (Pin 39 To C):
