Connector Views

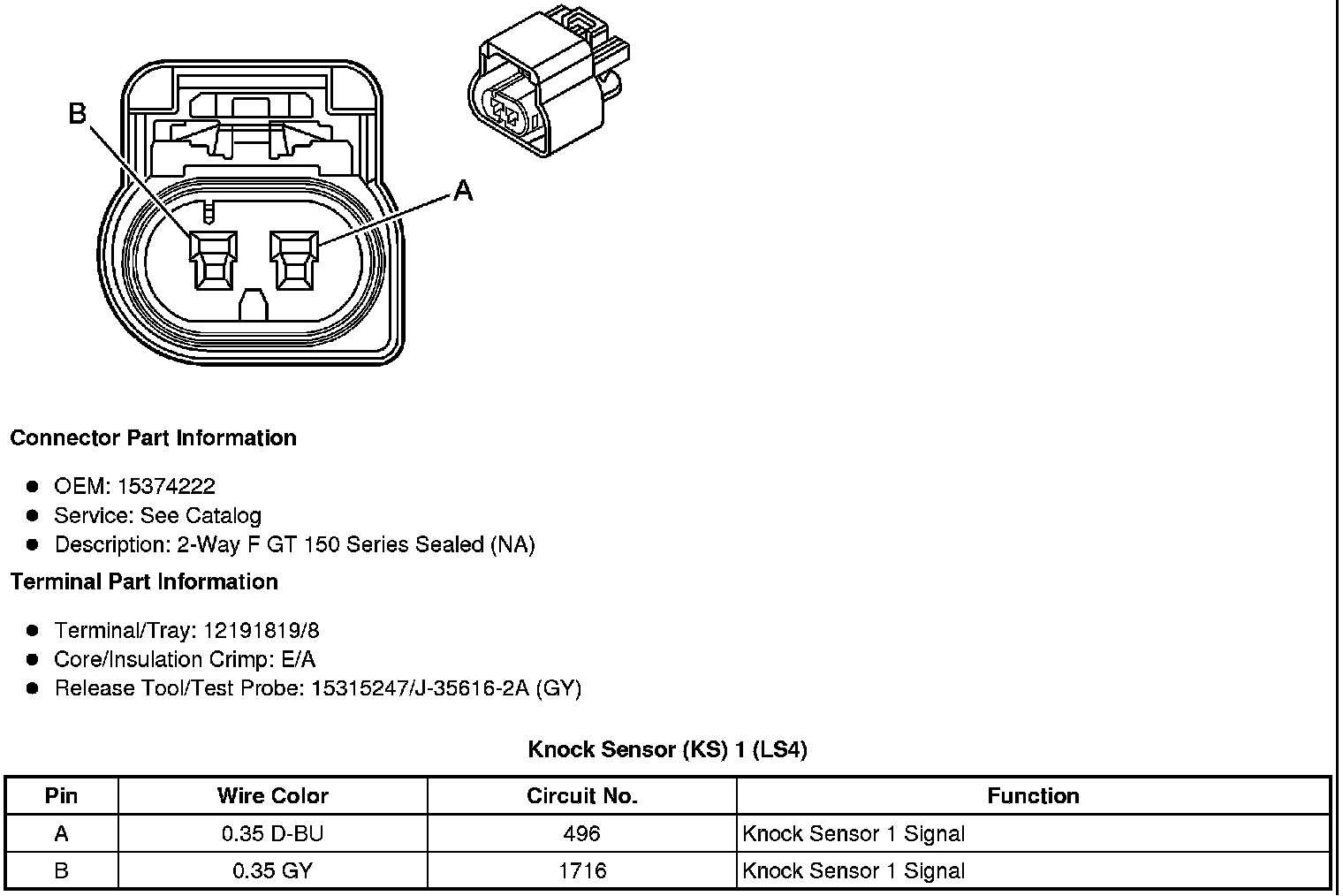

Knock Sensor (KS) 1 (LS4 - 5.3L)

Knock Sensor (KS) Bank 1 (L26)

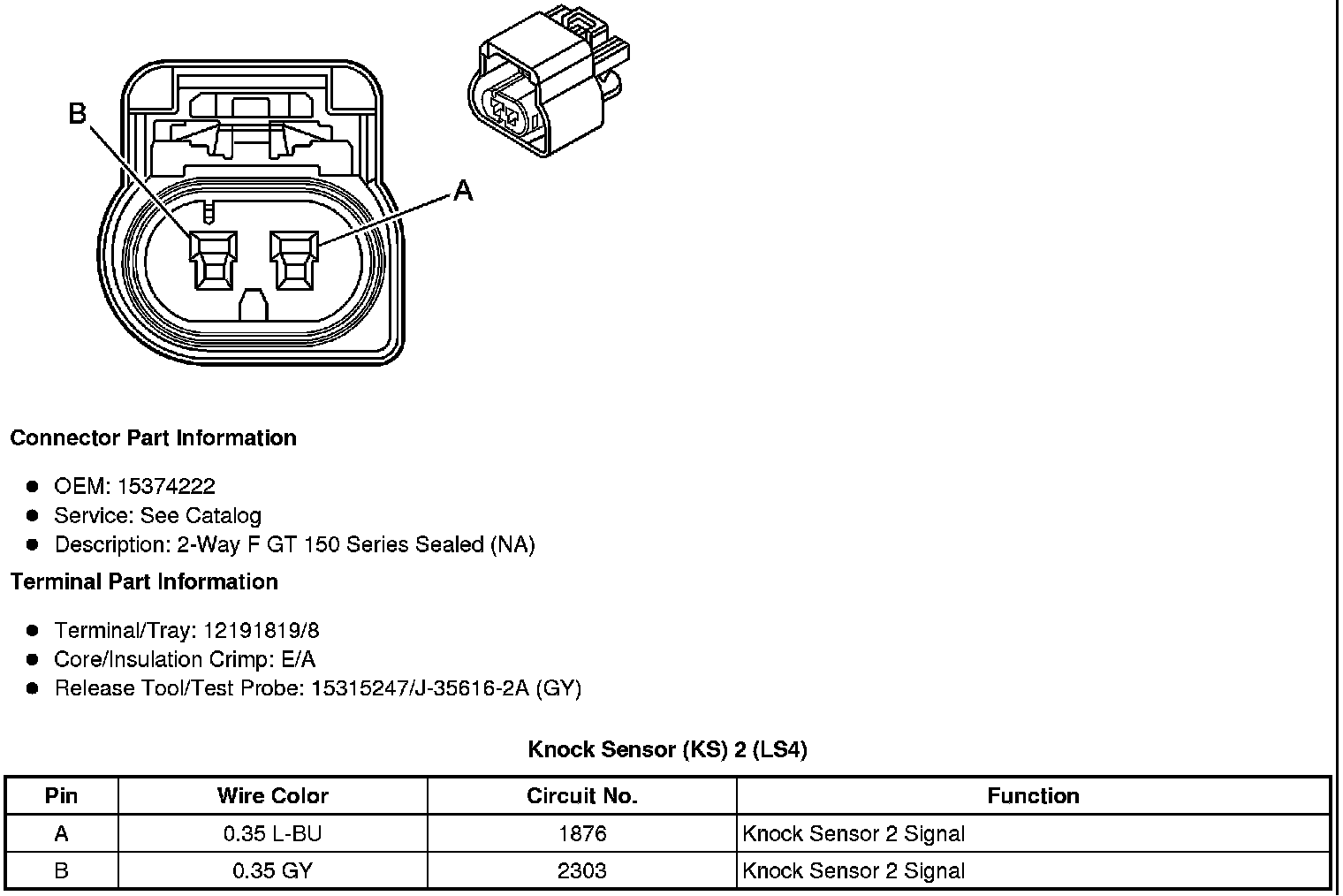

Knock Sensor (KS) 2 (LS4 - 5.3L)

Knock Sensor (KS) Bank 2 (L26)
