Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Diagrams

Oil Pressure Sensor: Diagrams

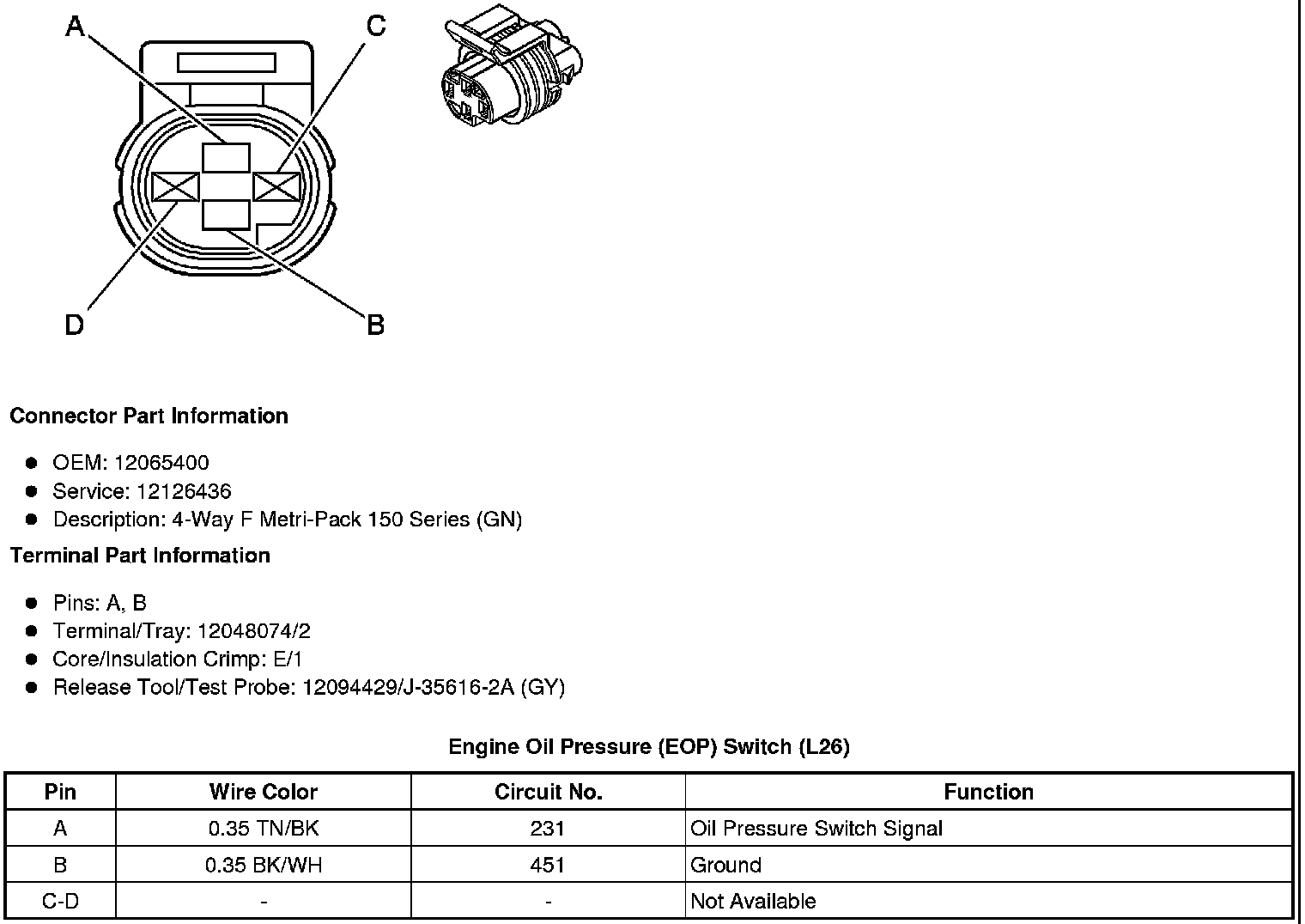

Engine Oil Pressure (EOP) Switch (L26 - 3.8L)
