Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

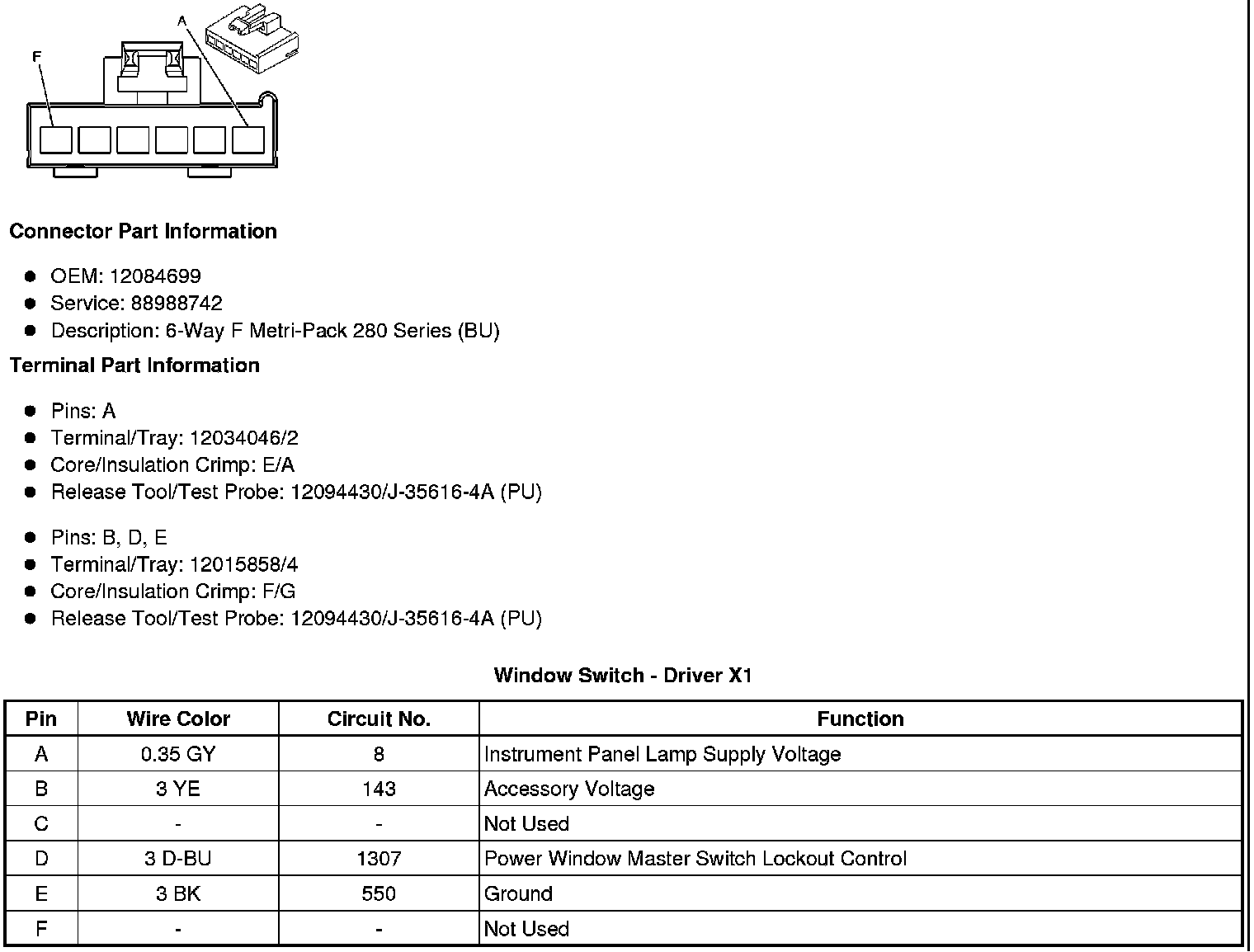

Window Switch - Driver X1

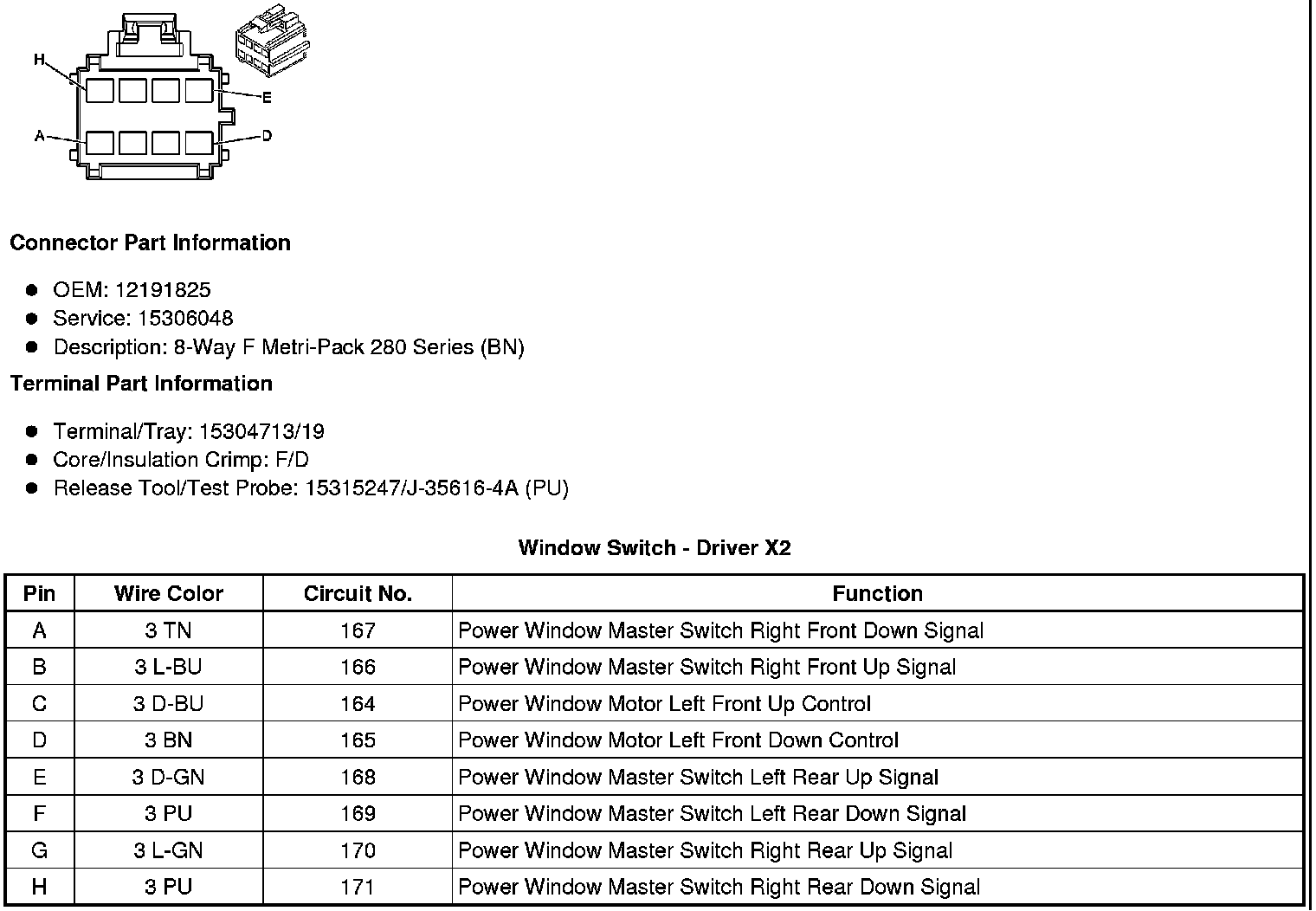

Window Switch - Driver X2

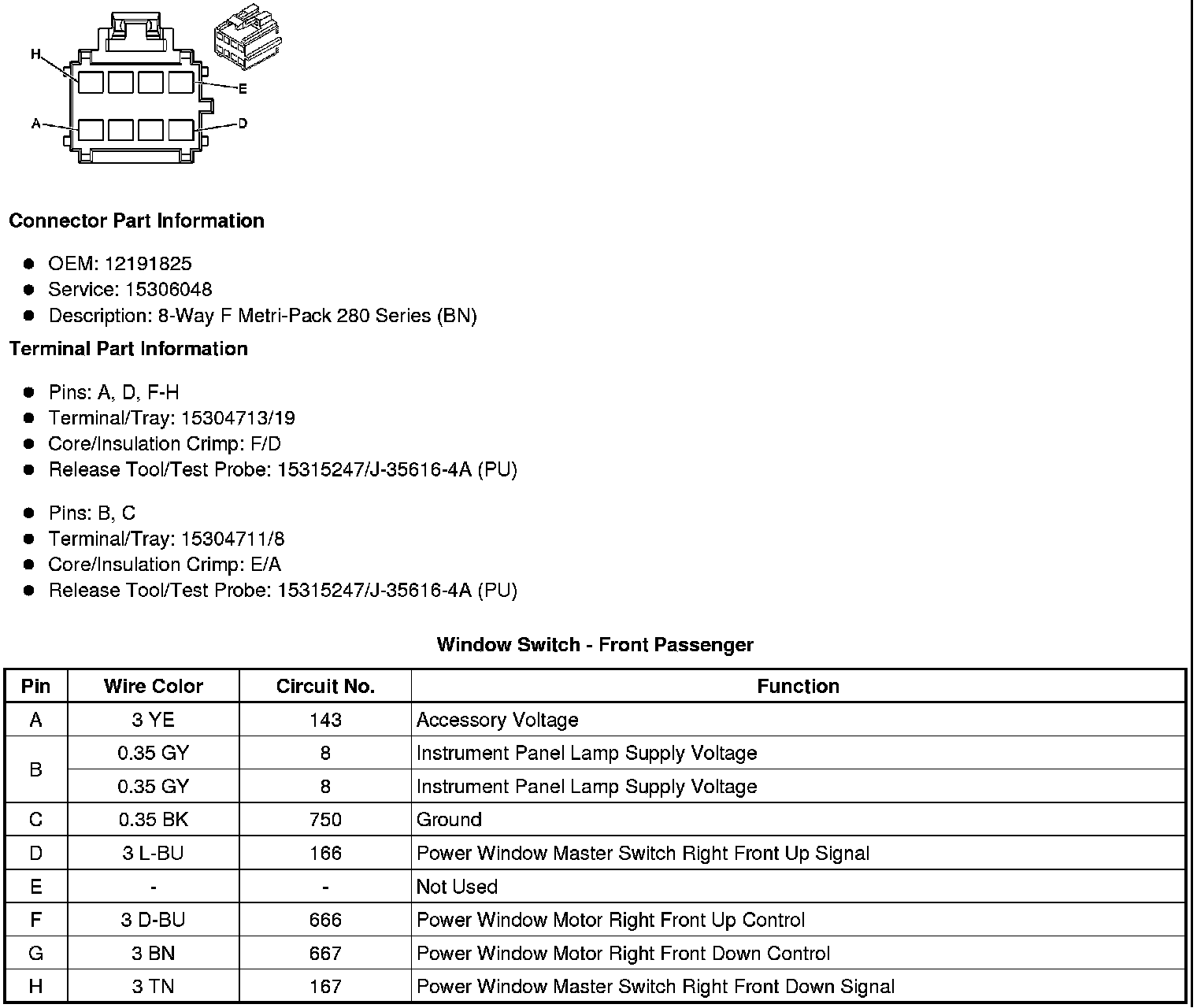

Window Switch - Front Passenger

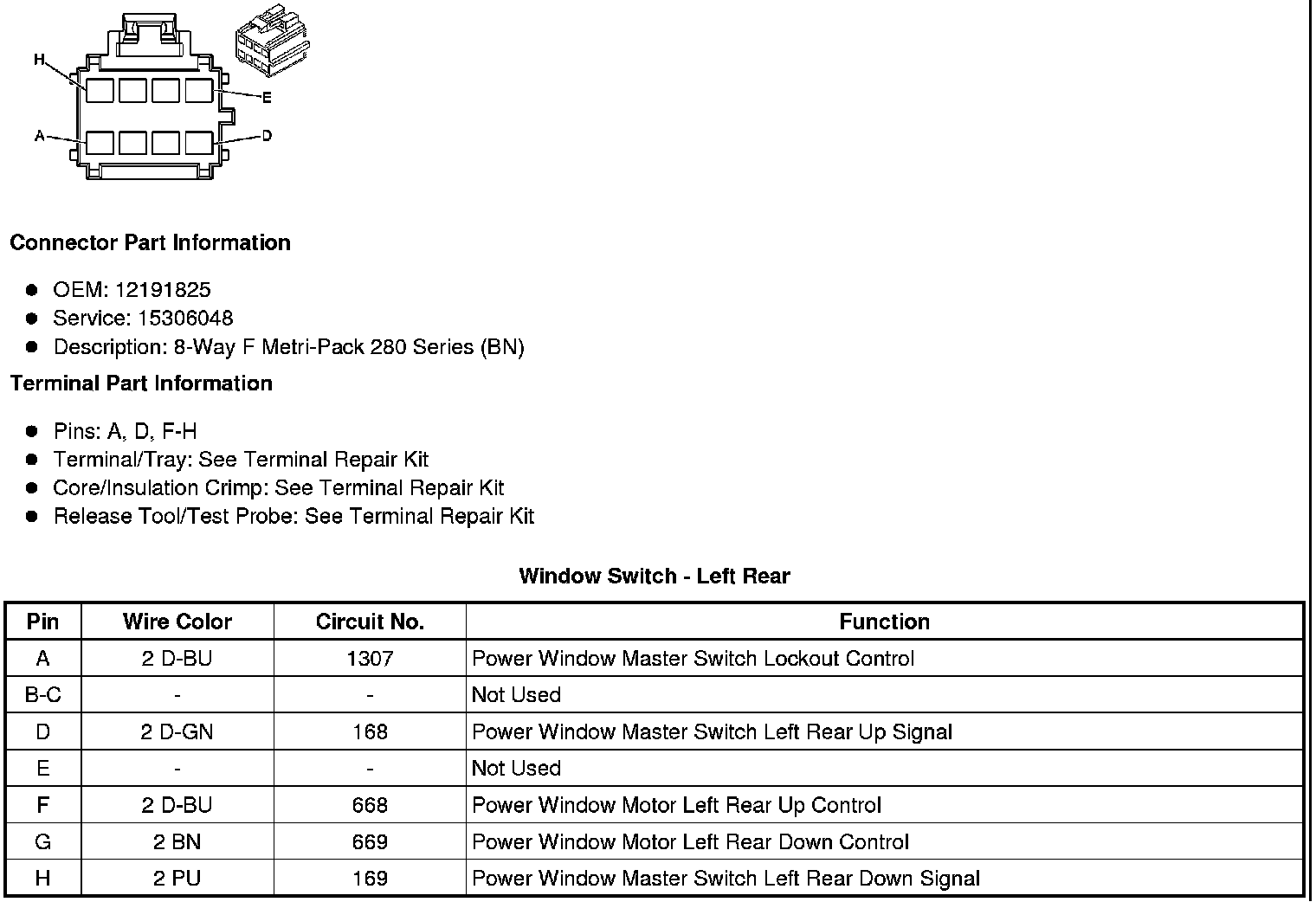

Window Switch - Left Rear

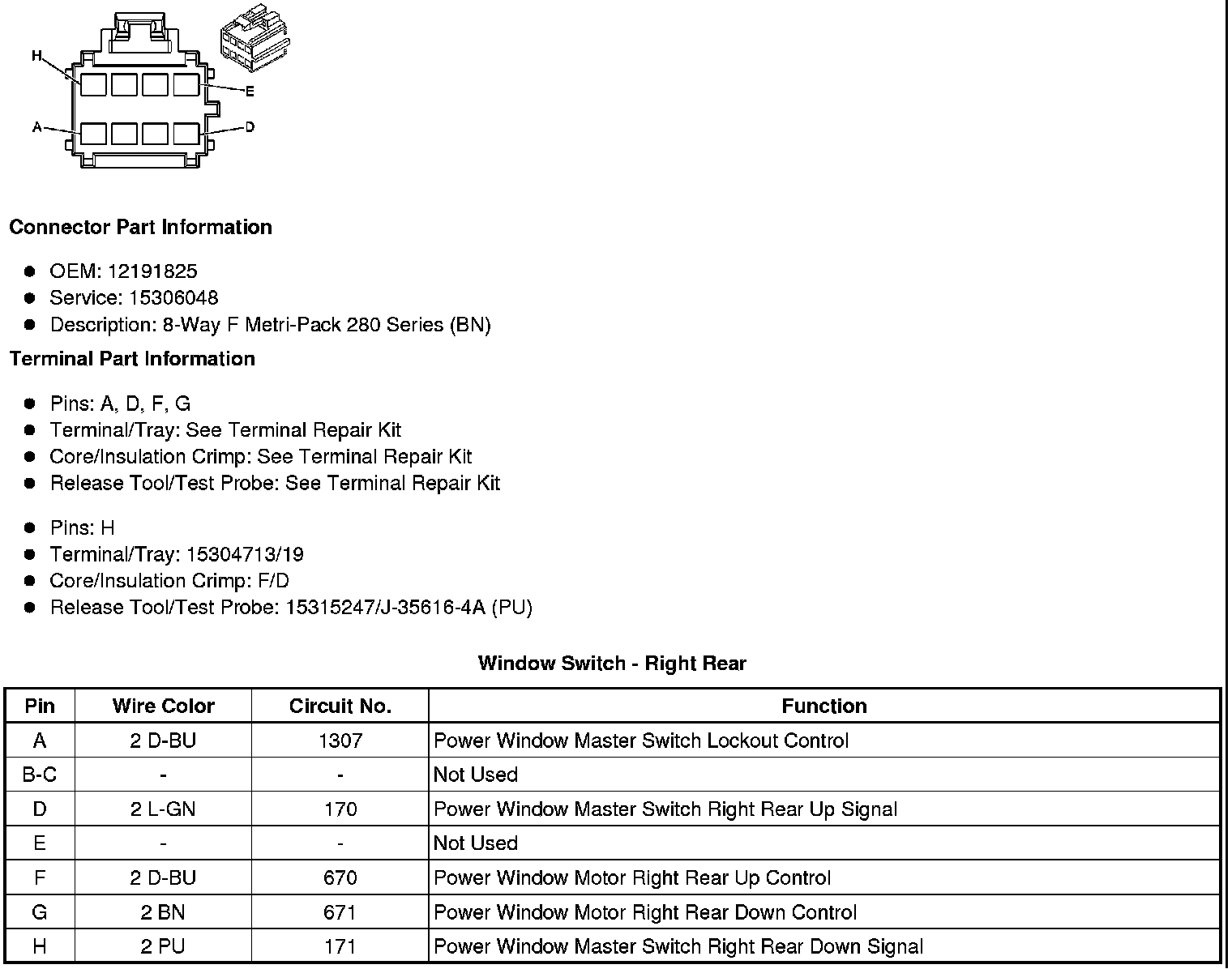

Window Switch - Right Rear
