Home >> Pontiac >> 2008 >> G8 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp

Fog/Driving Lamp

Component Connector End Views

Fog Lamp - Left Front

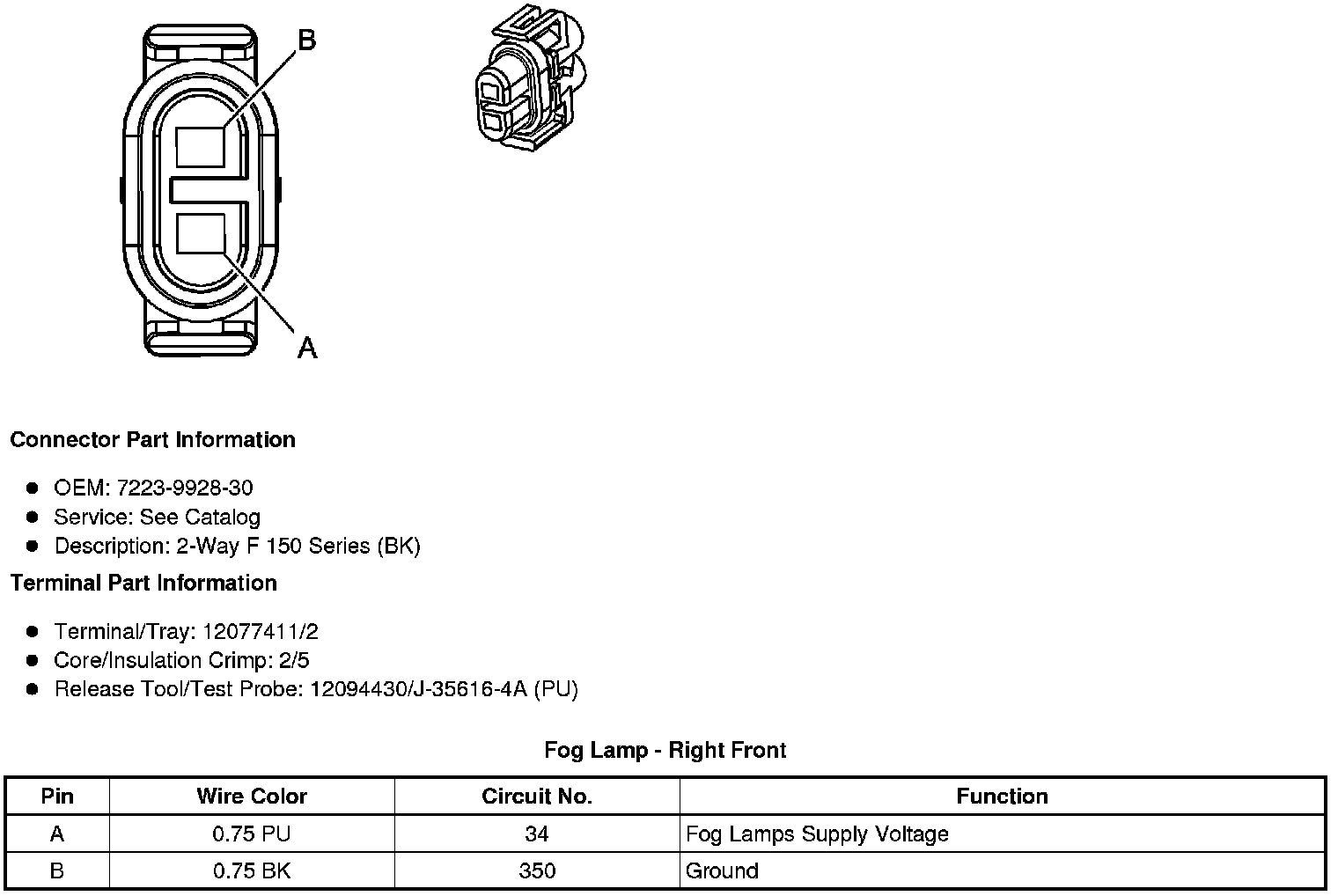

Fog Lamp - Right Front
