Combination Switch



Component Connector End Views

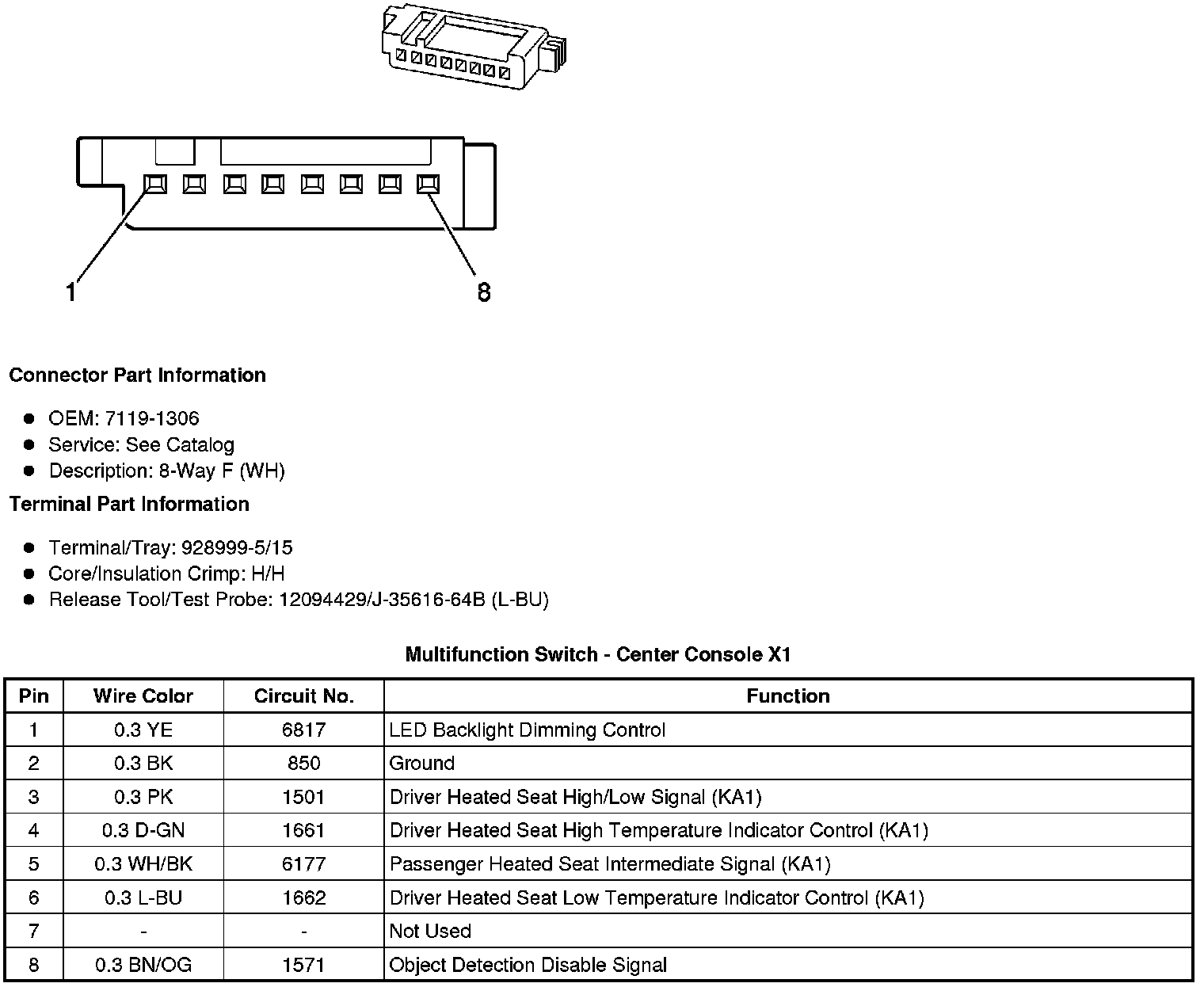

Multifunction Switch - Center Console X1

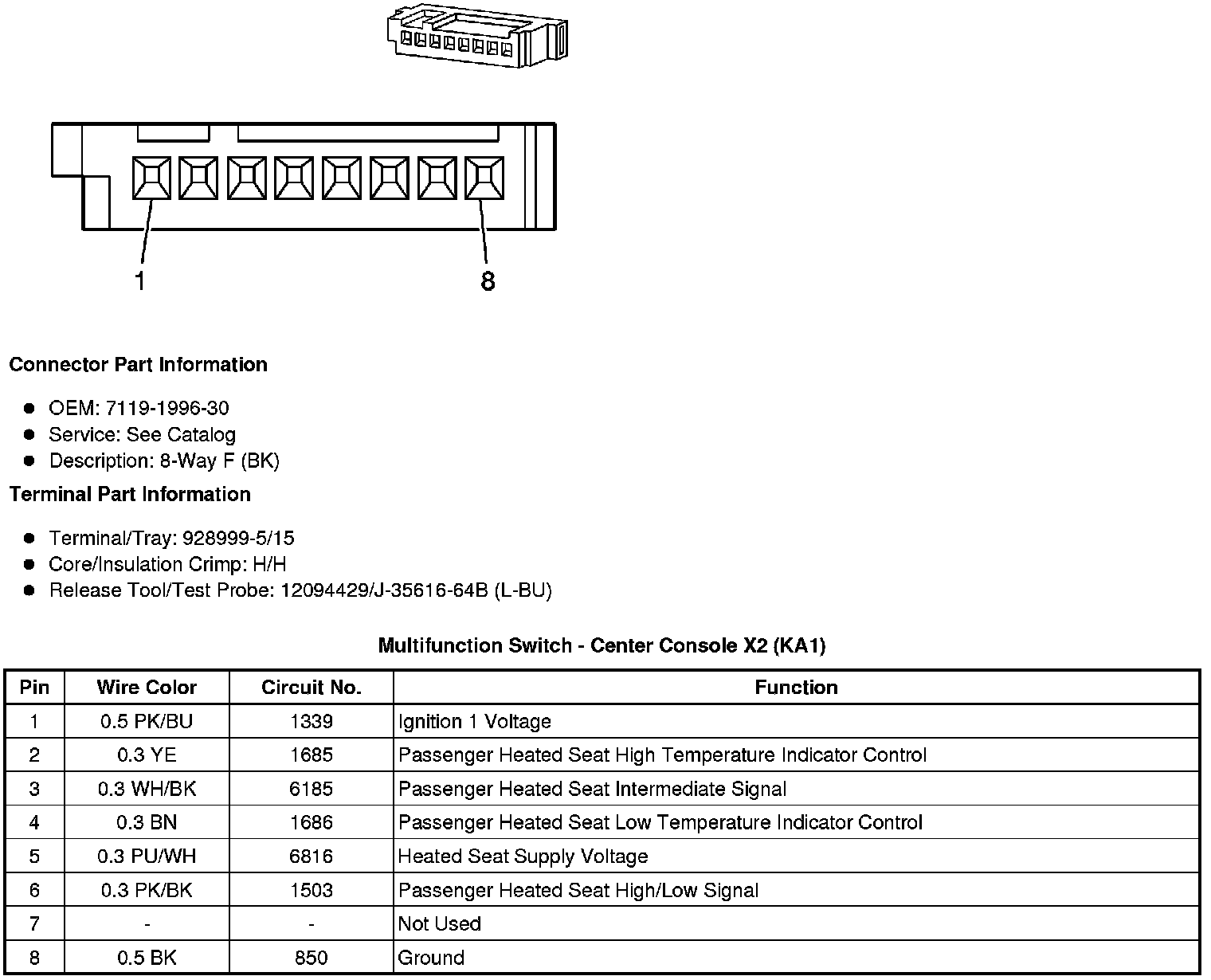

Multifunction Switch - Center Console X2 (KA1)
