Engine Control Module

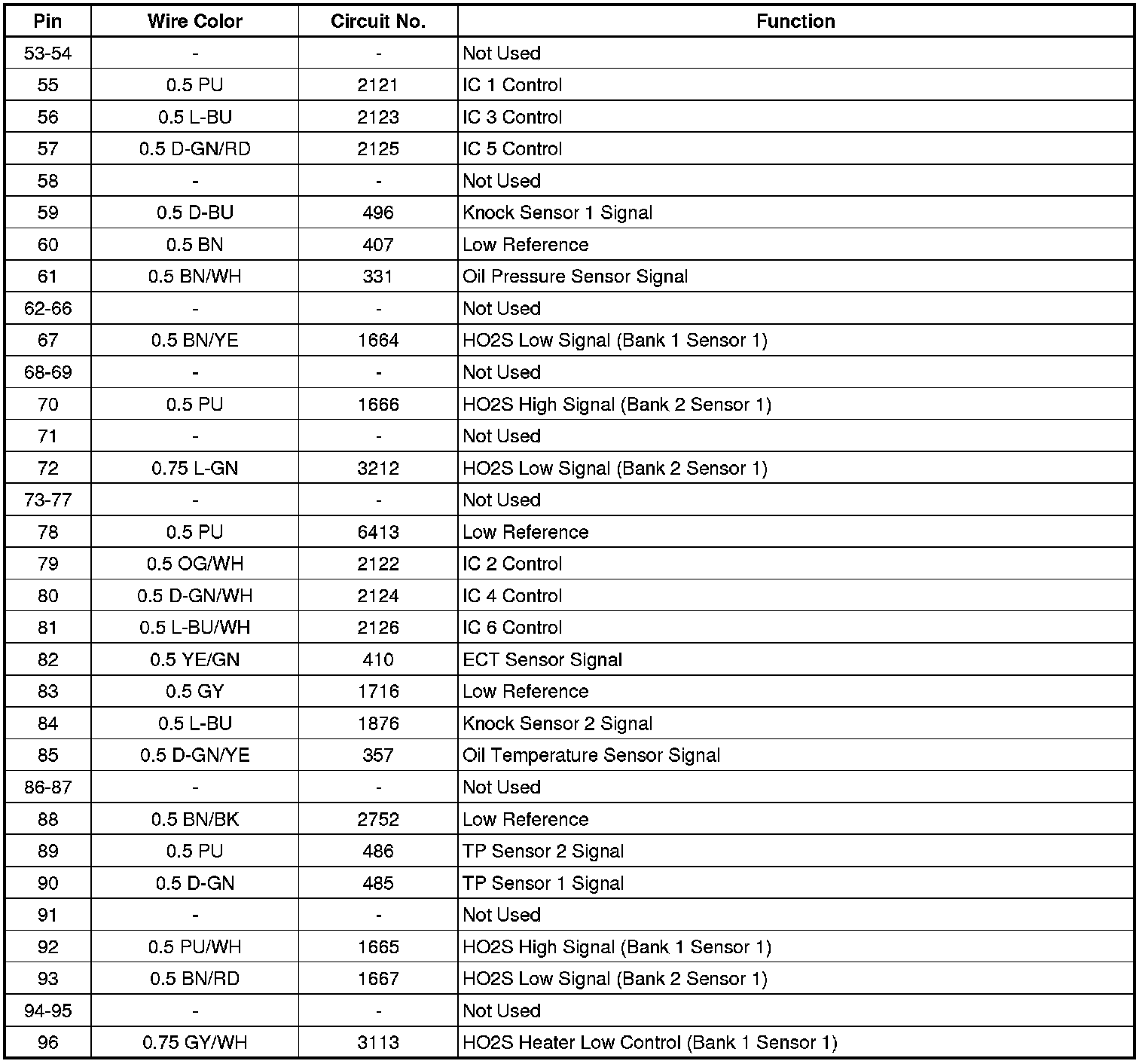

Component Connector End Views

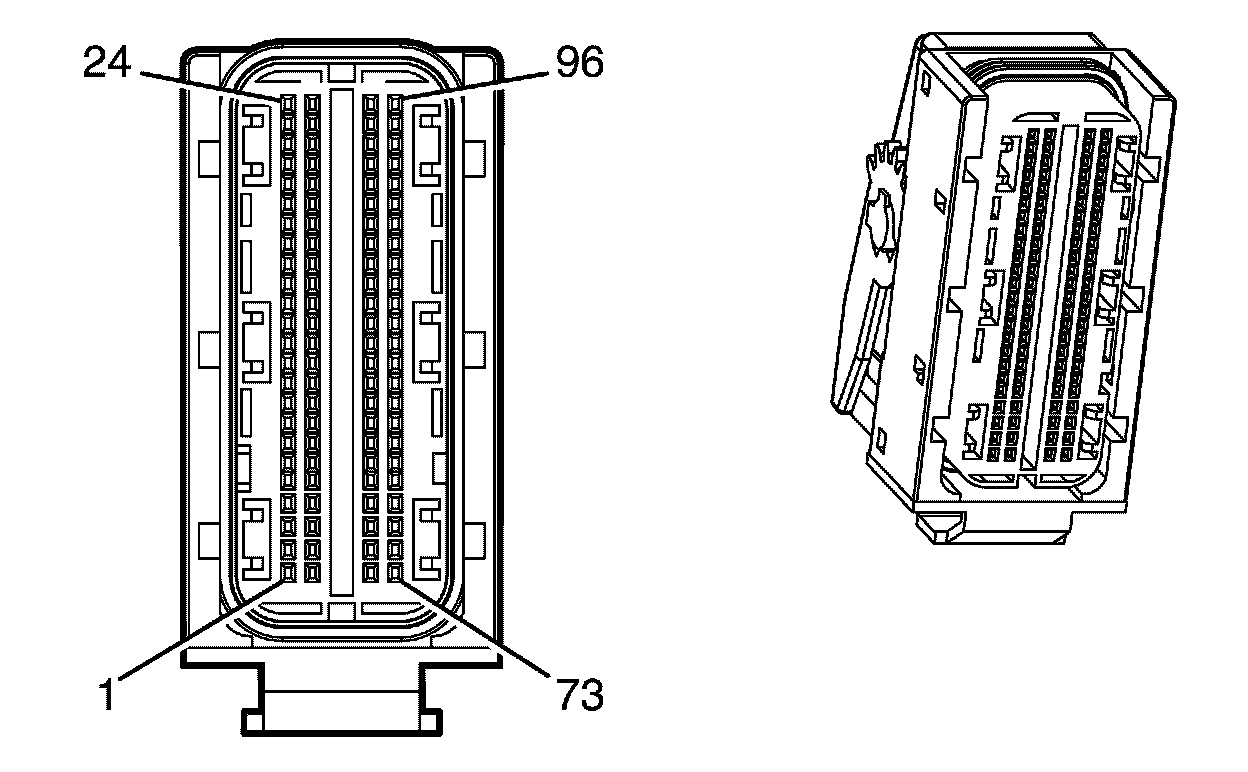

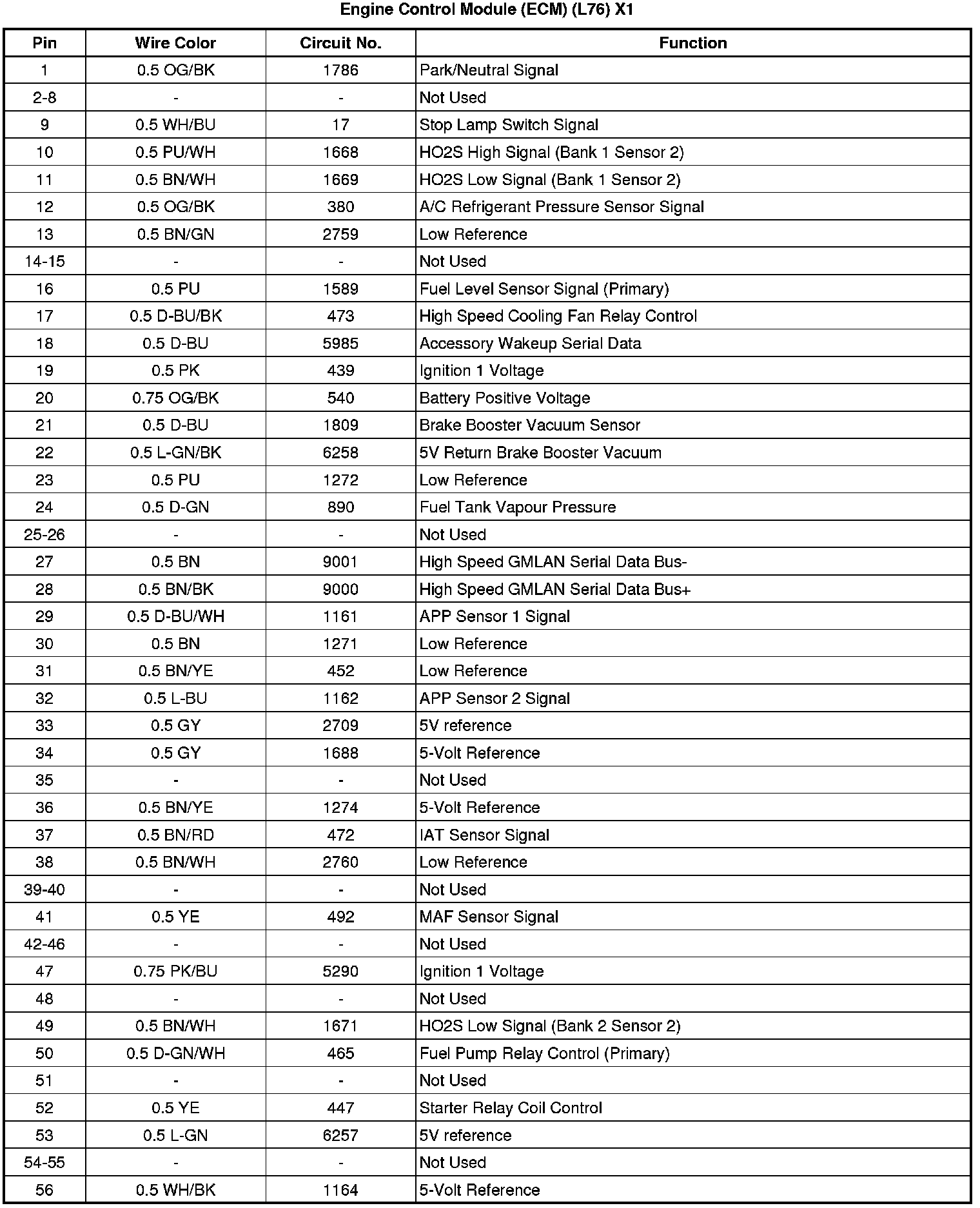

Engine Control Module (ECM) (L76) X1

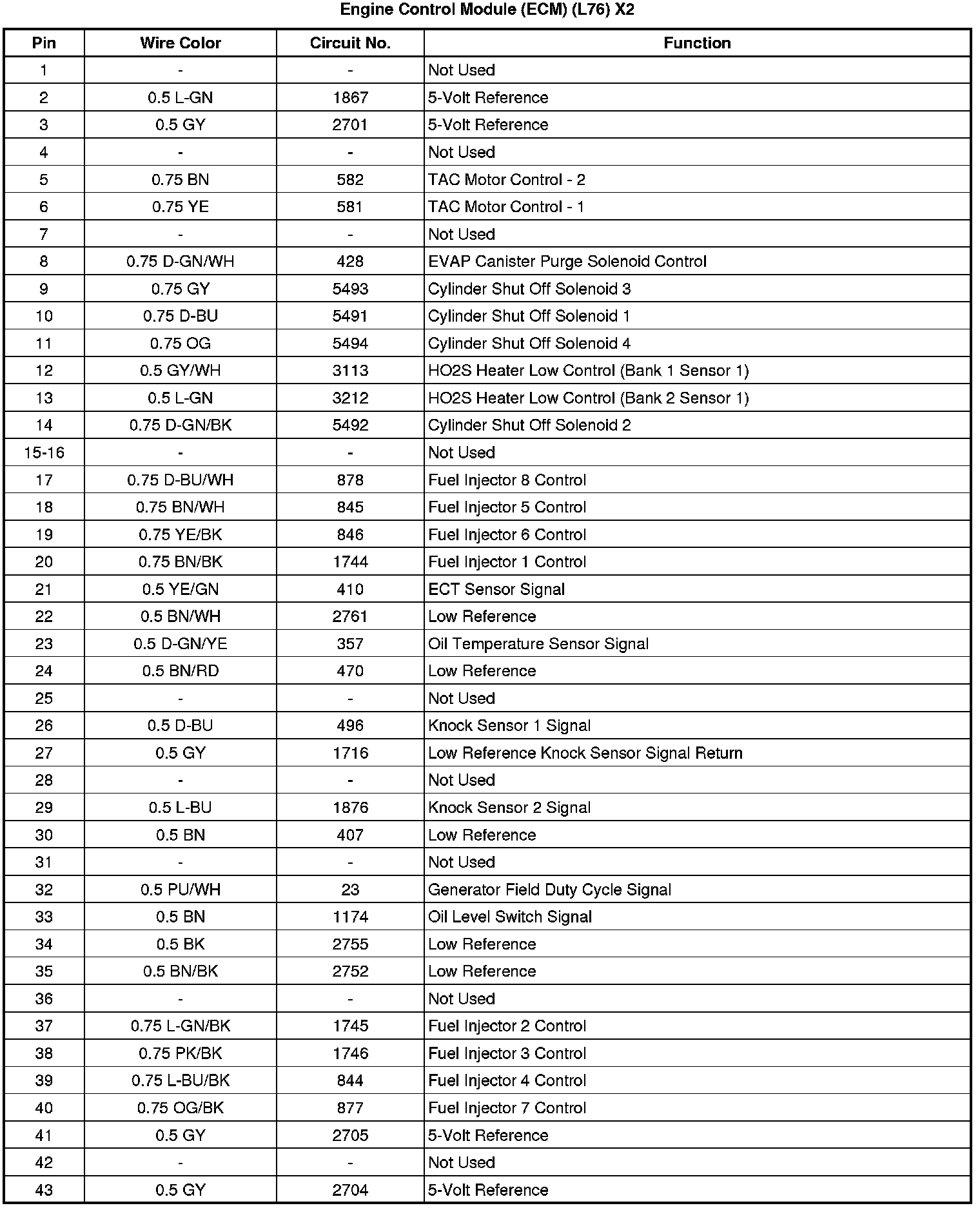

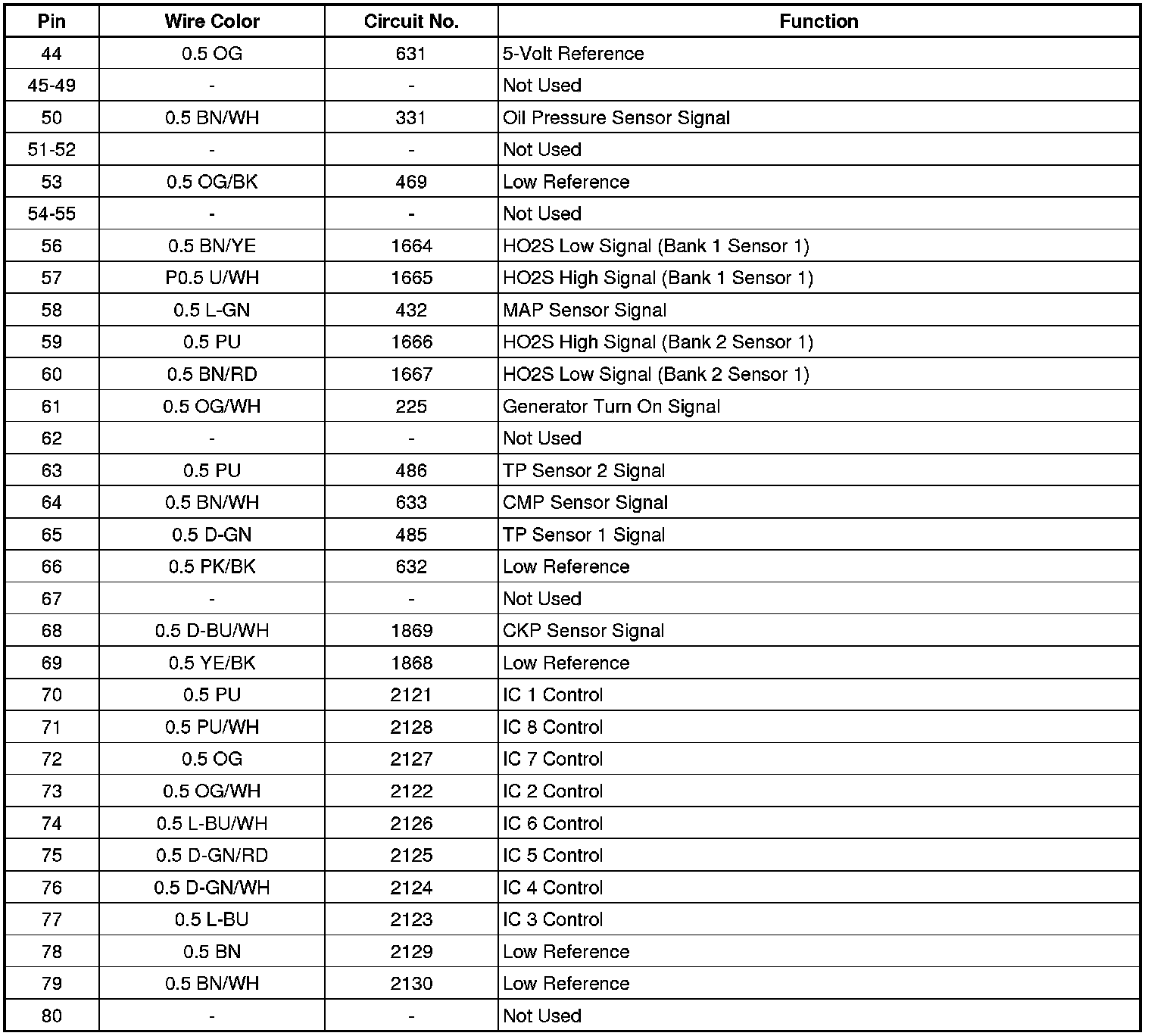

Engine Control Module (ECM) (L76) X2

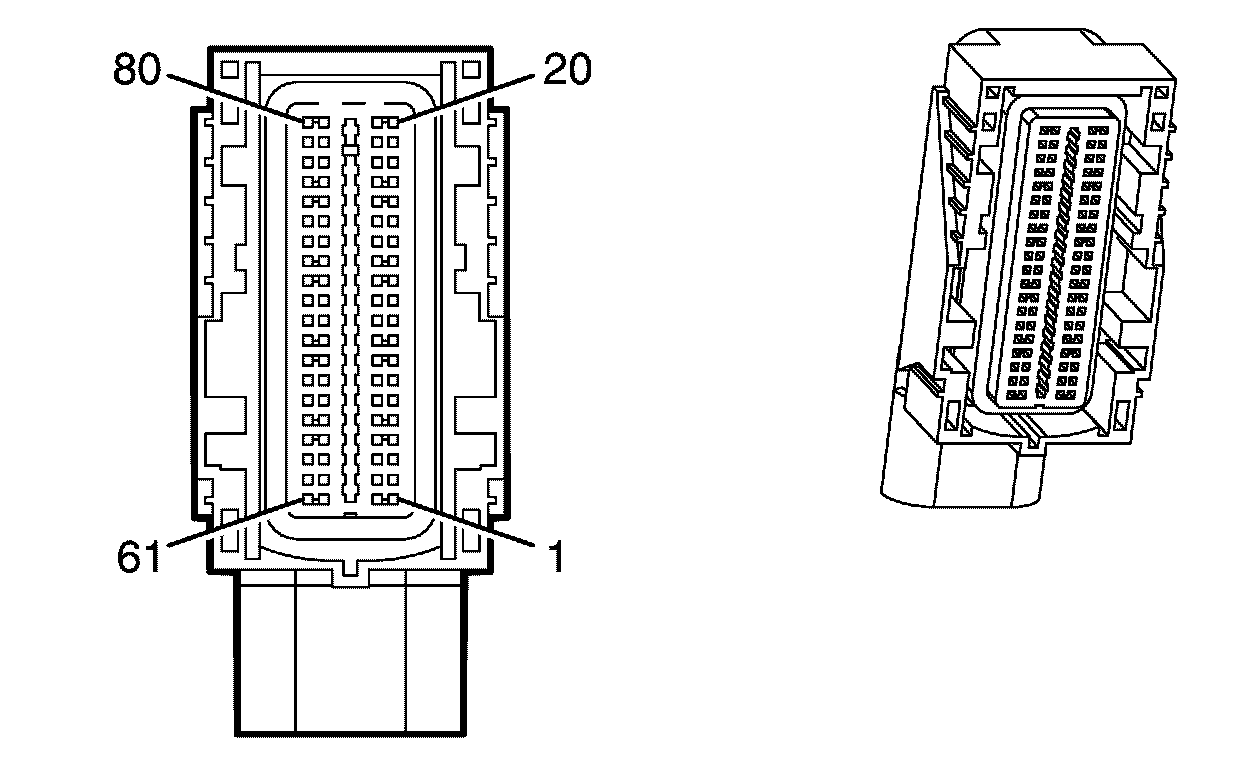

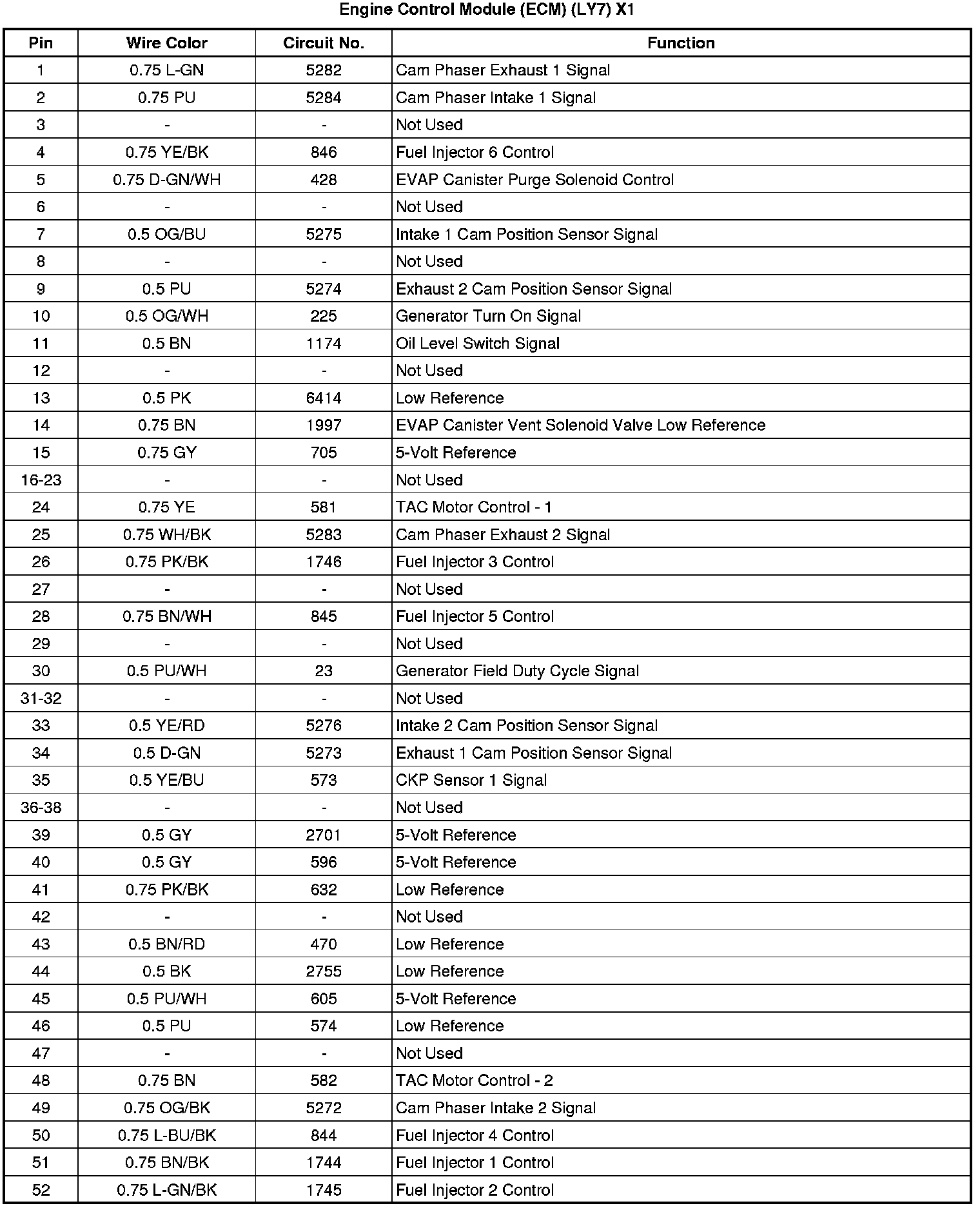

Engine Control Module (ECM) (LY7) X1

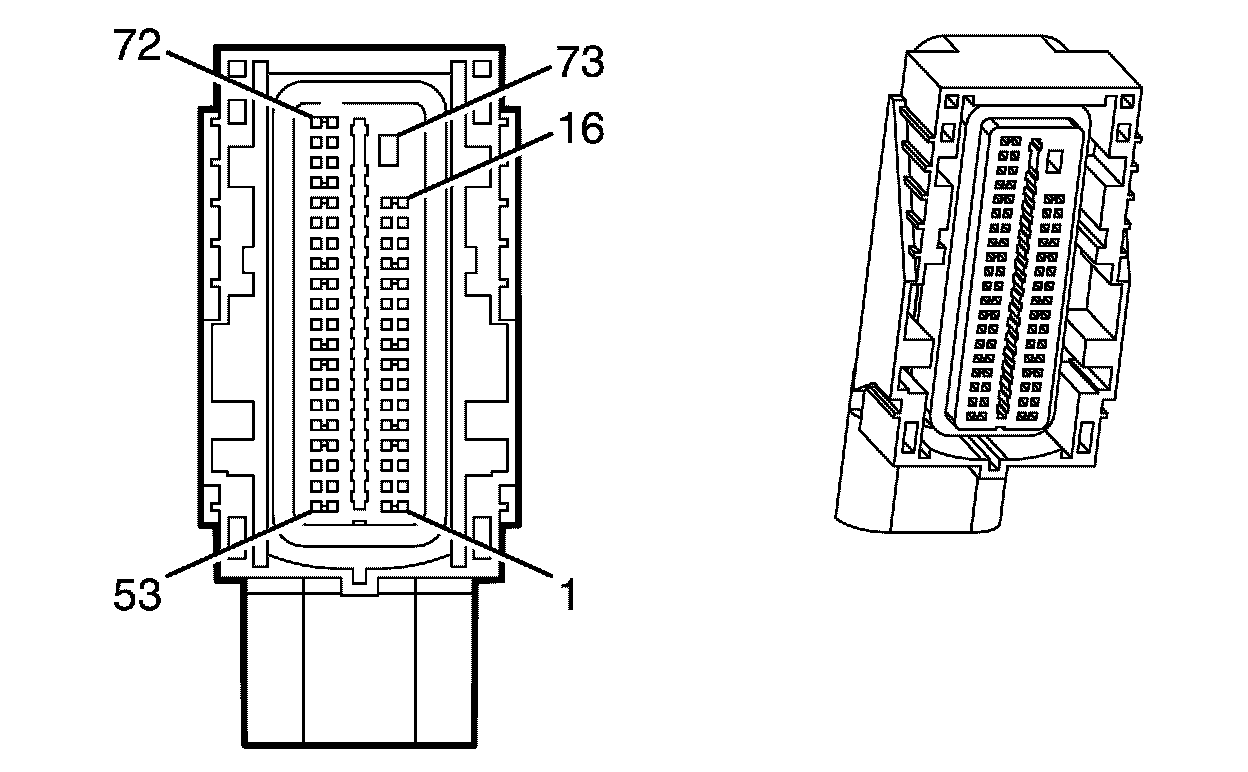

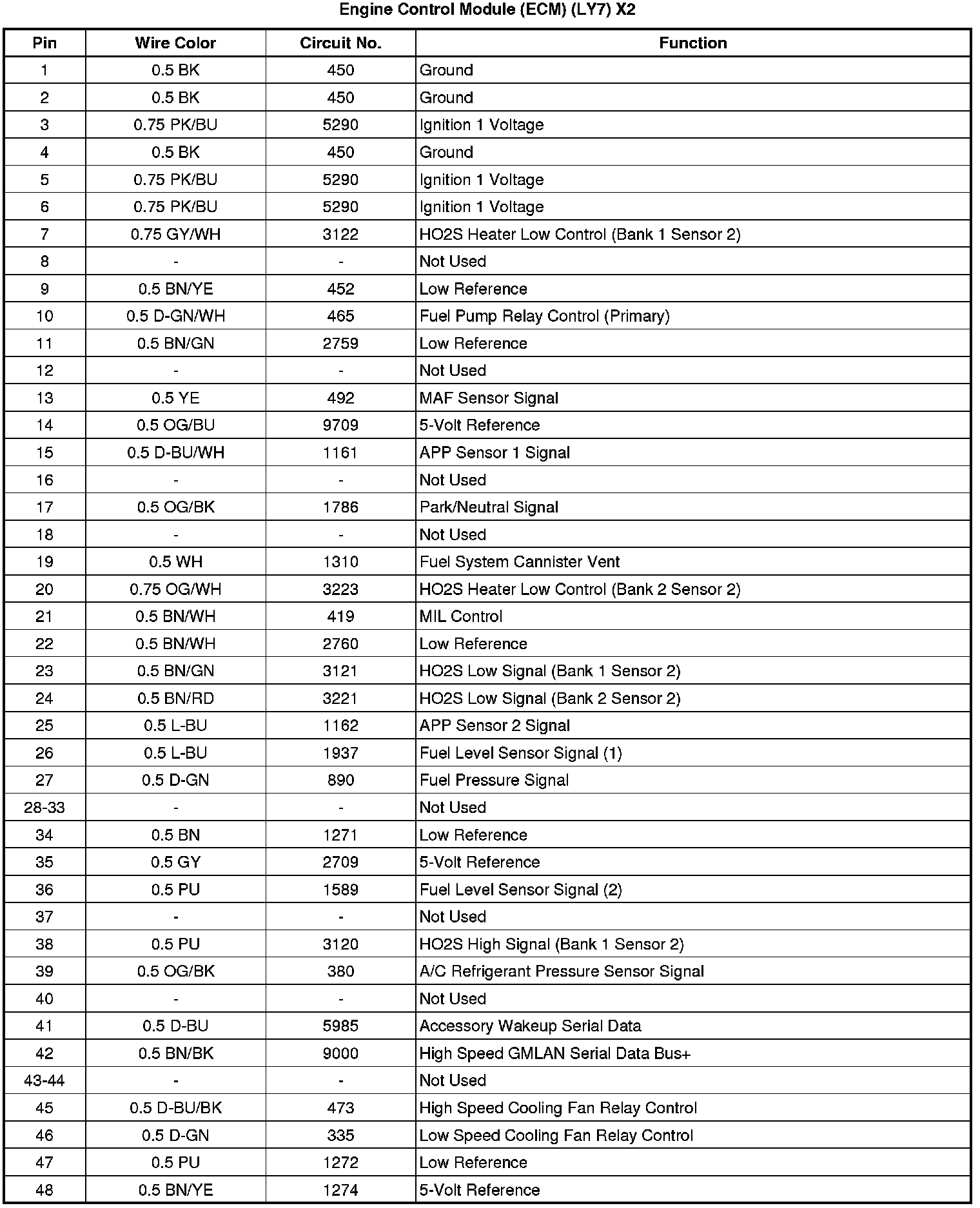

Engine Control Module (ECM) (LY7) X2
