Installation Procedure

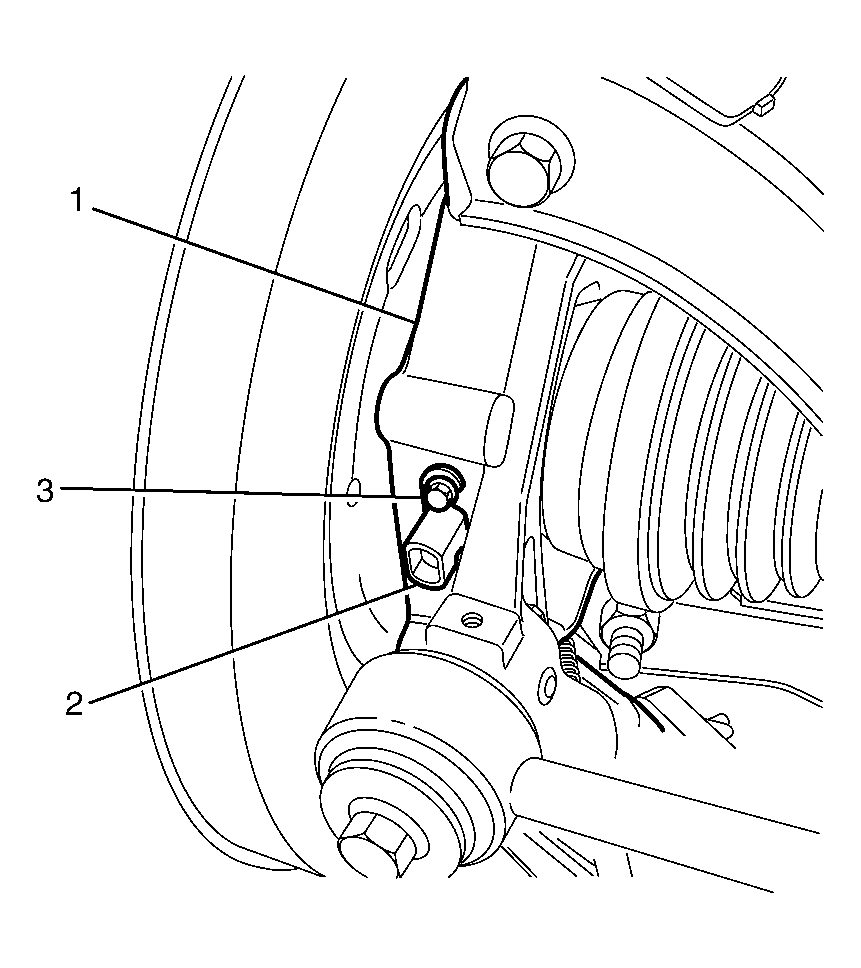

    Fig 1: Identifying Wheel Speed Sensor
    GM1943659Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Safety Glasses Caution .
    CAUTION: Refer to Vehicle Lifting Caution .
    CAUTION: Refer to Brake Dust Caution .
  1. Install the wheel speed sensor (2) to the knuckle (1).
    2. NOTE: Refer to Fastener Notice .
  2. Install the wheel speed sensor to knuckle retaining bolt (3).

    Tighten:  Tighten the bolt to 7 Nm (62 lb in).

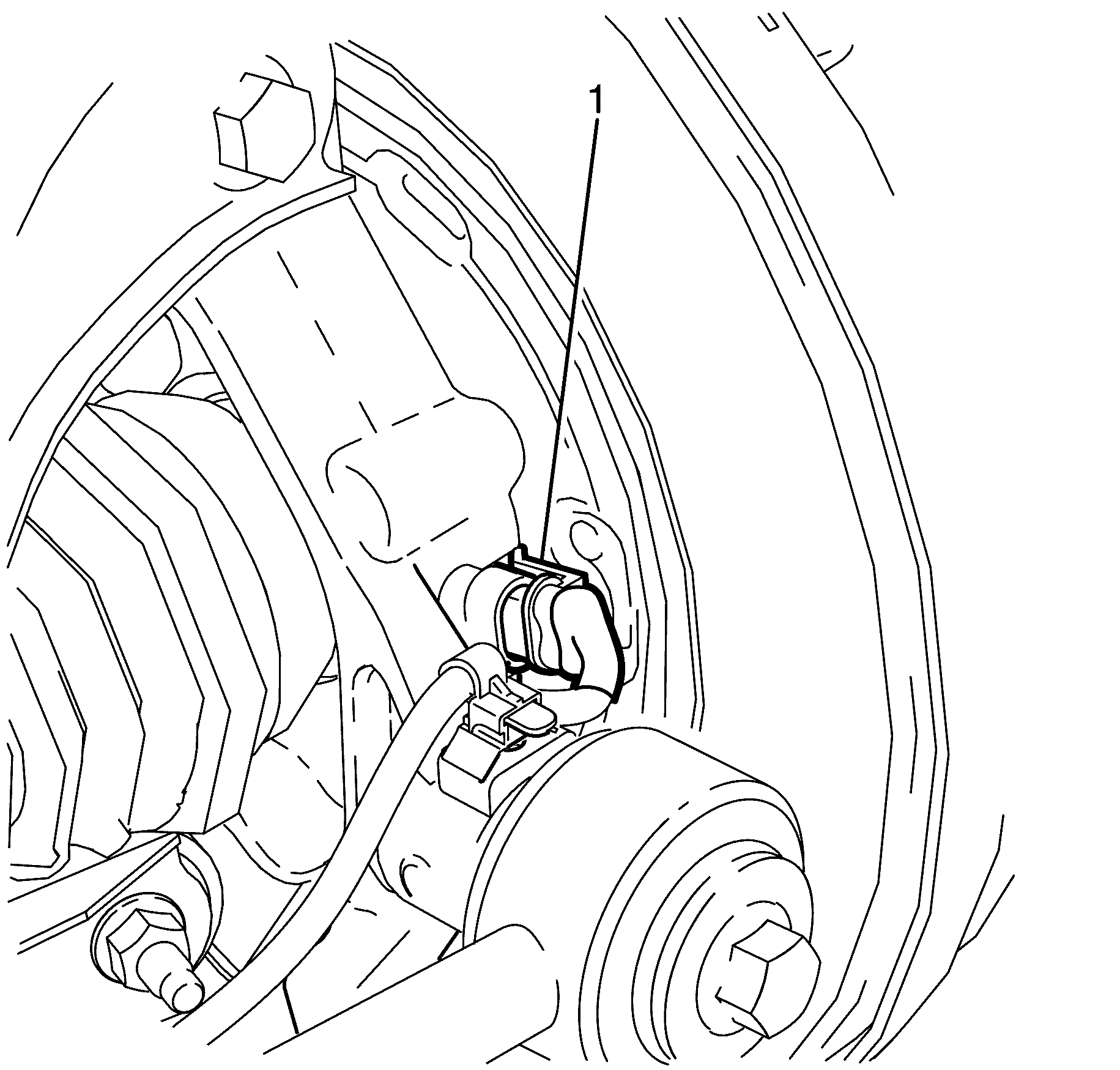

    3. Fig 2: Identifying Wheel Speed Sensor Jumper Harness Electrical Connector
    GM1943660Courtesy of GENERAL MOTORS CORP.
  3. Connect the wheel speed sensor jumper harness electrical connector (1).
  4. Install the rear wheels. Refer to Tire and Wheel Removal and Installation .
  5. Lower the vehicle.
