Home >> Pontiac >> 2008 >> G6 L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Rear Fuse Block

Rear Fuse Block

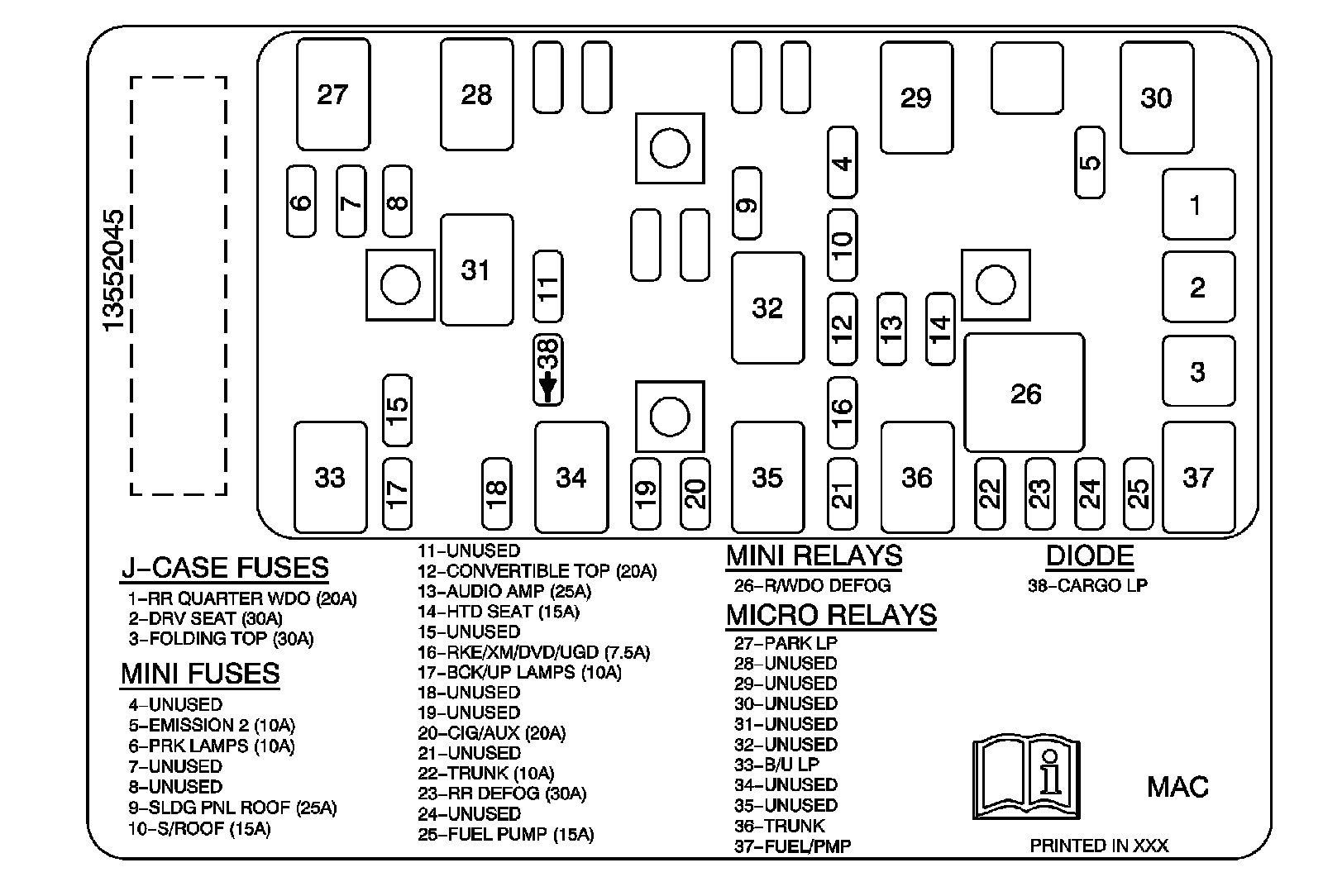

Electrical Center Identification Views

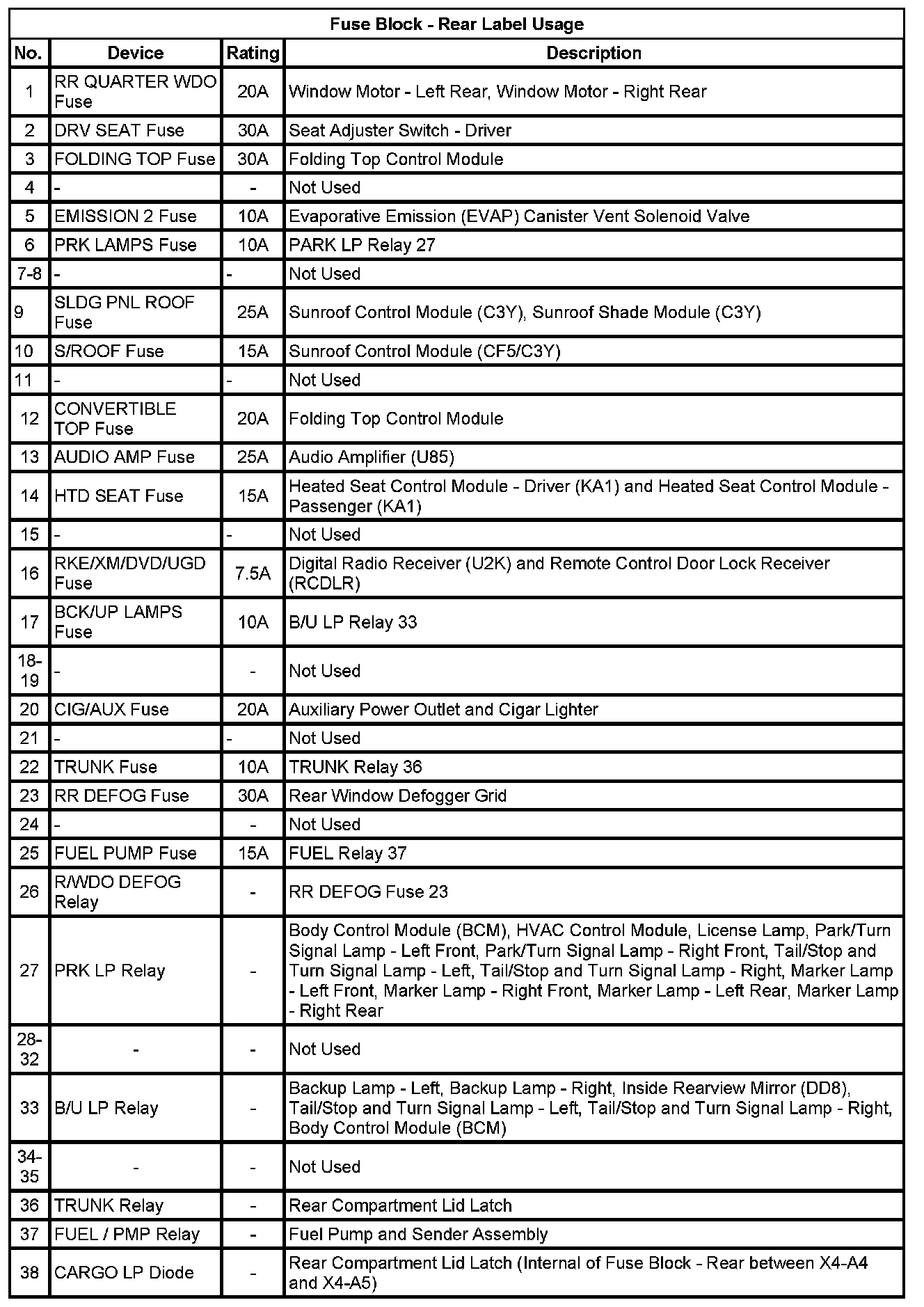

Fuse Block - Rear Label Usage
