Home >> Pontiac >> 2007 >> Vibe L4-1.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Fuse Block Views >> Instrument Panel Fuse Block (Bottom)

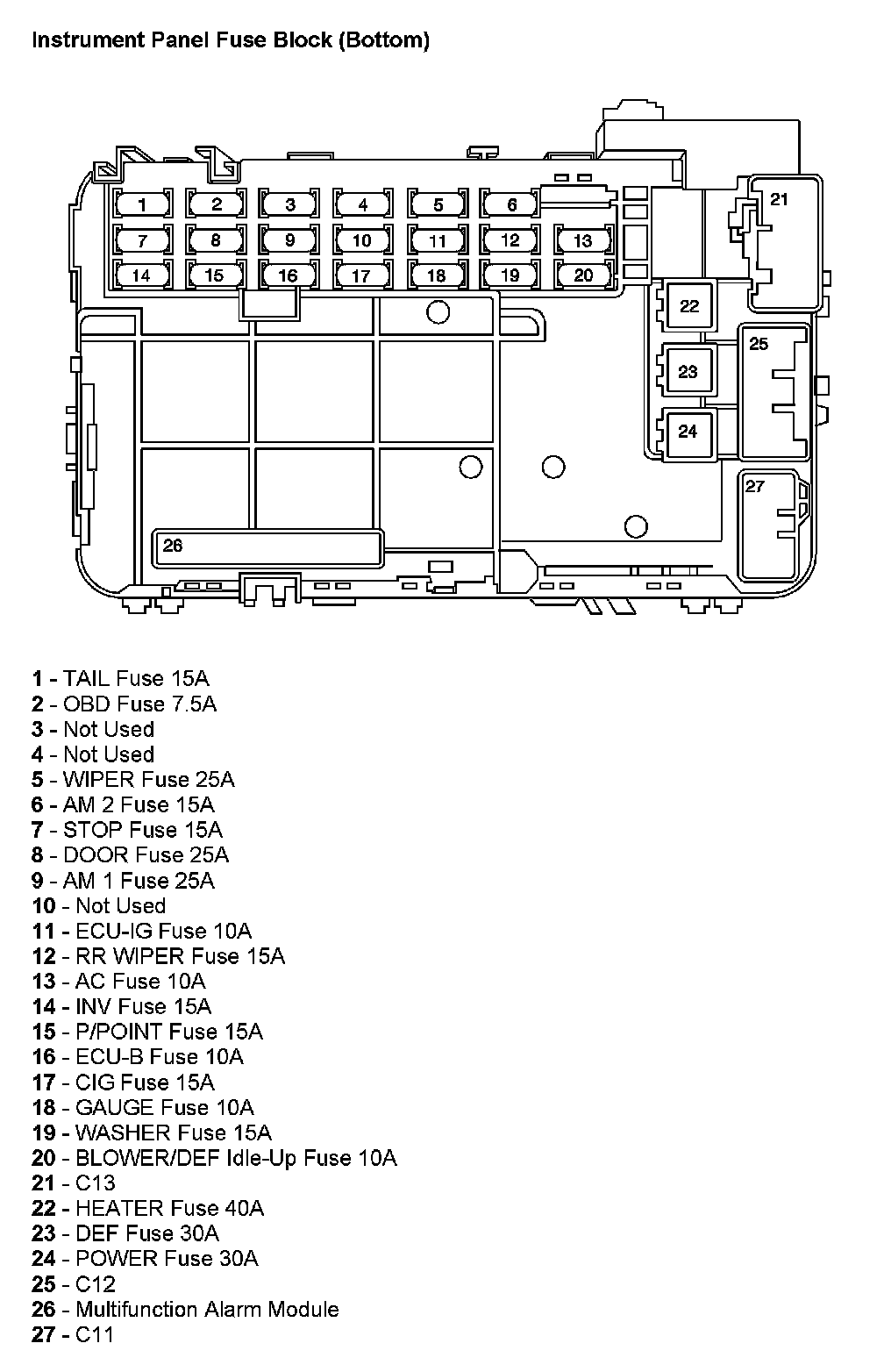

Instrument Panel Fuse Block (Bottom)

Instrument Panel Fuse Block (Bottom):
