Pontiac
>>
2007
>>
Vibe L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

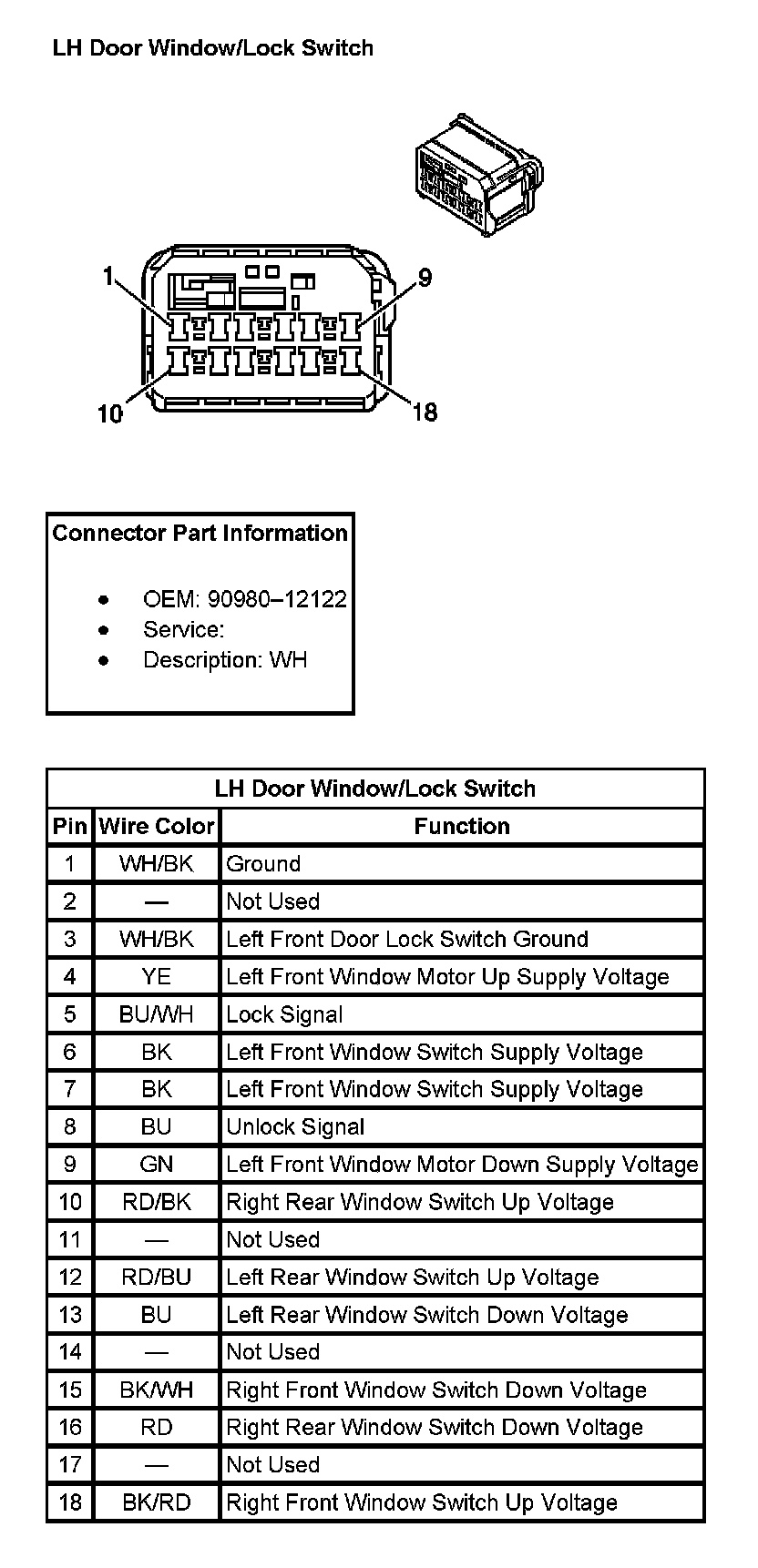

LH Door Window/Lock Switch:
LH Rear Window Switch:
RH Front Window Switch:
RH Rear Window Switch:
