Pontiac
>>
2007
>>
Vibe L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
Blower Motor

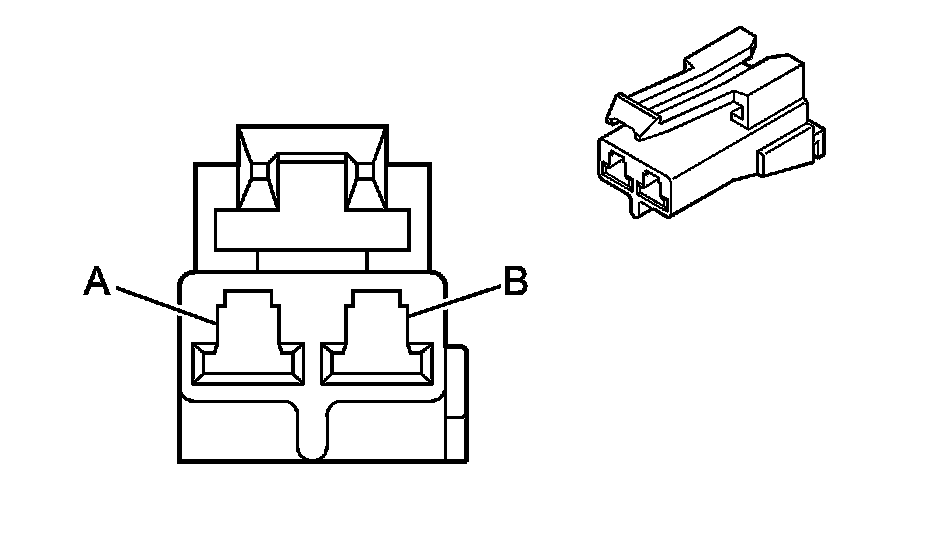

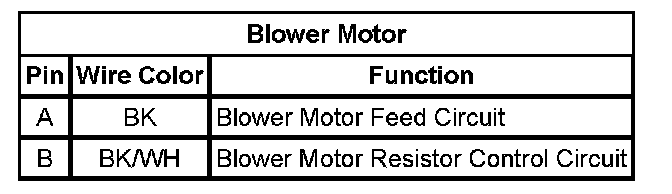

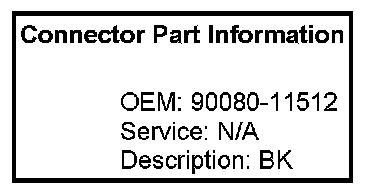

HVAC Connector End Views
Blower Motor
