Transmission Control Module Removal



Transmission Control Module Removal

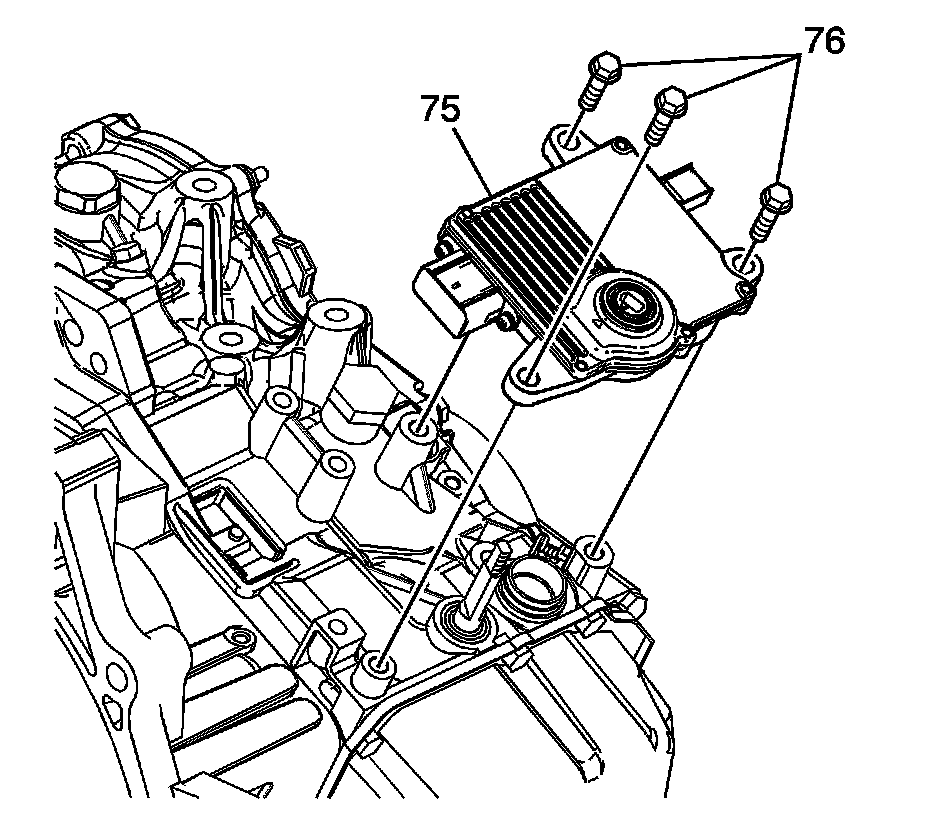

1. Remove the three TCM bolts (76).
2. Remove the TCM (75) by sliding off of the manual shaft detent lever assembly.
