Home >> Pontiac >> 2007 >> Torrent AWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor

Wiper Motor

Windshield Wiper Motor:

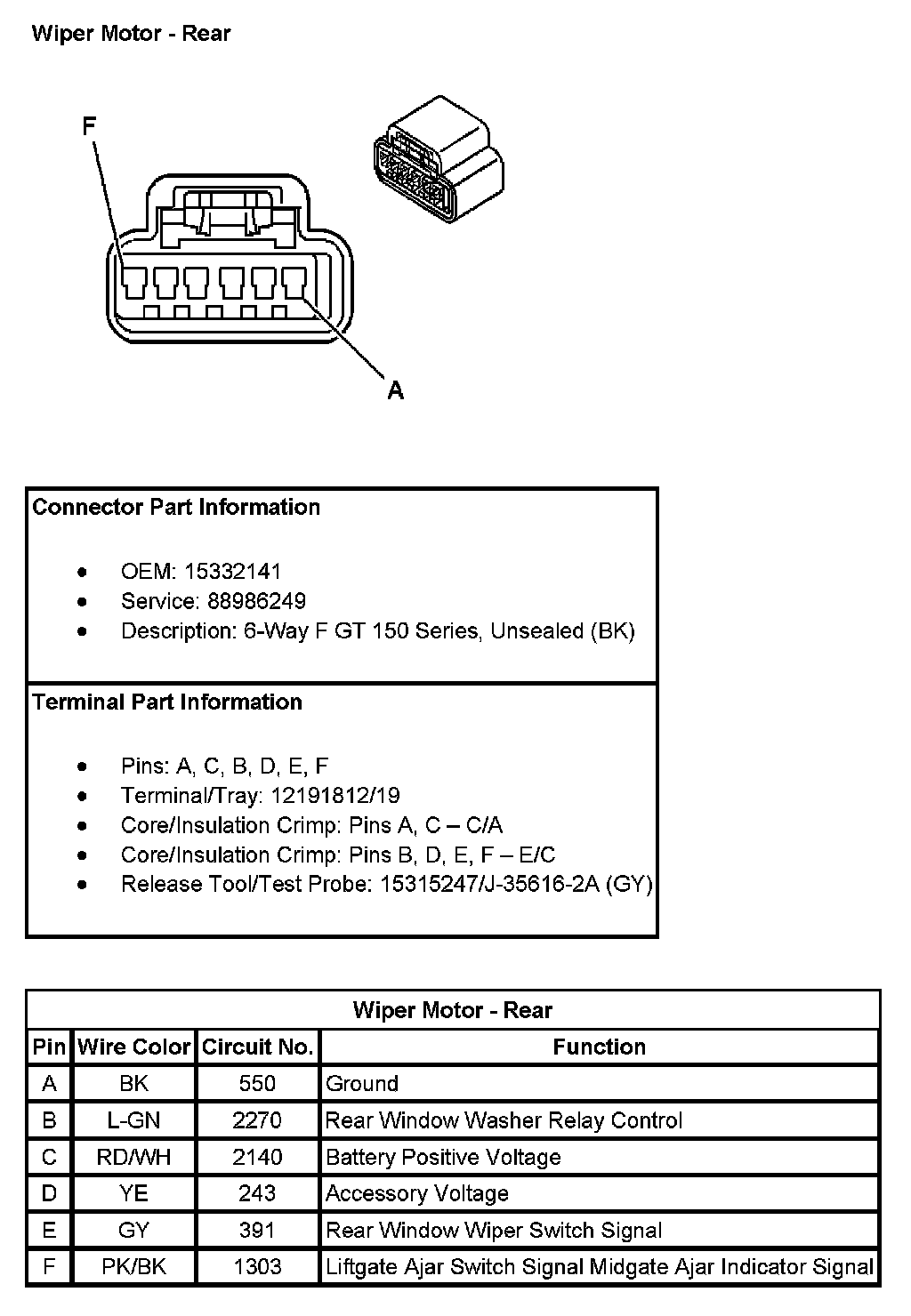

Wiper Motor - Rear:
