Home >> Pontiac >> 2007 >> Torrent AWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sunroof / Moonroof Module

Sunroof / Moonroof Module

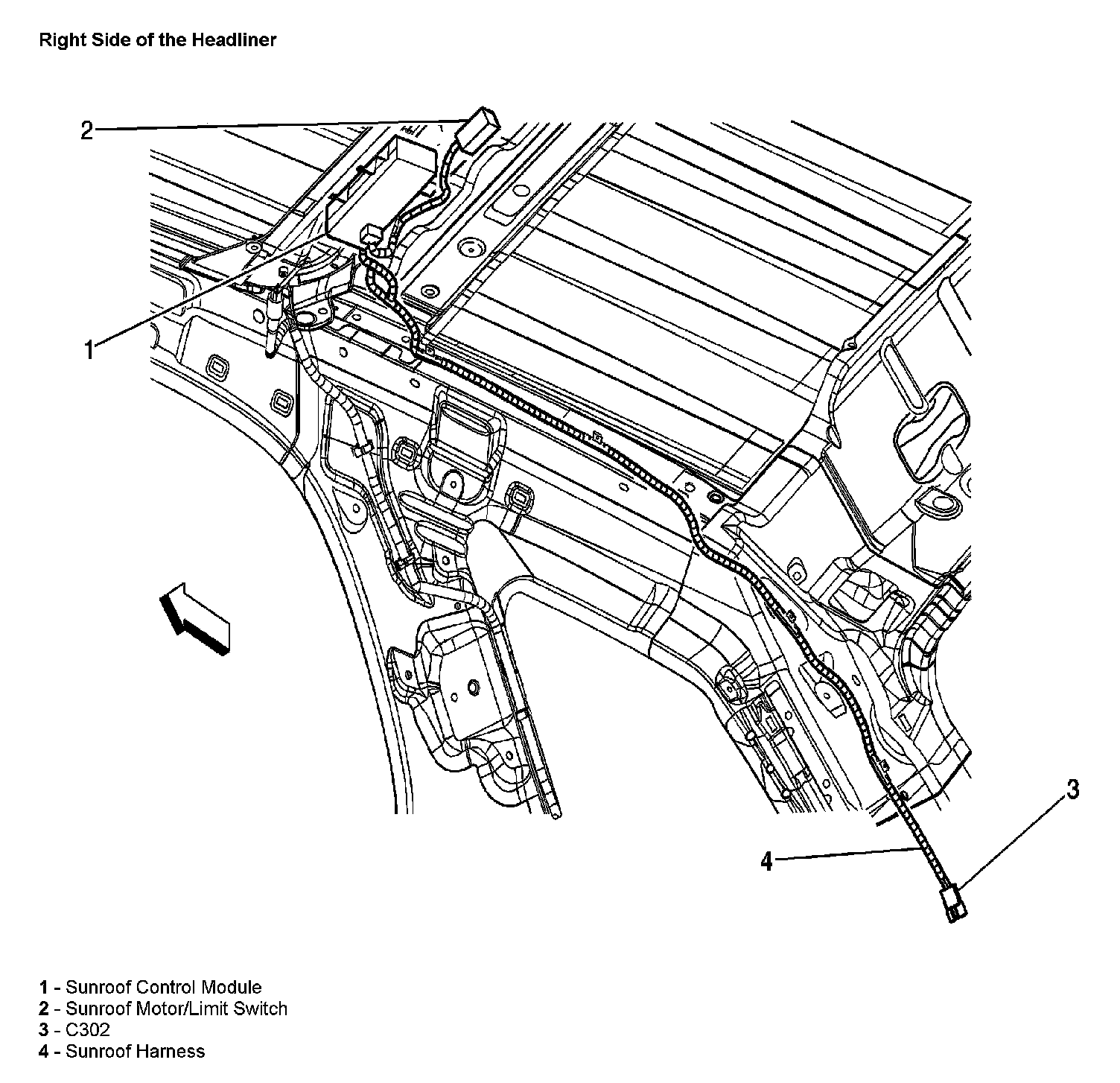

Right Side Of The Headliner:
