Home >> Pontiac >> 2007 >> Torrent AWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Branching Point

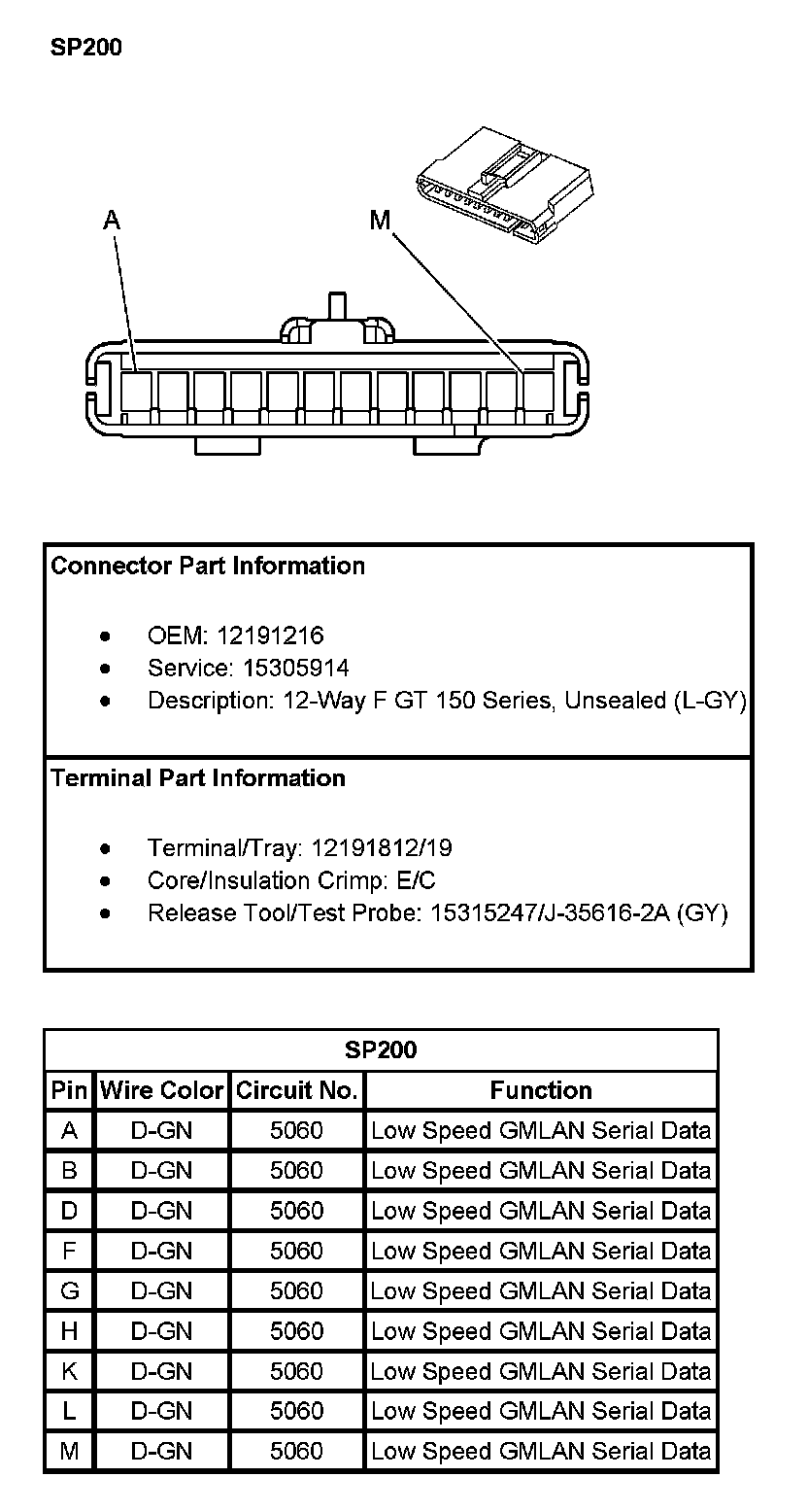

Branching Point

SP200:
