Home >> Pontiac >> 2007 >> Torrent AWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> EGR Valve

EGR Valve

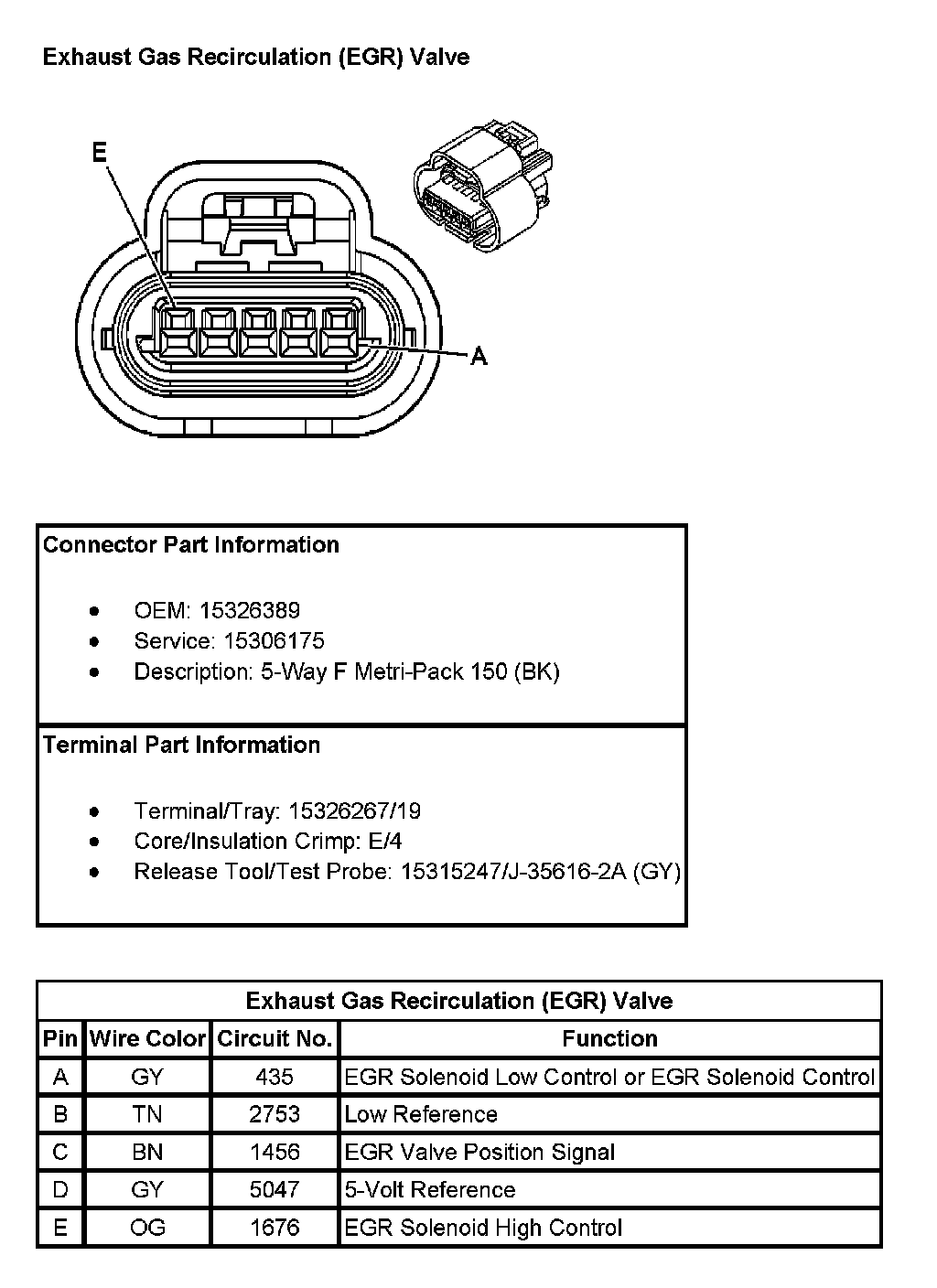

Exhaust Gas Recirculation (EGR) Valve:
