Air Bag Control Module



SIR Connector End Views

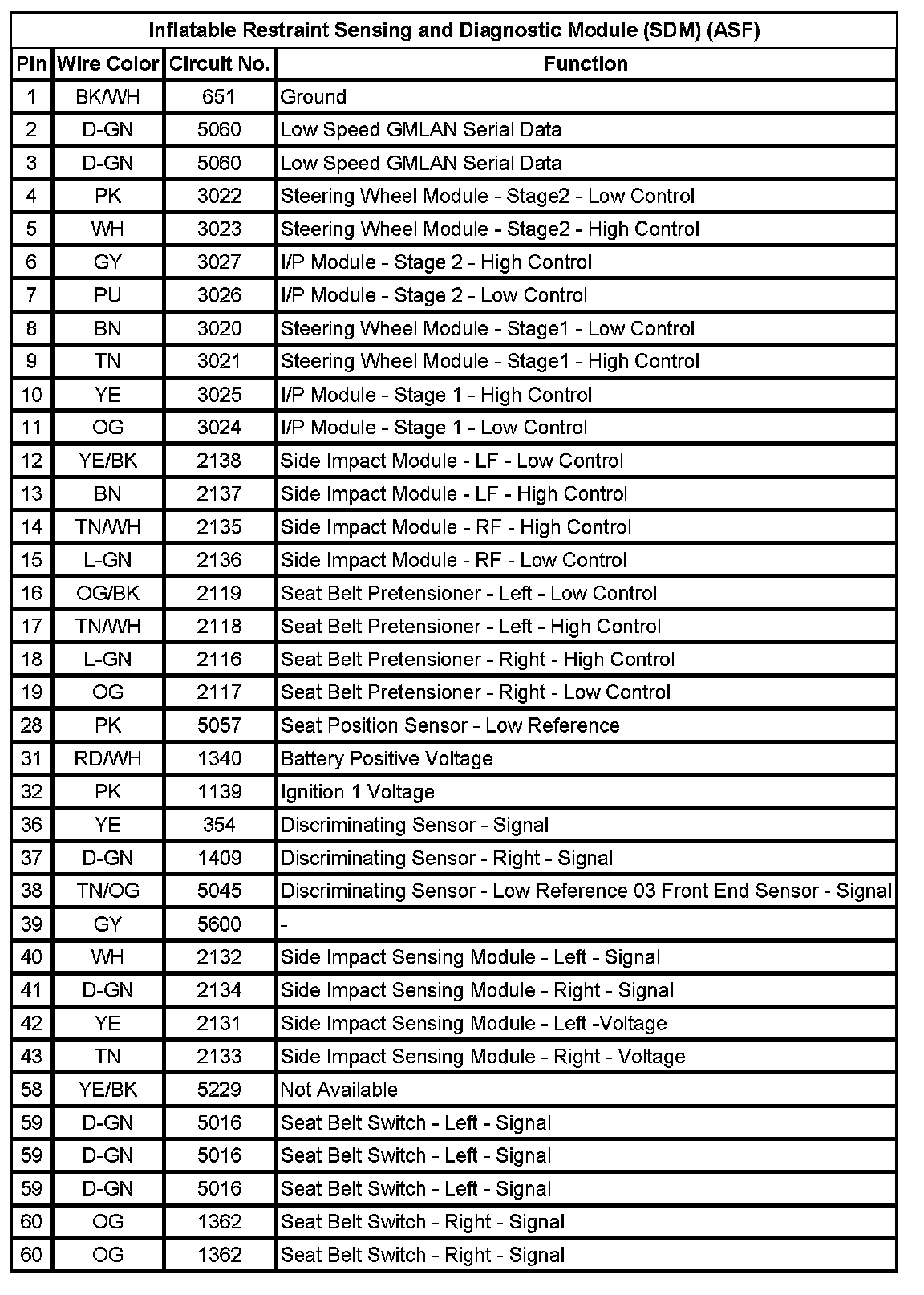

Inflatable Restraint Sensing and Diagnostic Module (SDM) (ASF)

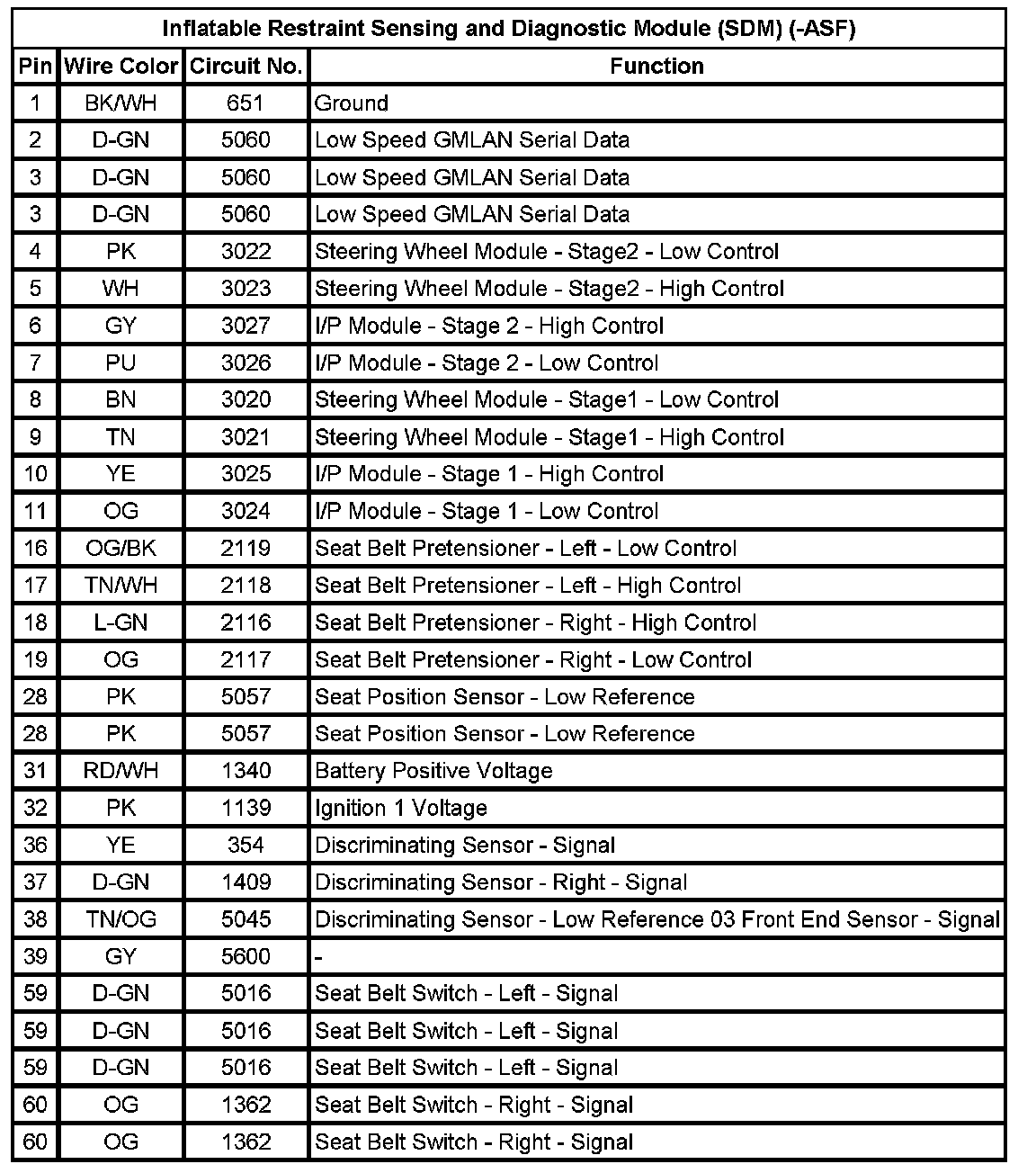

Inflatable Restraint Sensing and Diagnostic Module (SDM) (-ASF)
