Home >> Pontiac >> 2007 >> Grand Prix V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor

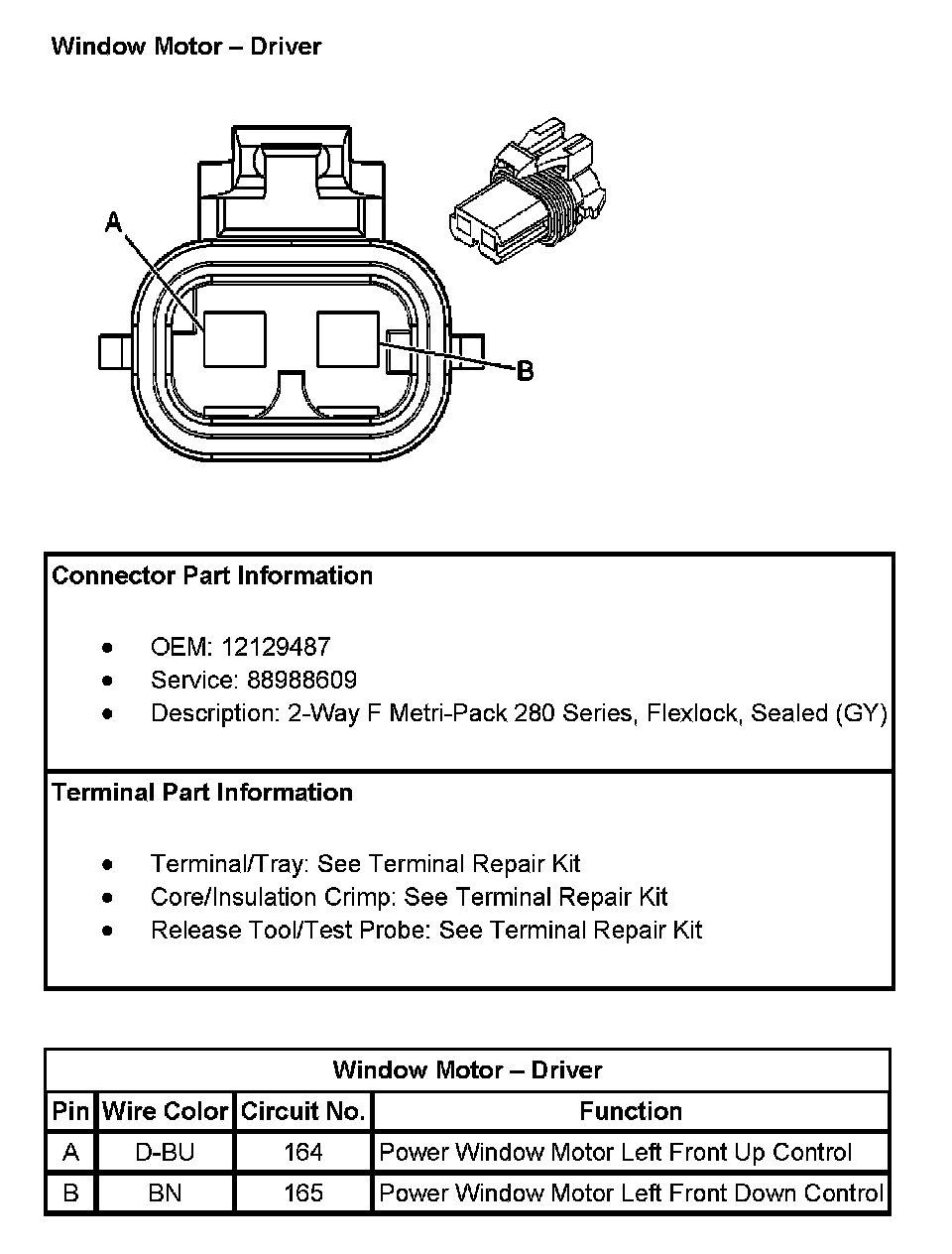

Window Motor - Driver:

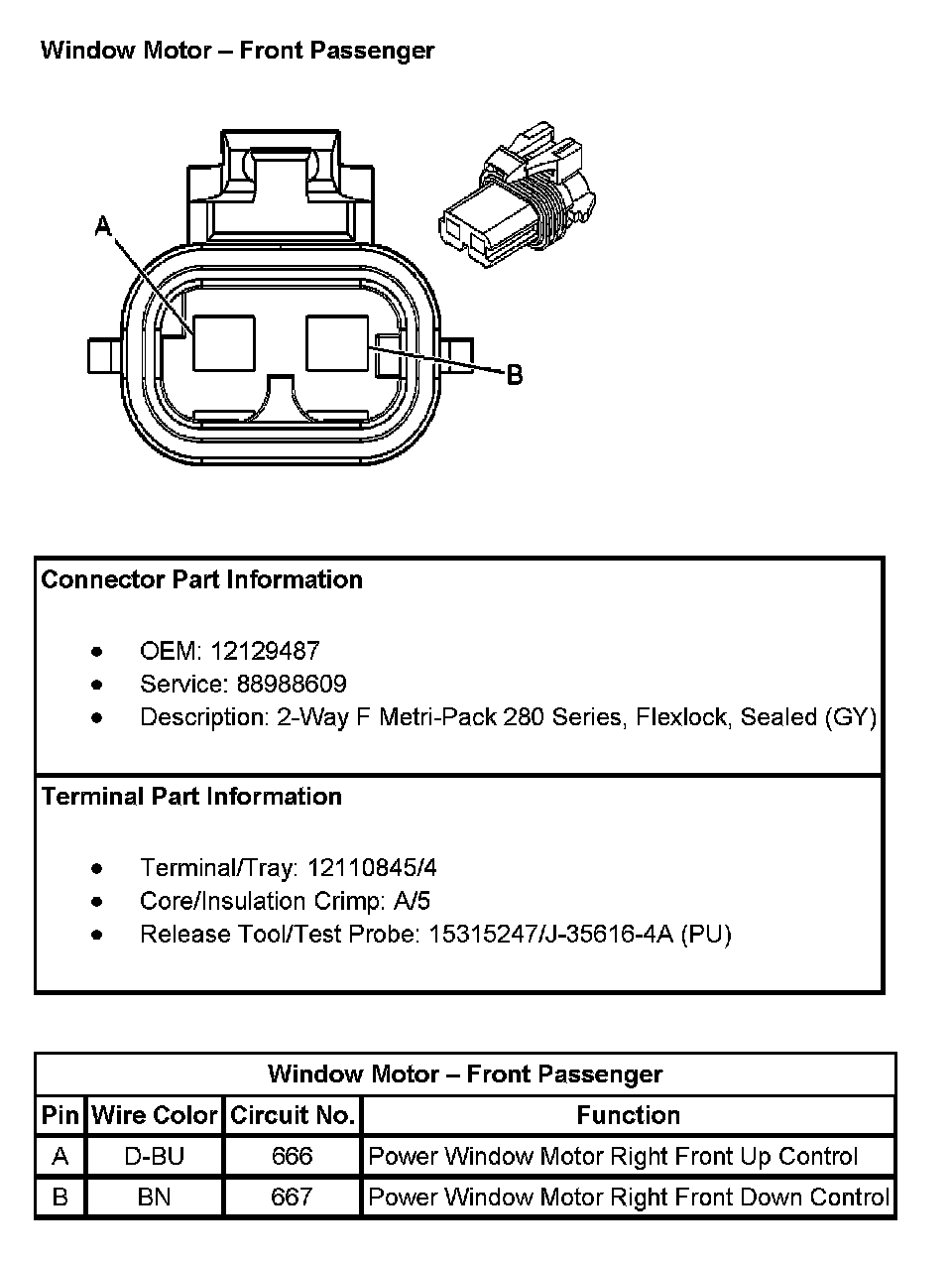

Window Motor - Front Passenger:

Window Motor - LR:

Window Motor - RR:
