Timing Components: Specifications

Engine Front Cover Bolt/Stud
First Pass 20 N.m (15 lb ft)
Final Pass 40 degrees

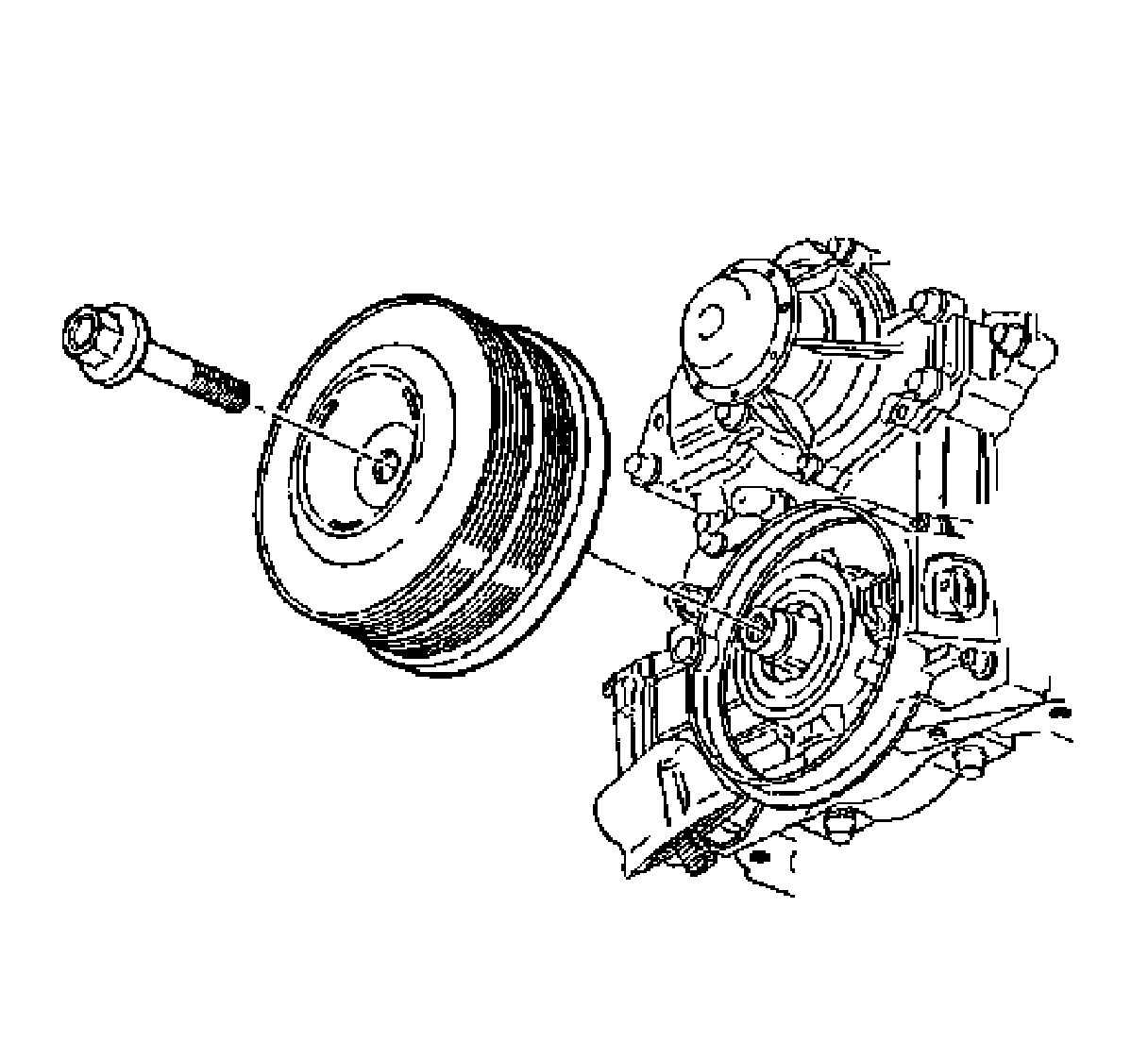

Crankshaft balancer
Install the new crankshaft balancer bolt.
Tighten the bolt to 150 N.m (111 lb ft).
Use the J 45059 to rotate the bolt an additional 76 degrees.
