4T65-E - Automatic Transaxle
Automatic Transmission Related Connector End Views

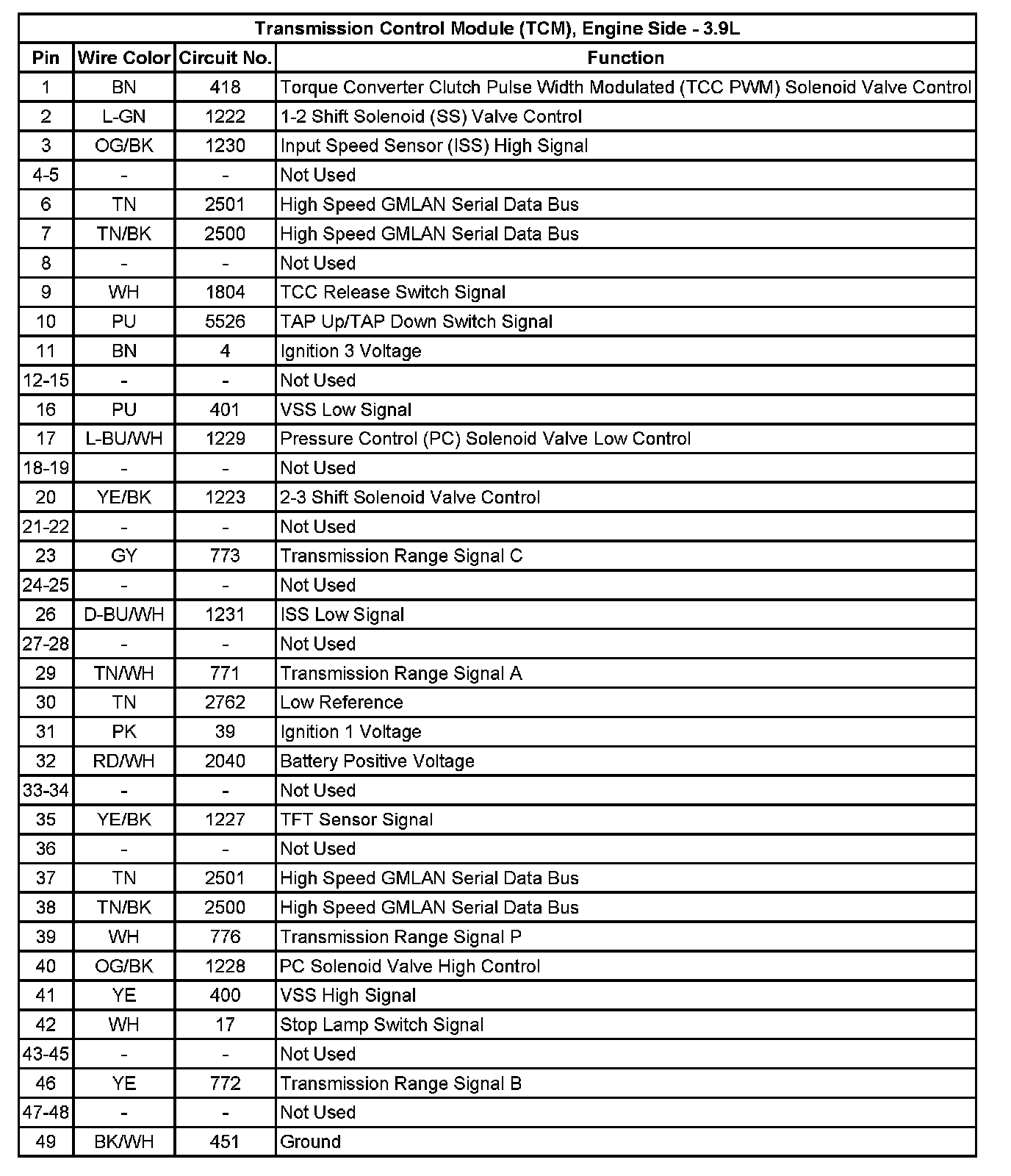

Transmission Control Module (TCM), Engine Side - 3.9L:
