4T65-E Automatic Transaxle
4T65-E Automatic Transaxle

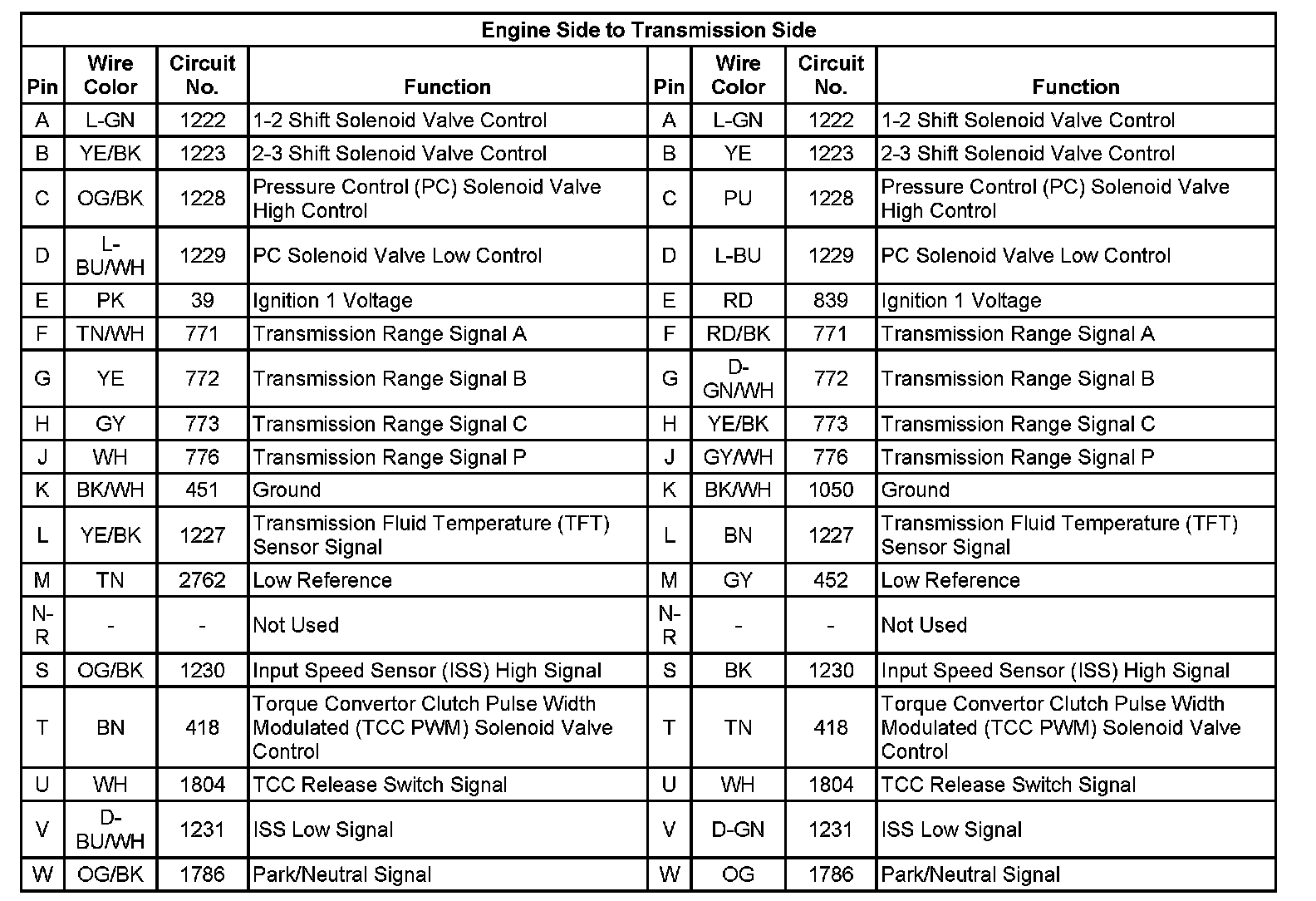

Automatic Transmission Inline 20-Way Connector End View
Engine Side to Transmission Side:
Engine Side to Transmission Side:
