4T45-E Automatic Transaxle
4T45-E Automatic Transaxle
Automatic Transmission Inline 20-Way Connector End View

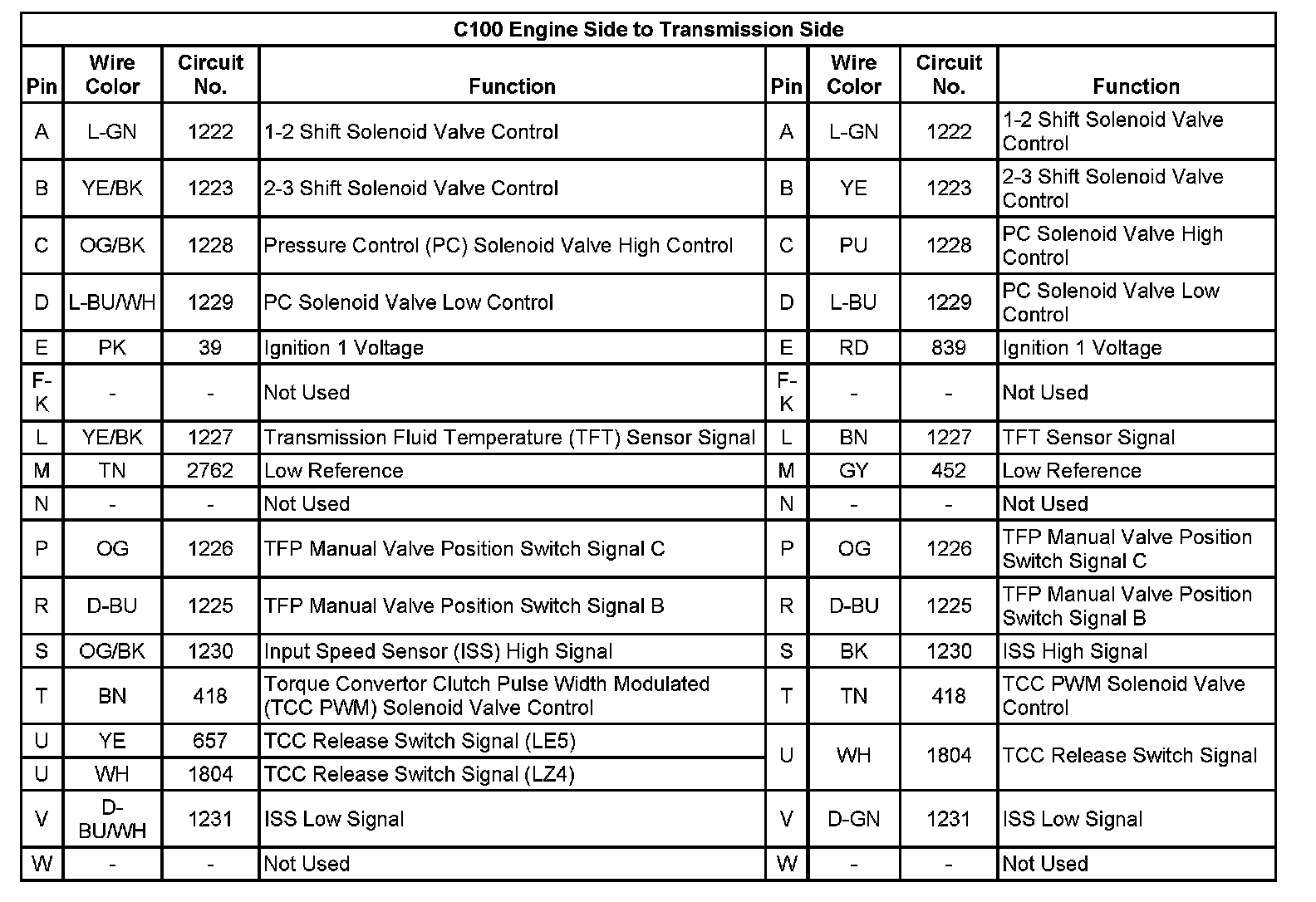

C100 Engine Side to Transmission Side:
C100 Engine Side to Transmission Side:
