Body Control Systems

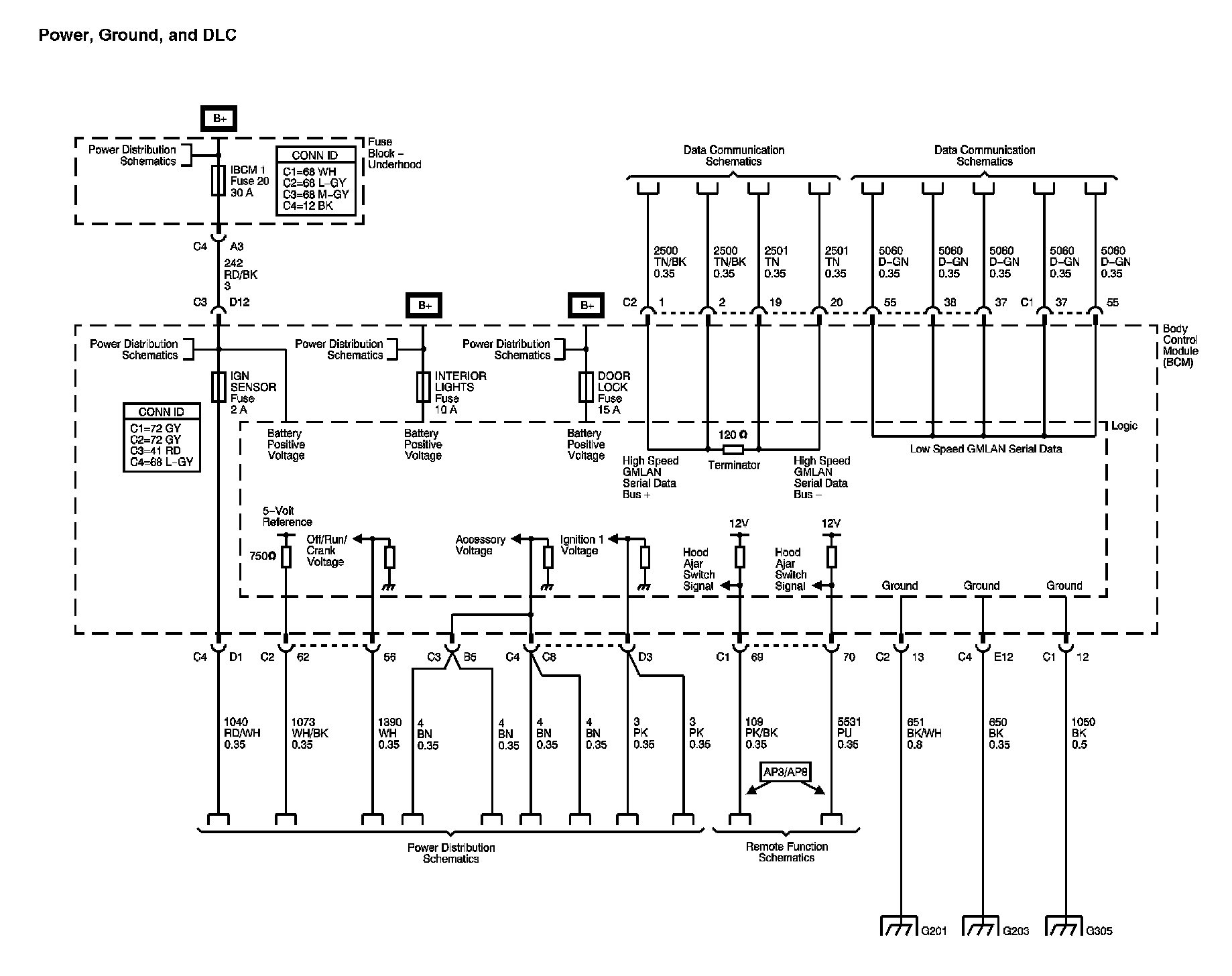

Body Control System Diagram 1:

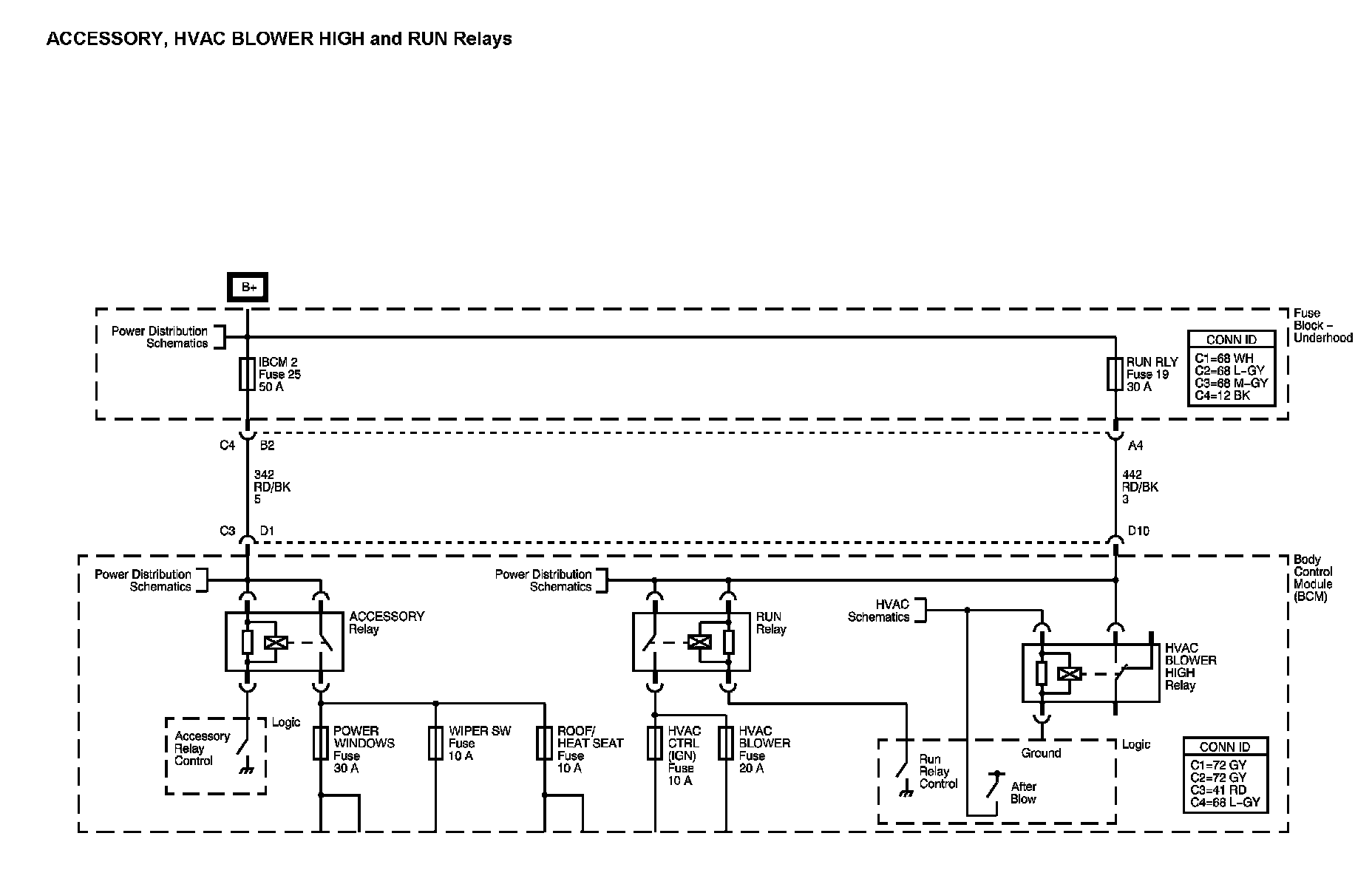

Body Control System Diagram 2:

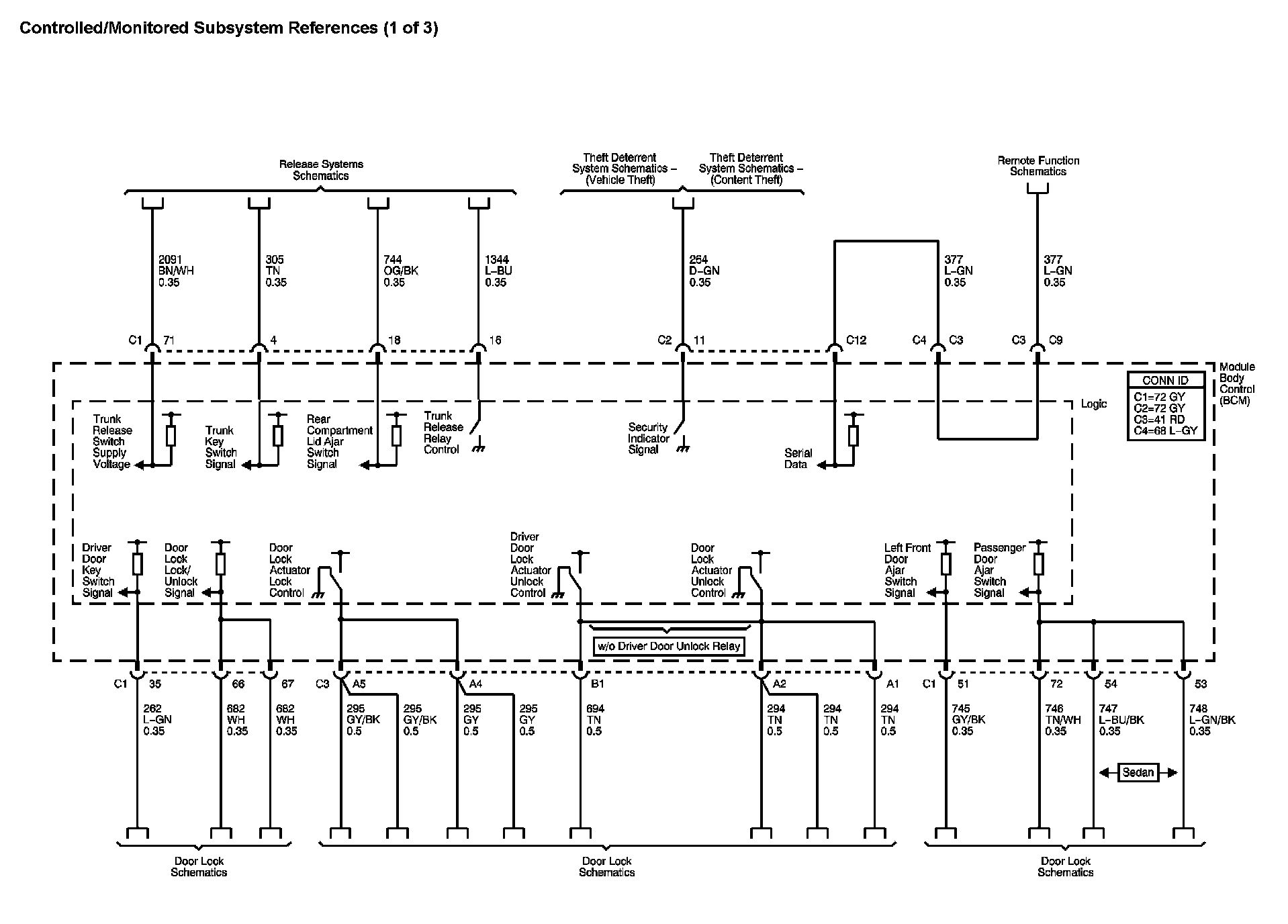

Body Control System Diagram 3 (1 of 3):

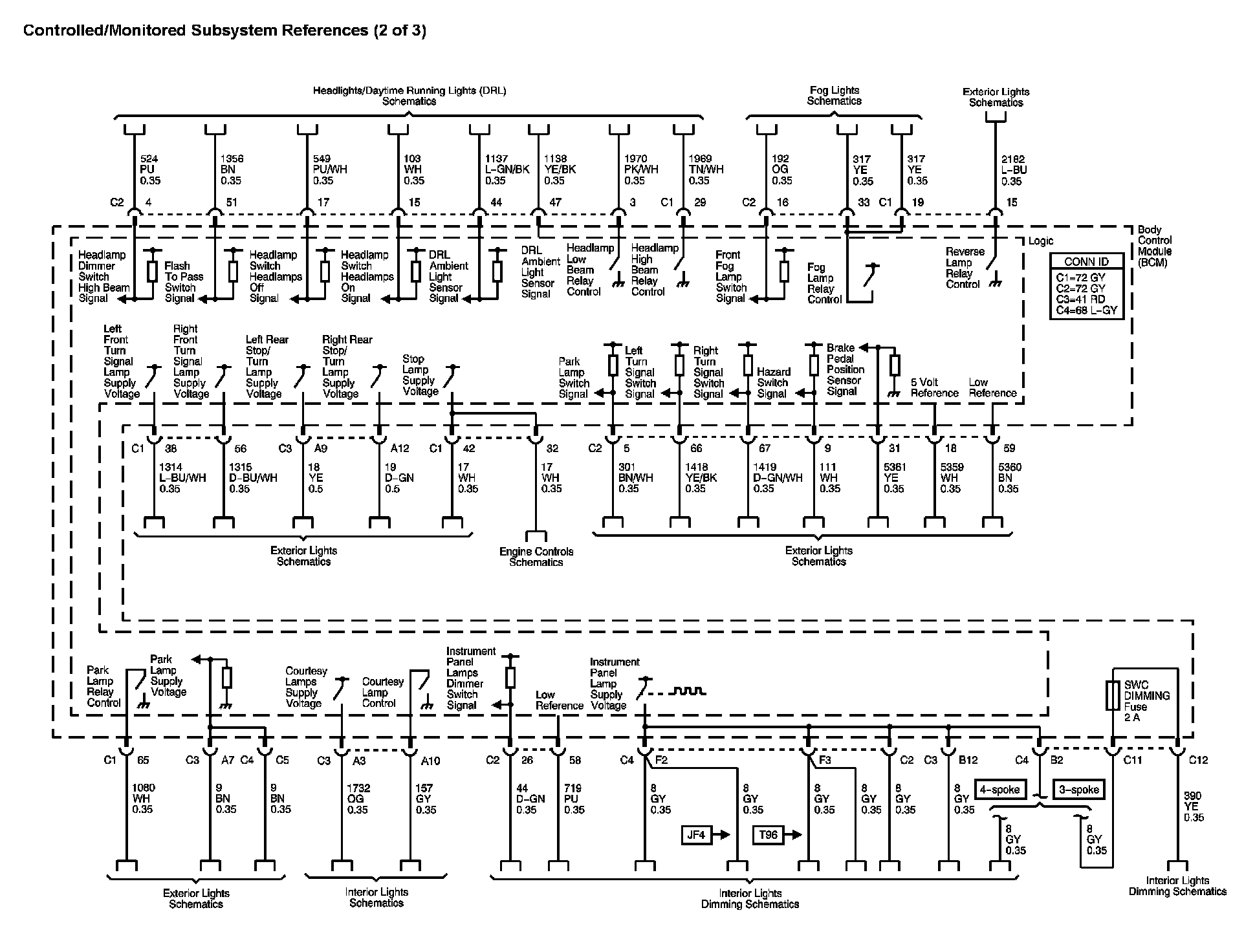

Body Control System Diagram 3(2 of 3):

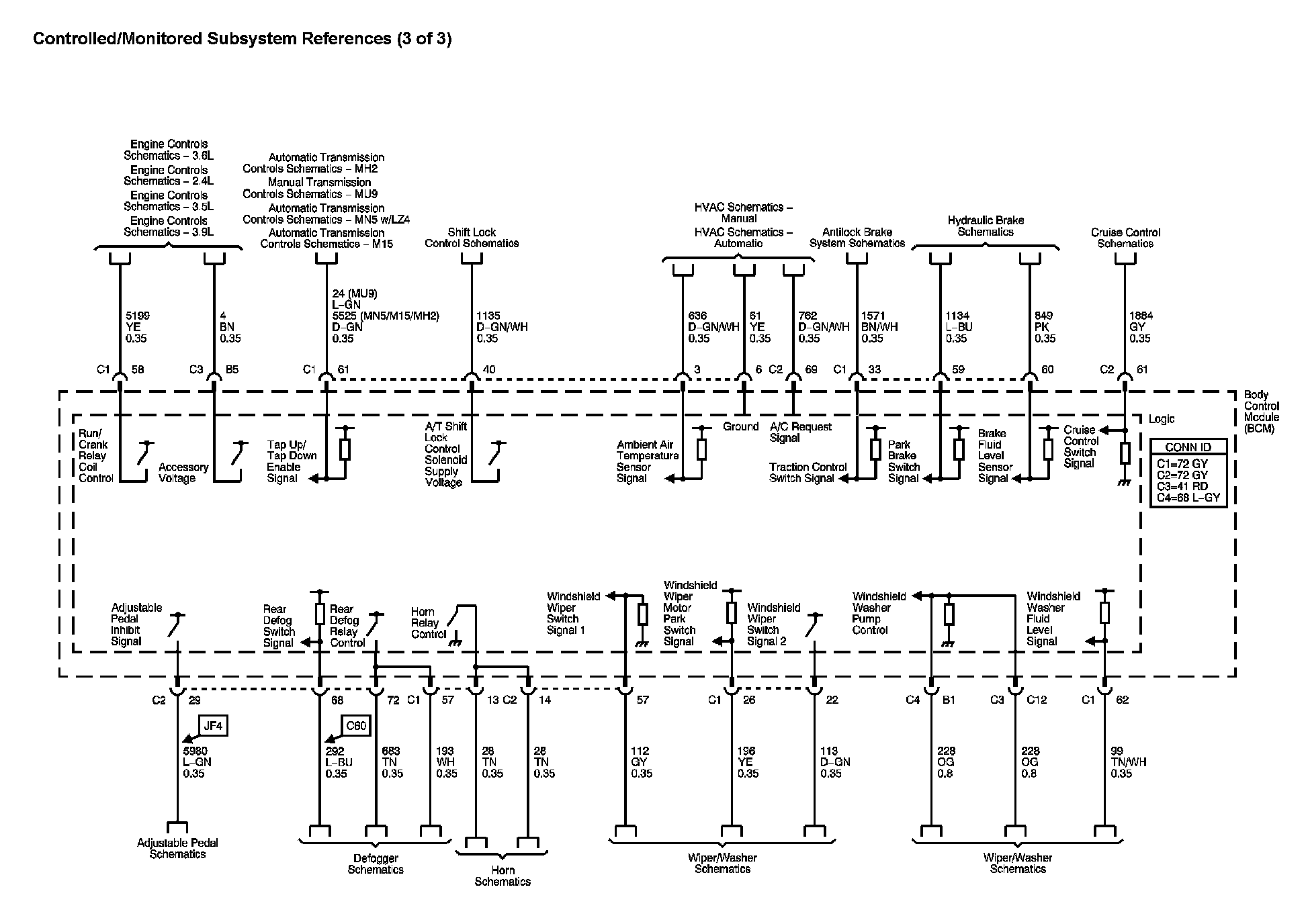

Body Control System Diagram 3(3 of 3):

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
