Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Washer Fluid Level Switch

Washer Fluid Level Switch

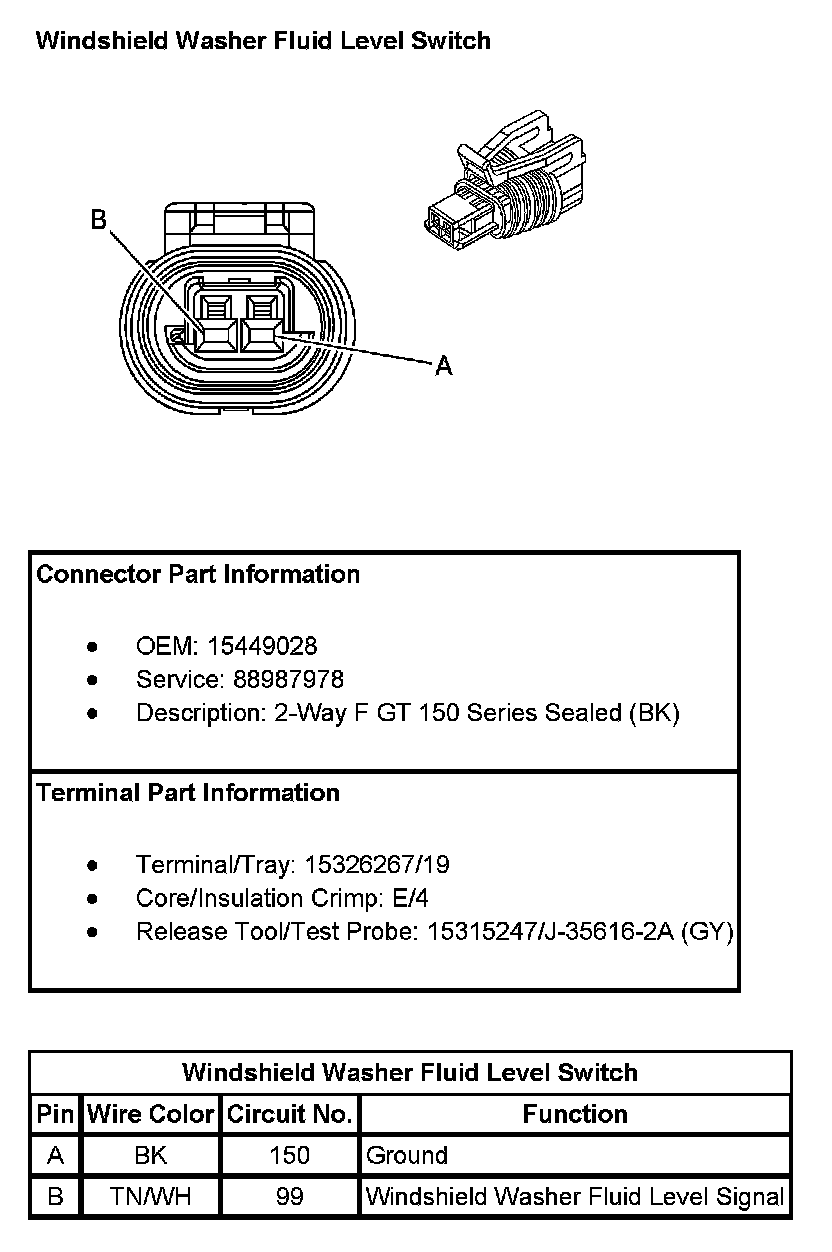

Windshield Washer Fluid Level Switch:
