Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Latch

Trunk / Liftgate Latch

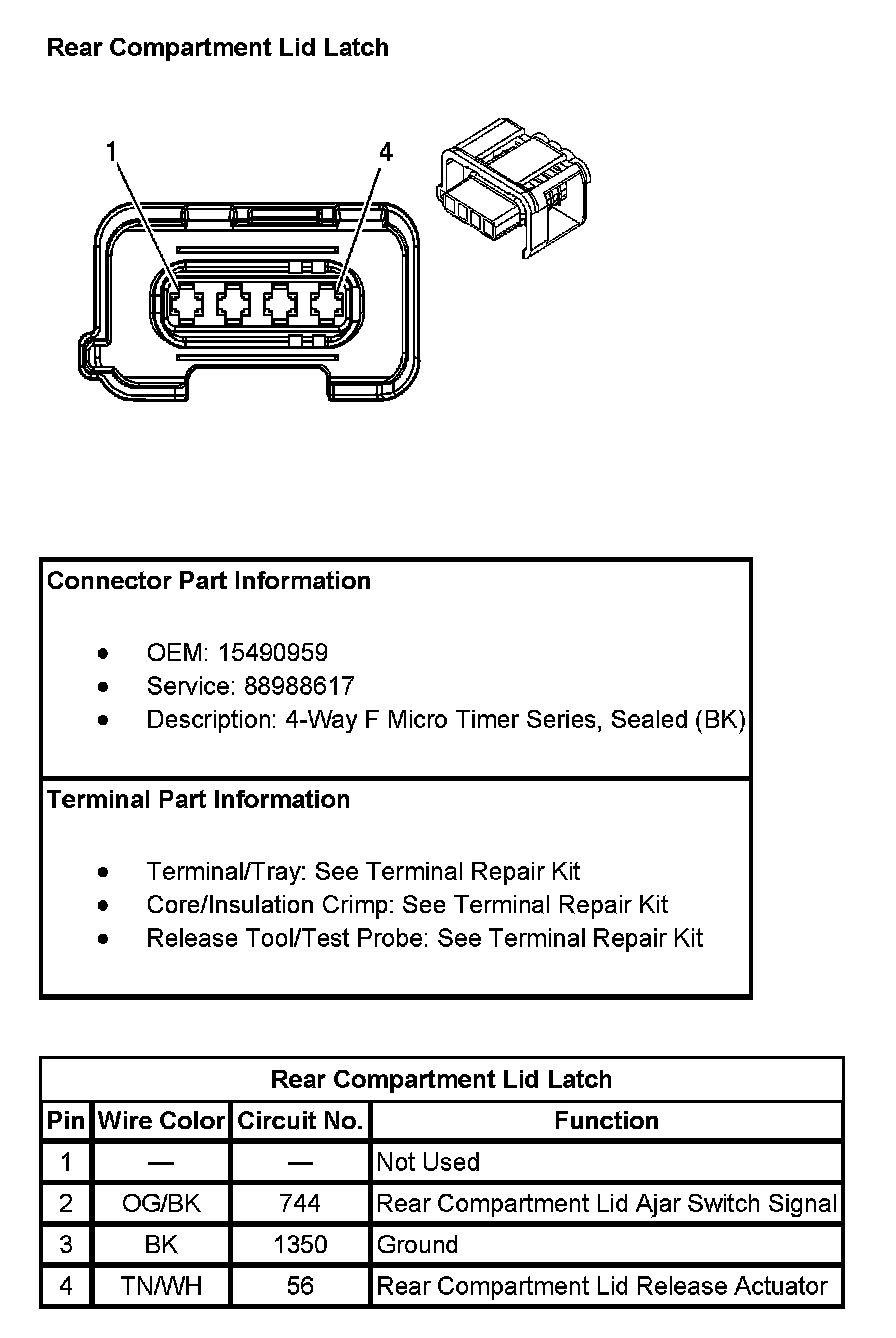

Rear Compartment Lid Latch:
