Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch

Power Seat Switch

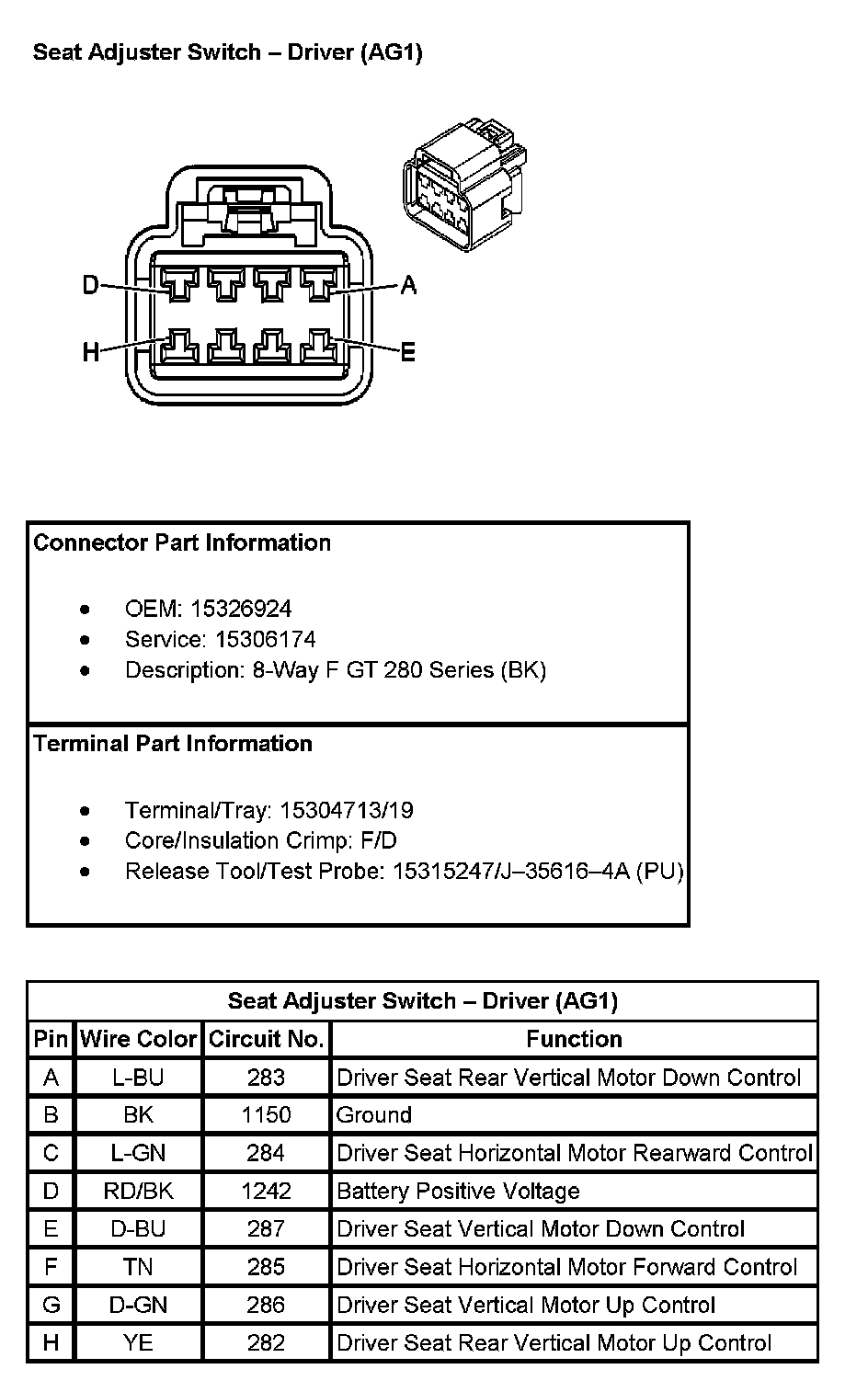

Seat Adjuster Switch - Driver (with RPO Code AG1):



Seat Adjuster Switch - Driver (With RPO Code ASN):
