Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Lamp

Brake Lamp

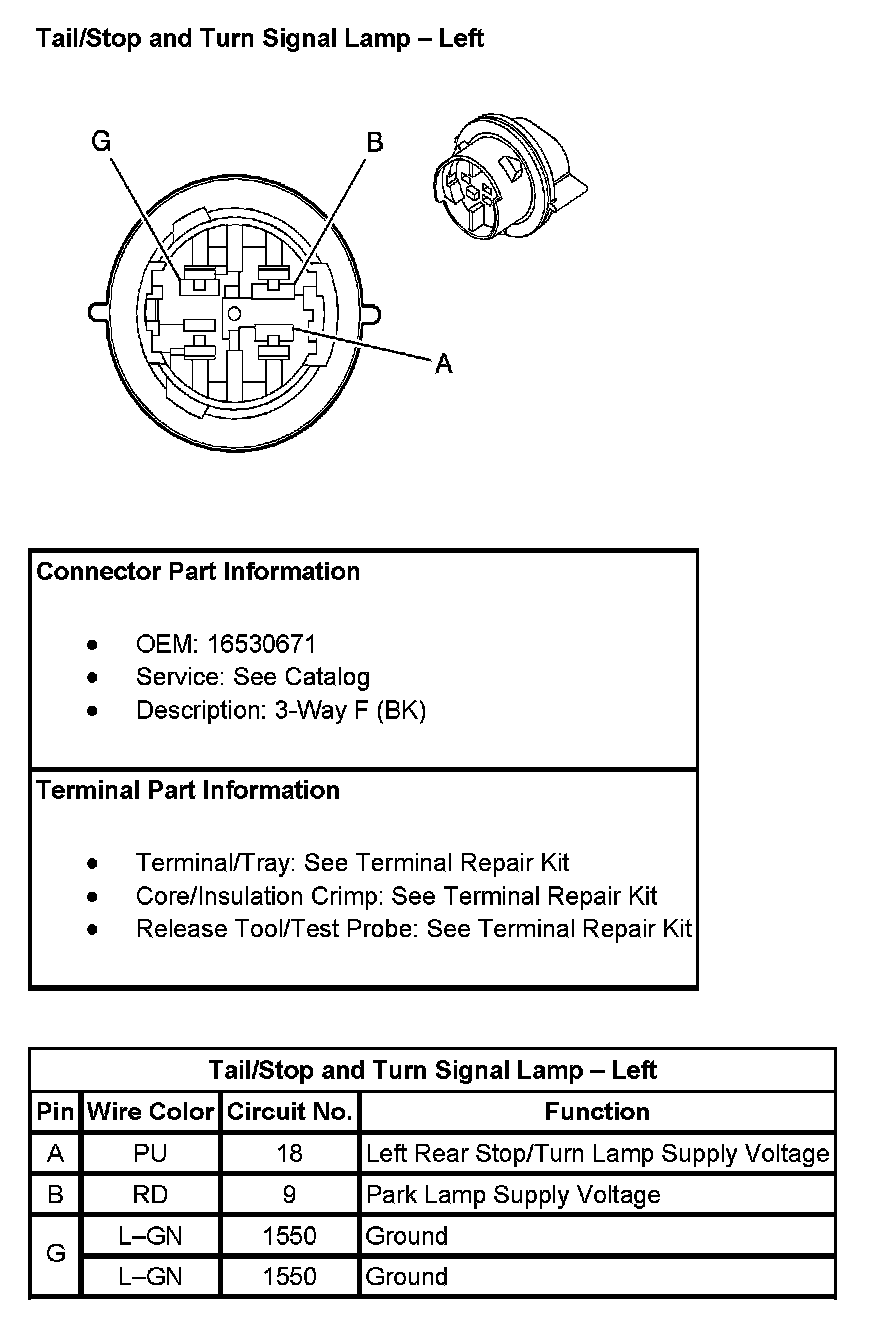

Tail/Stop And Turn Signal Lamp - Left:

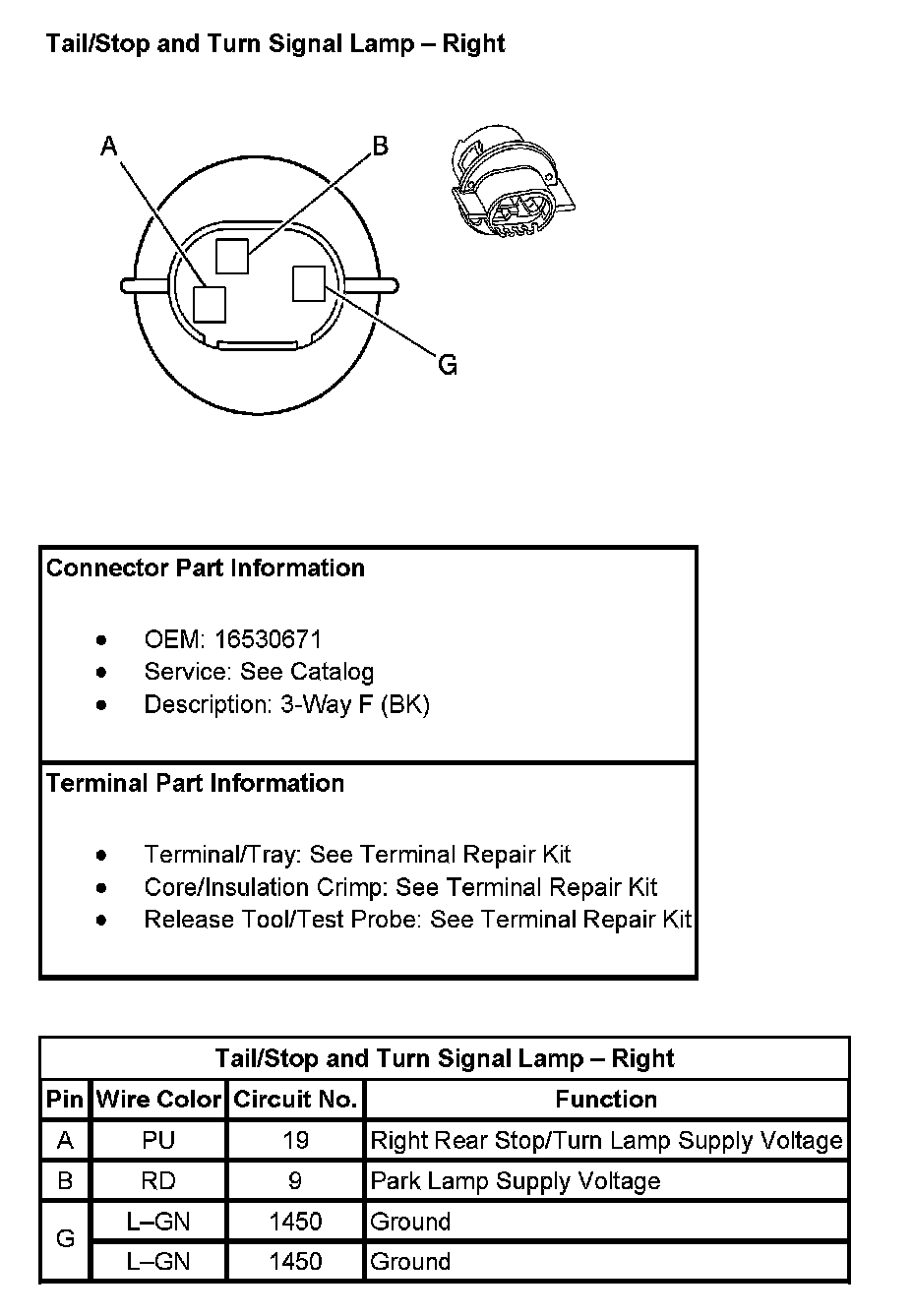

Tail/Stop And Turn Signal Lamp - Right:
