Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations

Seats: Locations

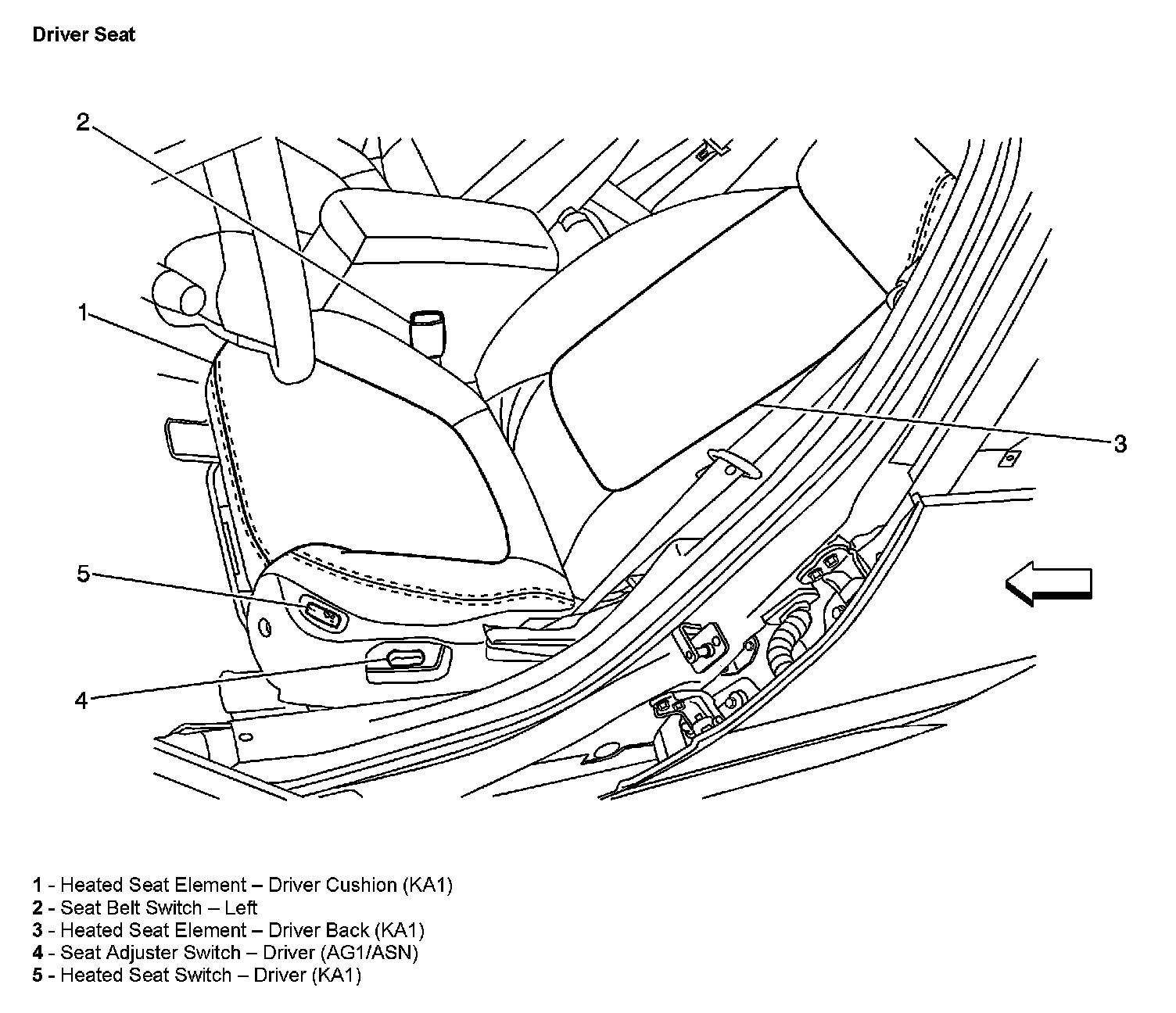

Driver Seat:

Under Driver Seat:

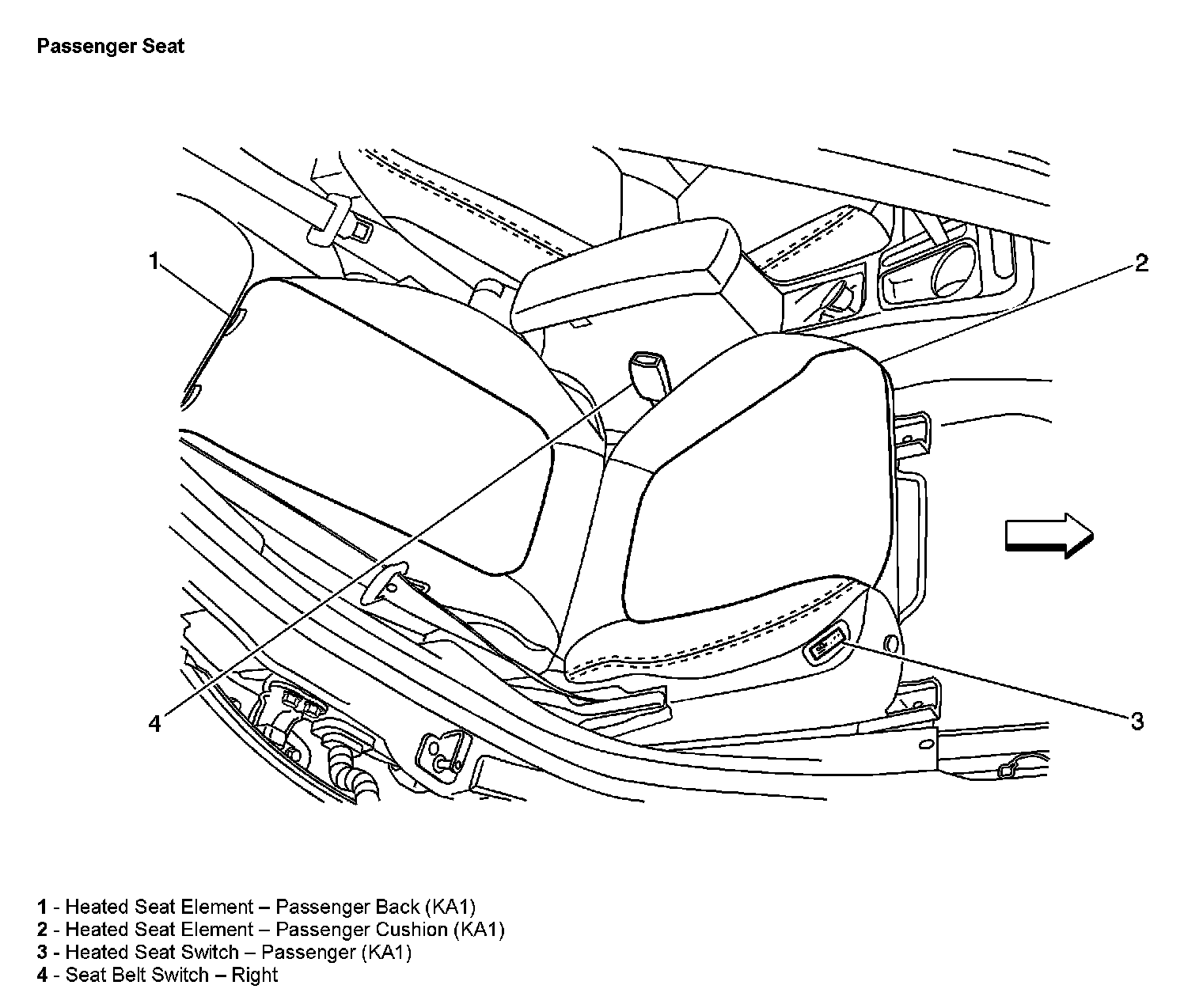

Passenger Seat:

Under Front Passenger Seat (with RPO Code KA1):
