LEMON Manuals
: Even more car manuals for everyone
Home
>>
Pontiac
>>
2006
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
Control Assembly, HVAC

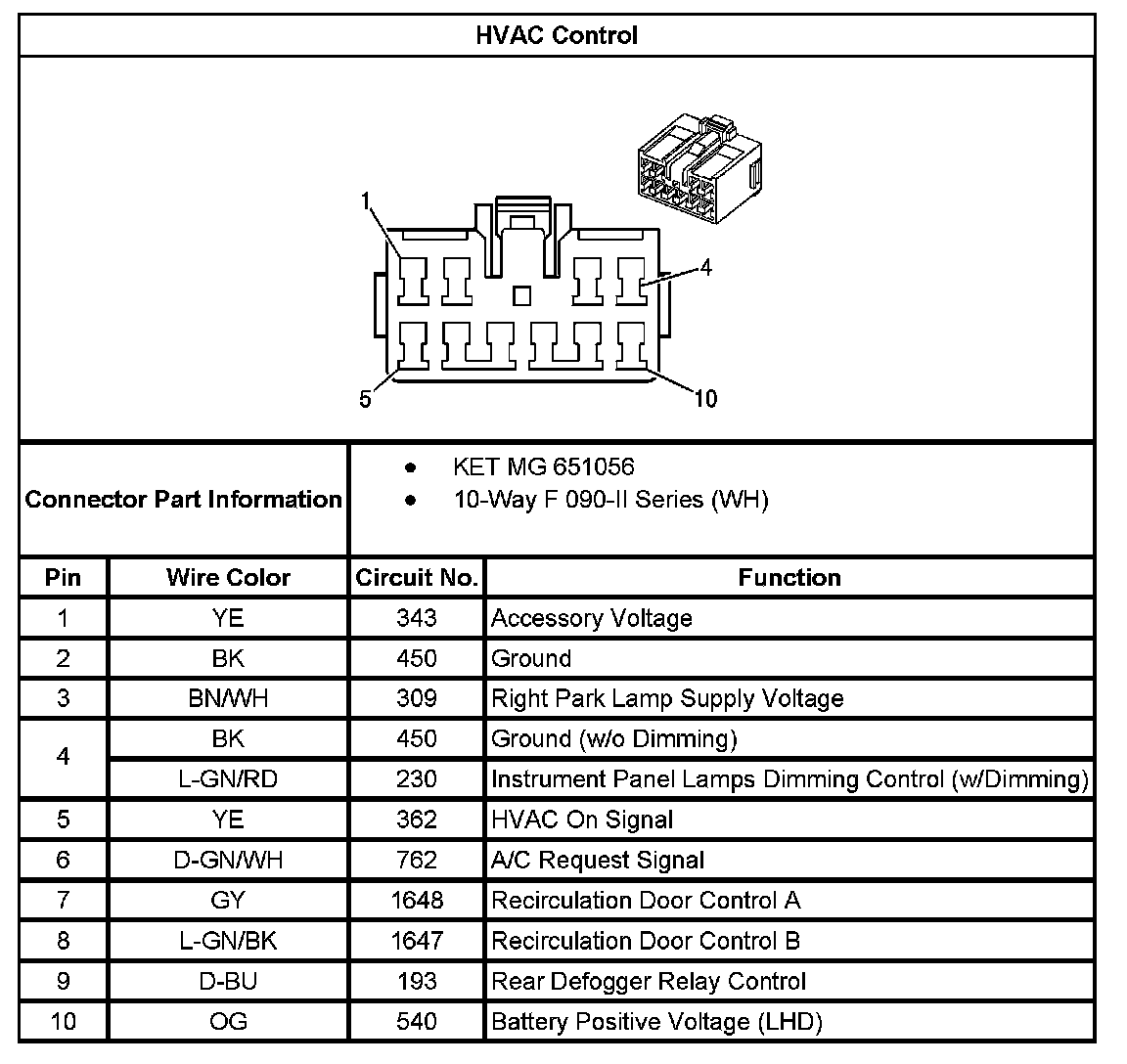

HVAC Control:
