Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Control Module, A/T >> Transmission Control Module (TCM) - A

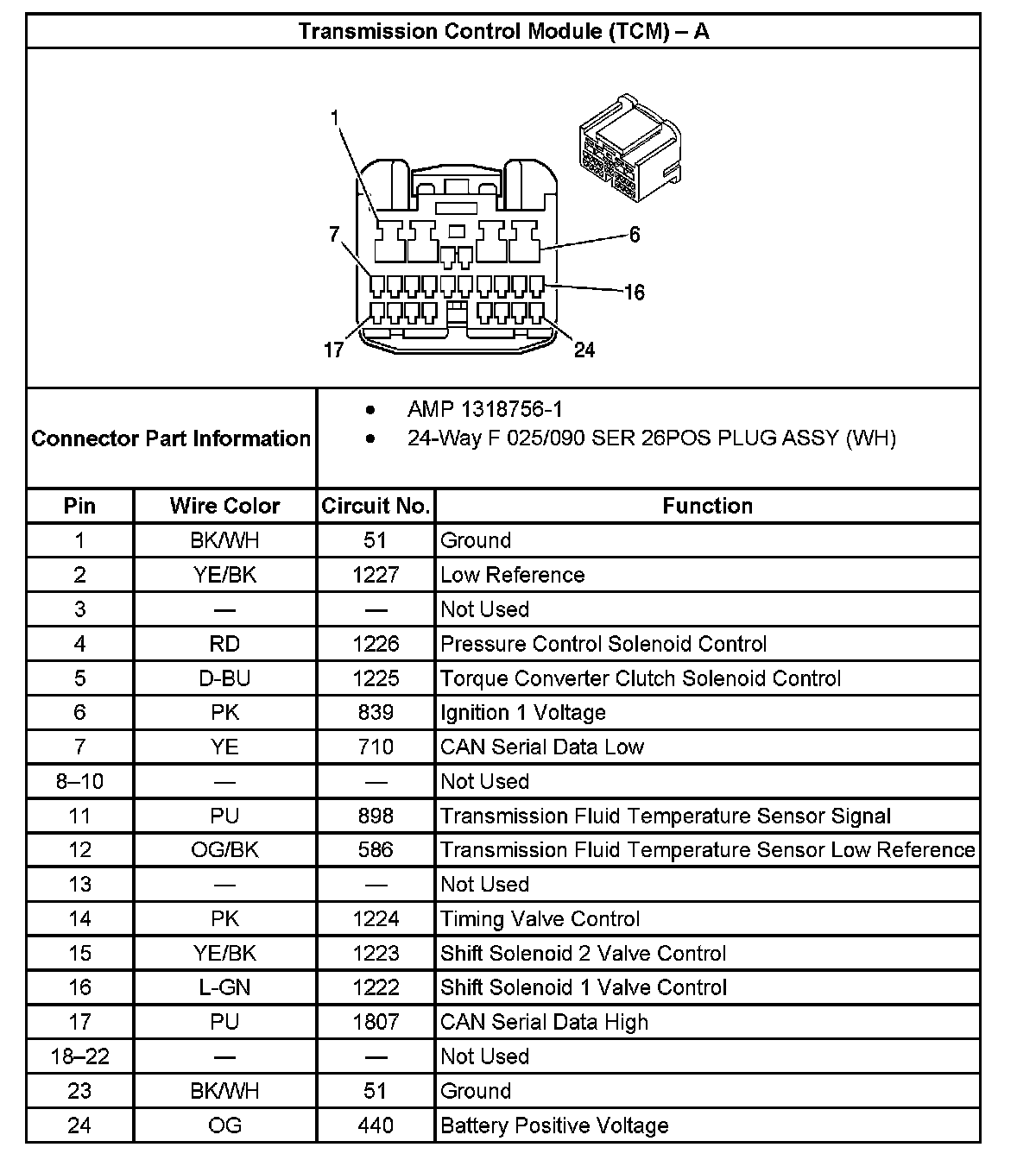

Transmission Control Module (TCM) - A

Transmission Control Module (TCM) - A:
