Inflatable Restraint Sensing And Diagnostic Module (SDM) LHD

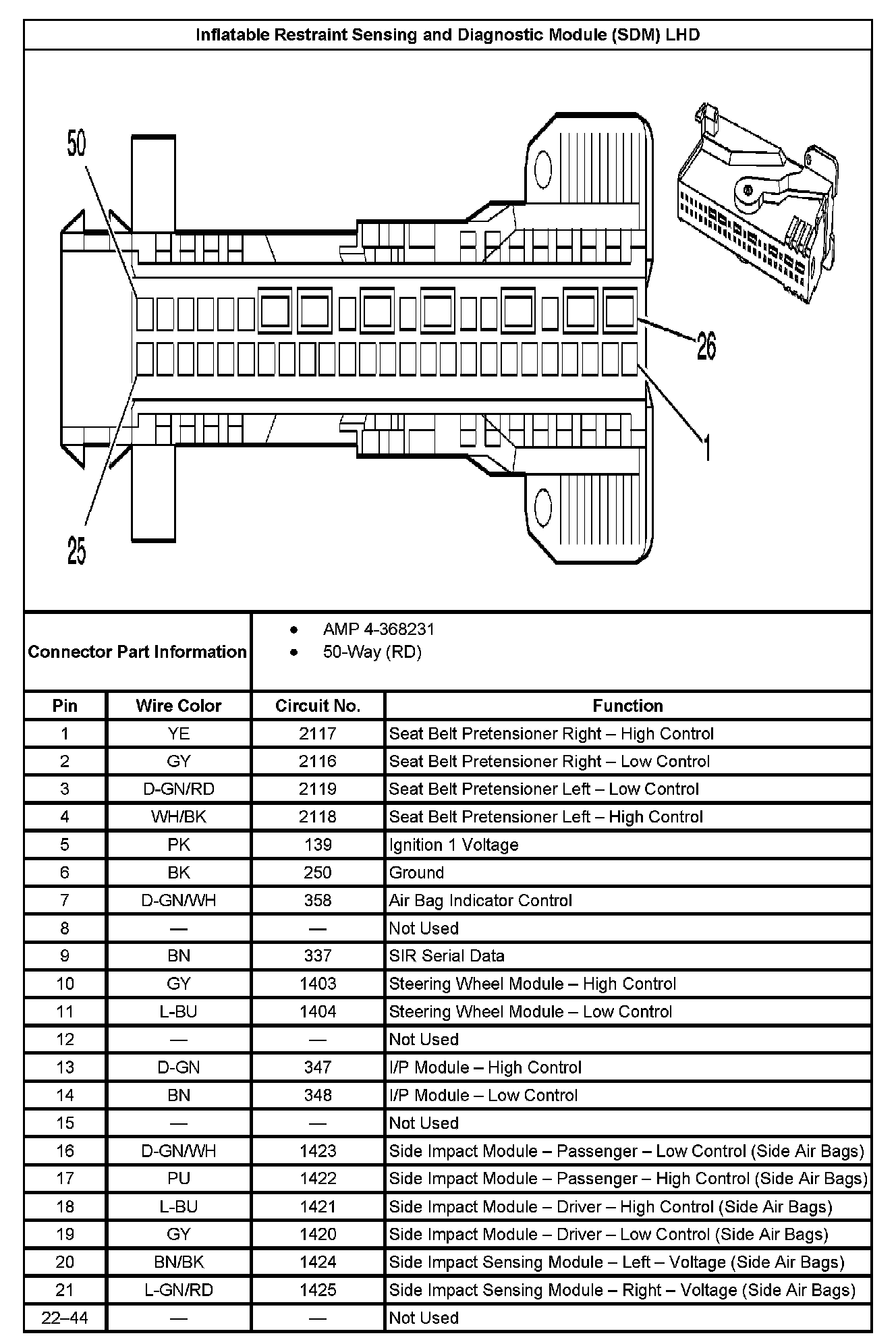

Inflatable Restraint Sensing And Diagnostic Module (SDM) LHD (Part 1):

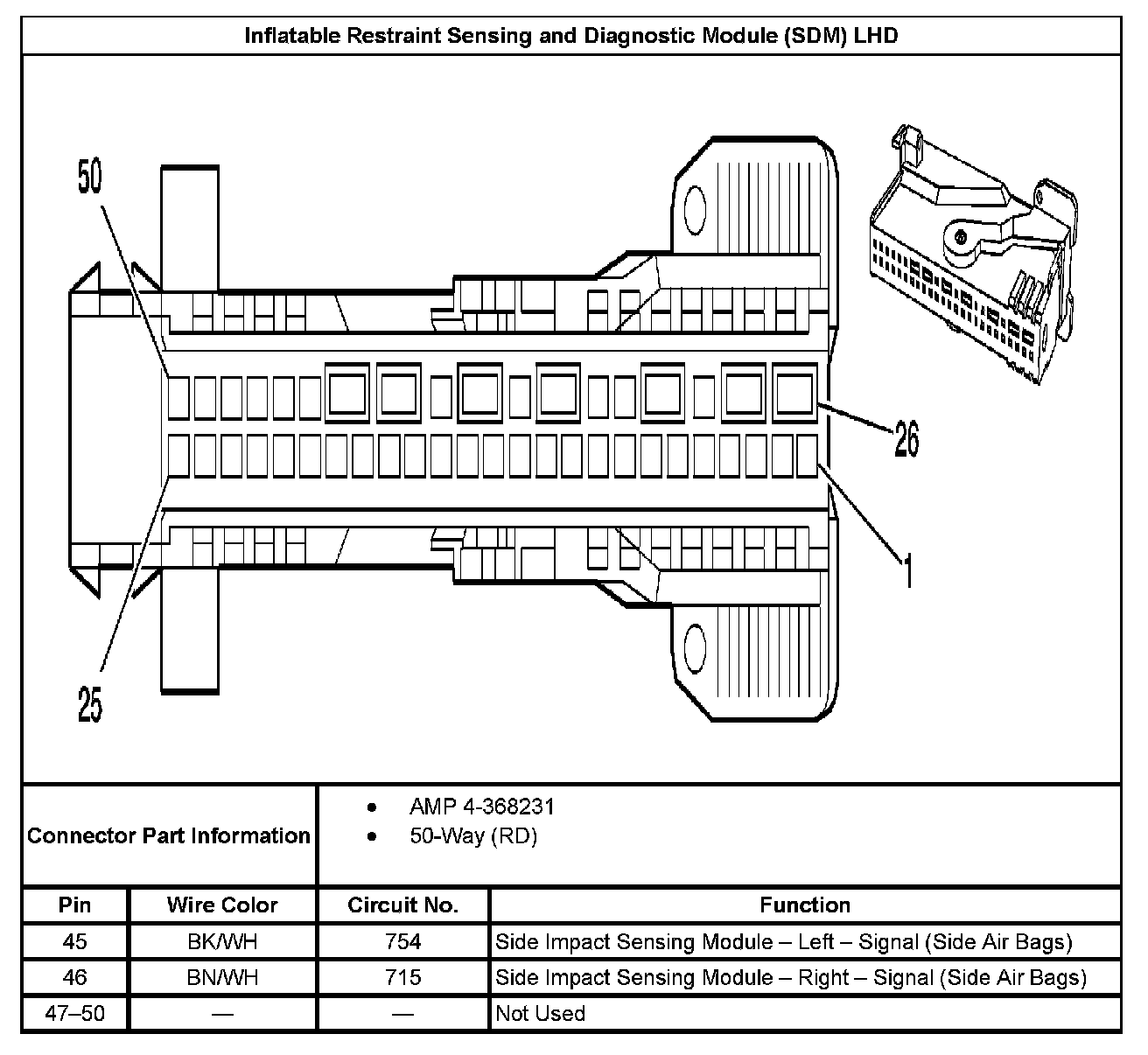

Inflatable Restraint Sensing And Diagnostic Module (SDM) LHD (Part 2):
