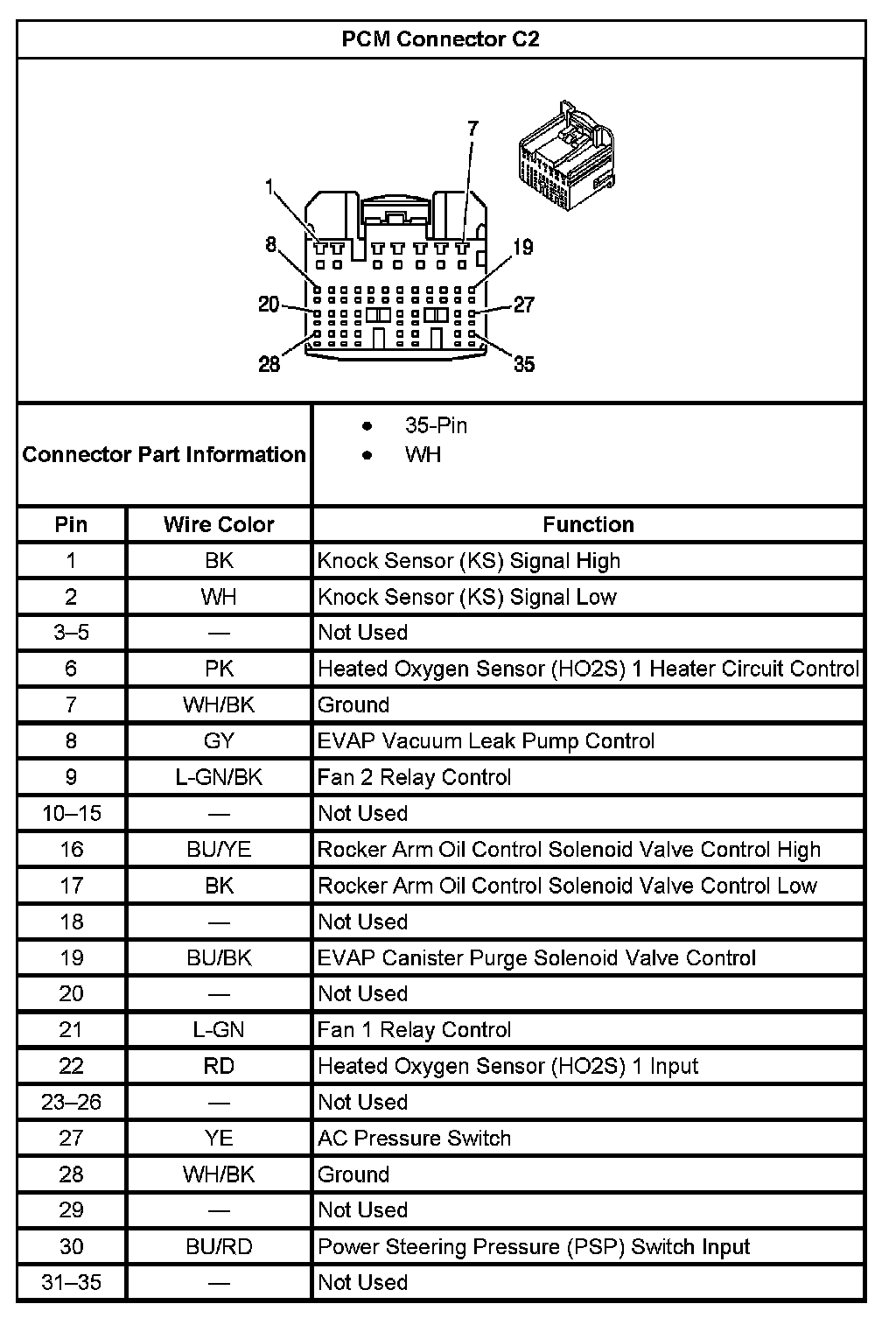

Home >> Pontiac >> 2006 >> Vibe FWD L4-1.8L VIN L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> PCM Connector C2
