Home >> Pontiac >> 2006 >> Torrent AWD V6-3.4L VIN F >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Diagrams >> Transmission Control Module C2

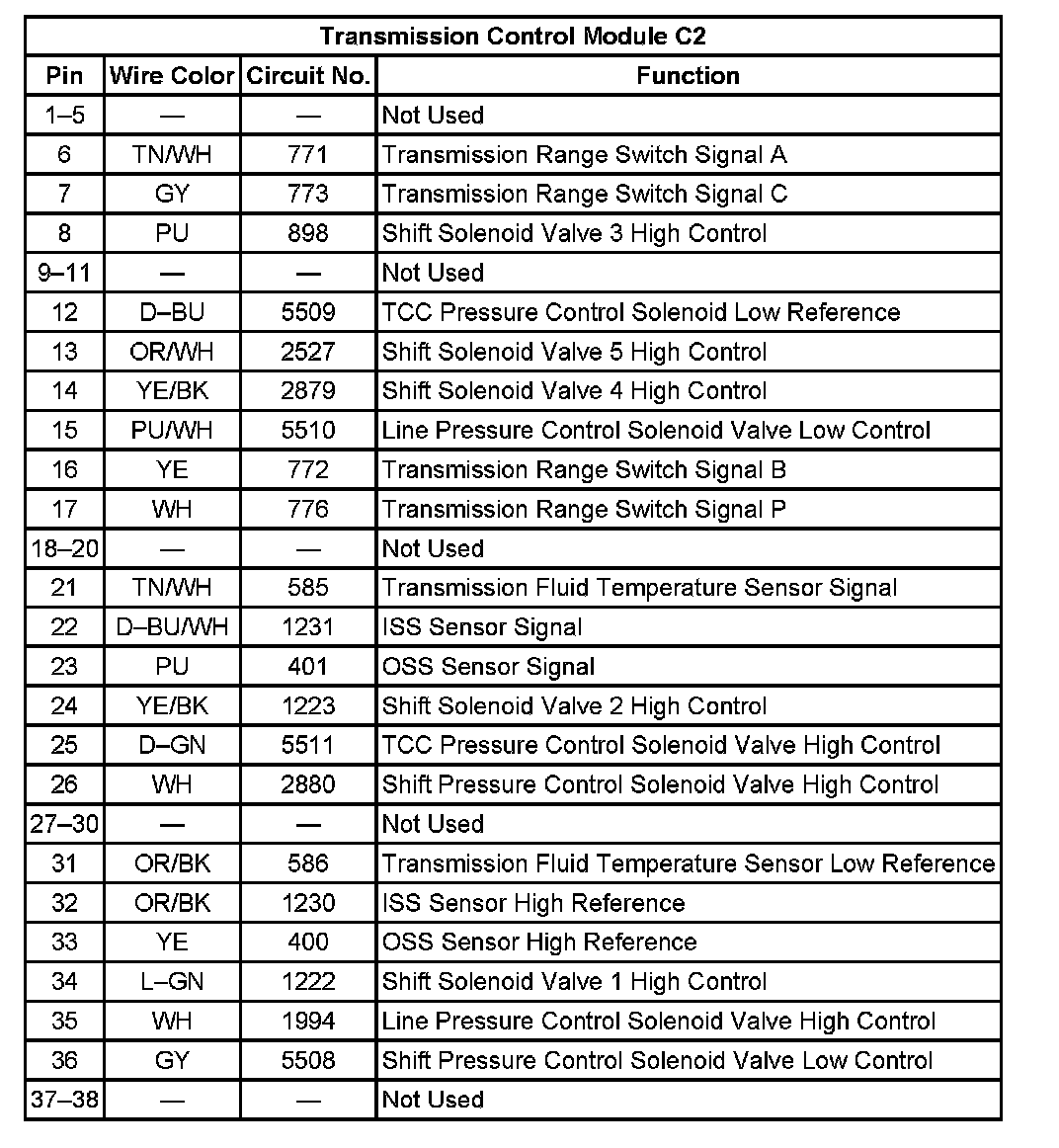

Transmission Control Module C2



Transmission Control Module C2

Transmission Control Module C2:







Transmission Control Module C2:
