Steering Control Module: Locations

Power Steering System Component Views

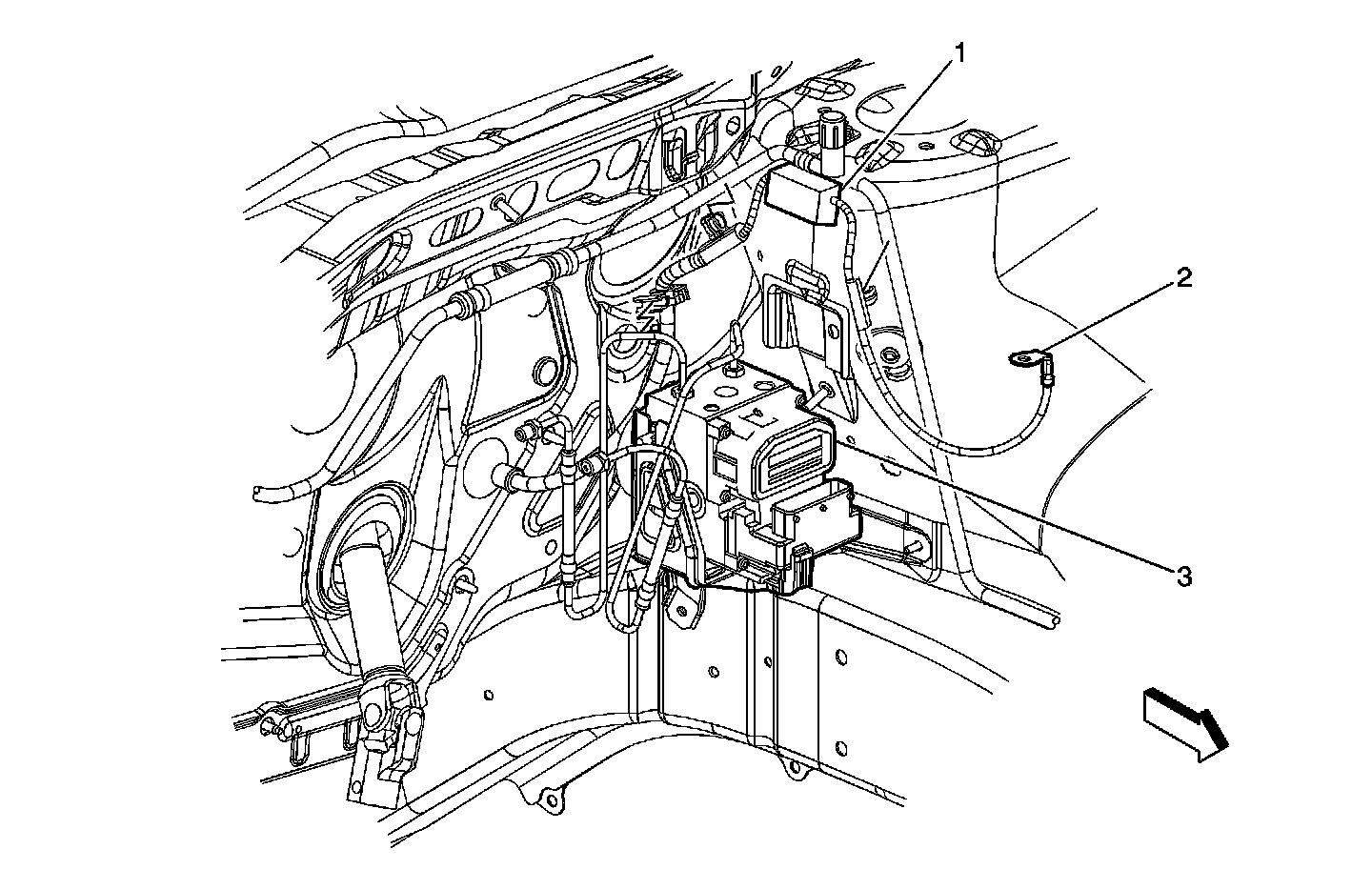

Electronic Power Steering Harness, Underhood Side:

1 - EPS Inline Fuse Holder
2 - PSCM Harness Connection to the Underhood Fuse Block
3 - Electronic Brake Control Module (EBCM)

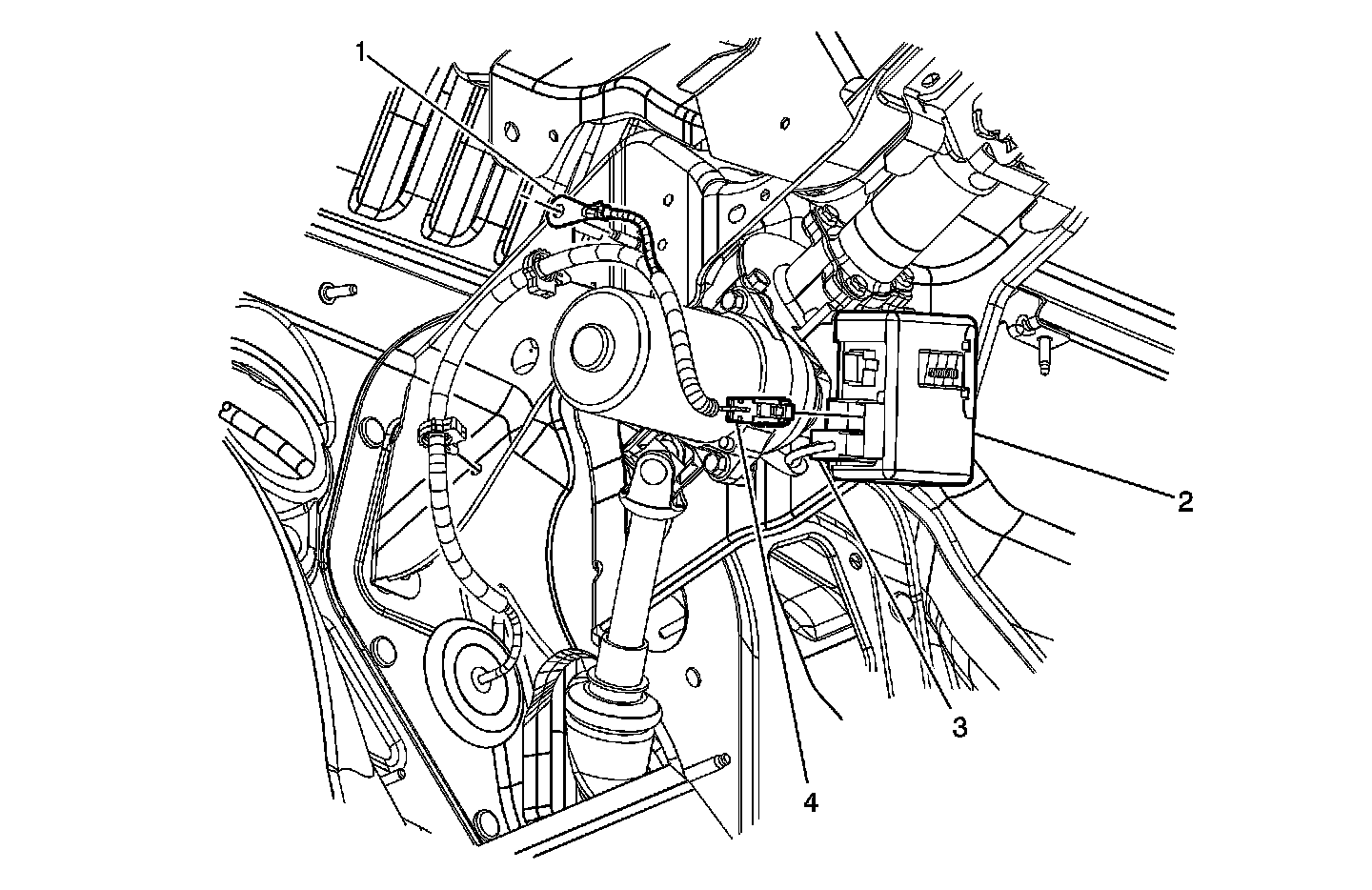

Electronic Power Steering Harness, I/P Side:

1 - G207
2 - Power Steering Control Module (PSCM)
3 - Power Steering Control Module (PSCM) C3 - EPS Motor Pigtail
4 - Power Steering Control Module (PSCM) C1
