Electrical Diagrams

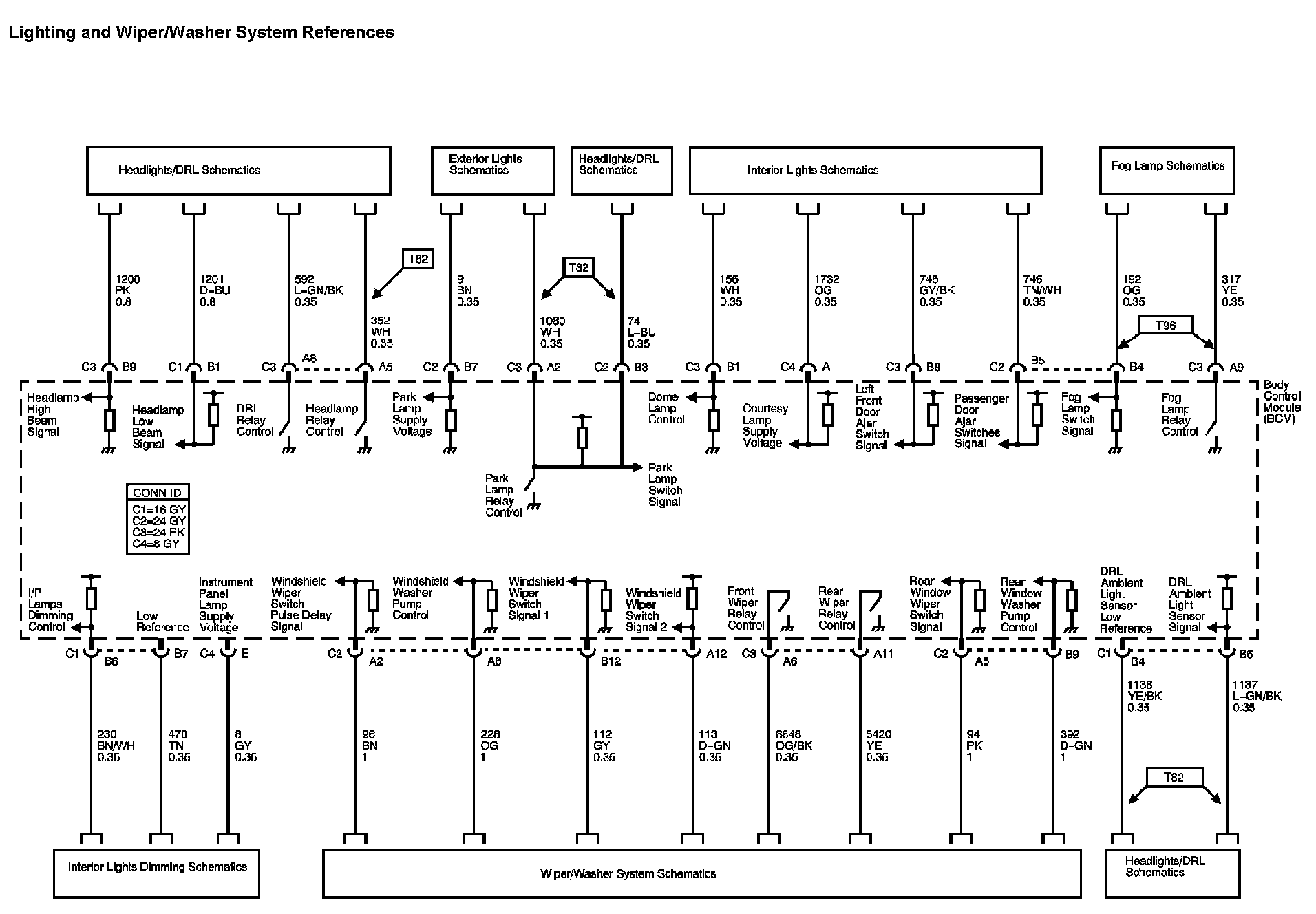

Body Control System Diagram 1:

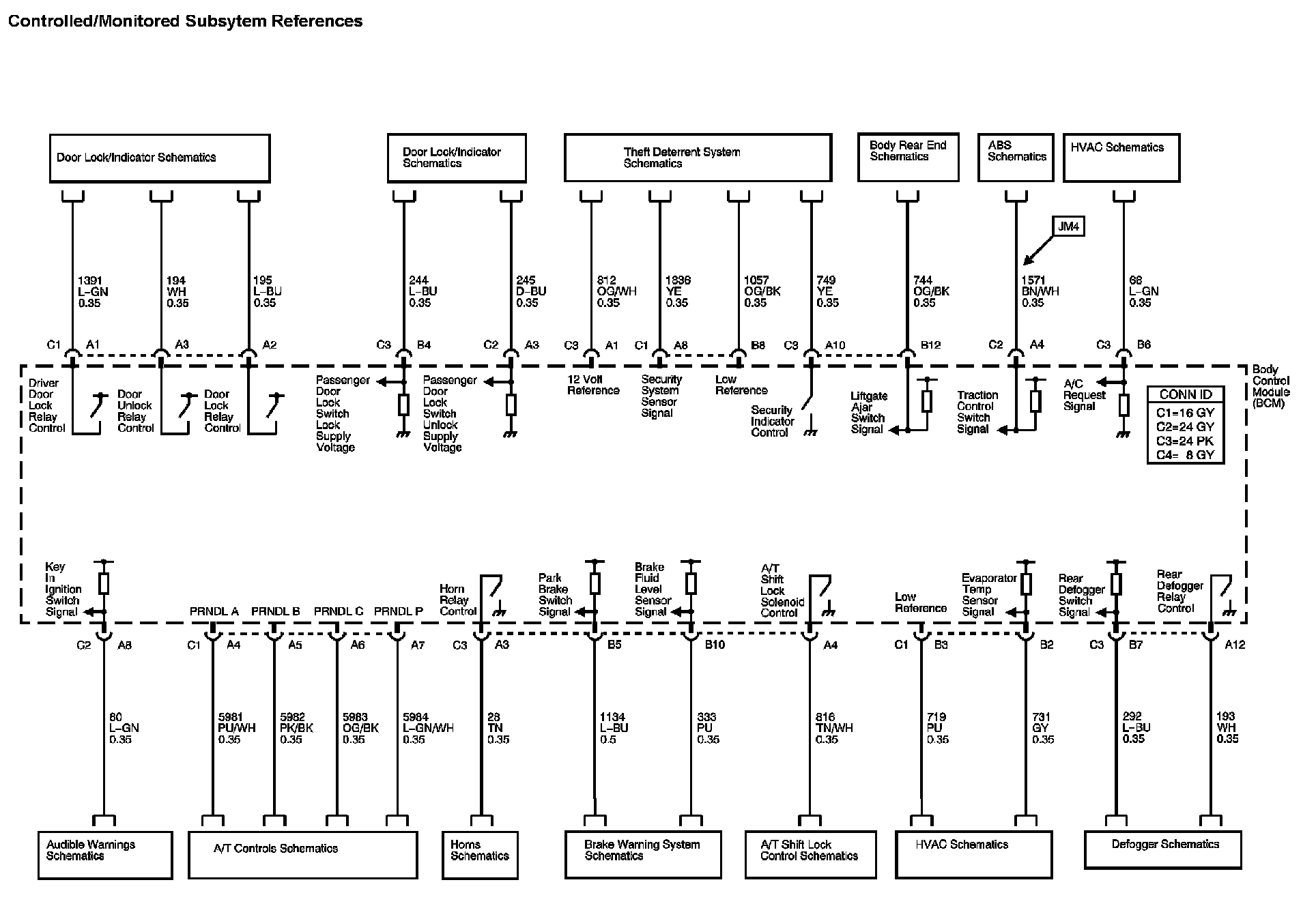

Body Control System Diagram 2:

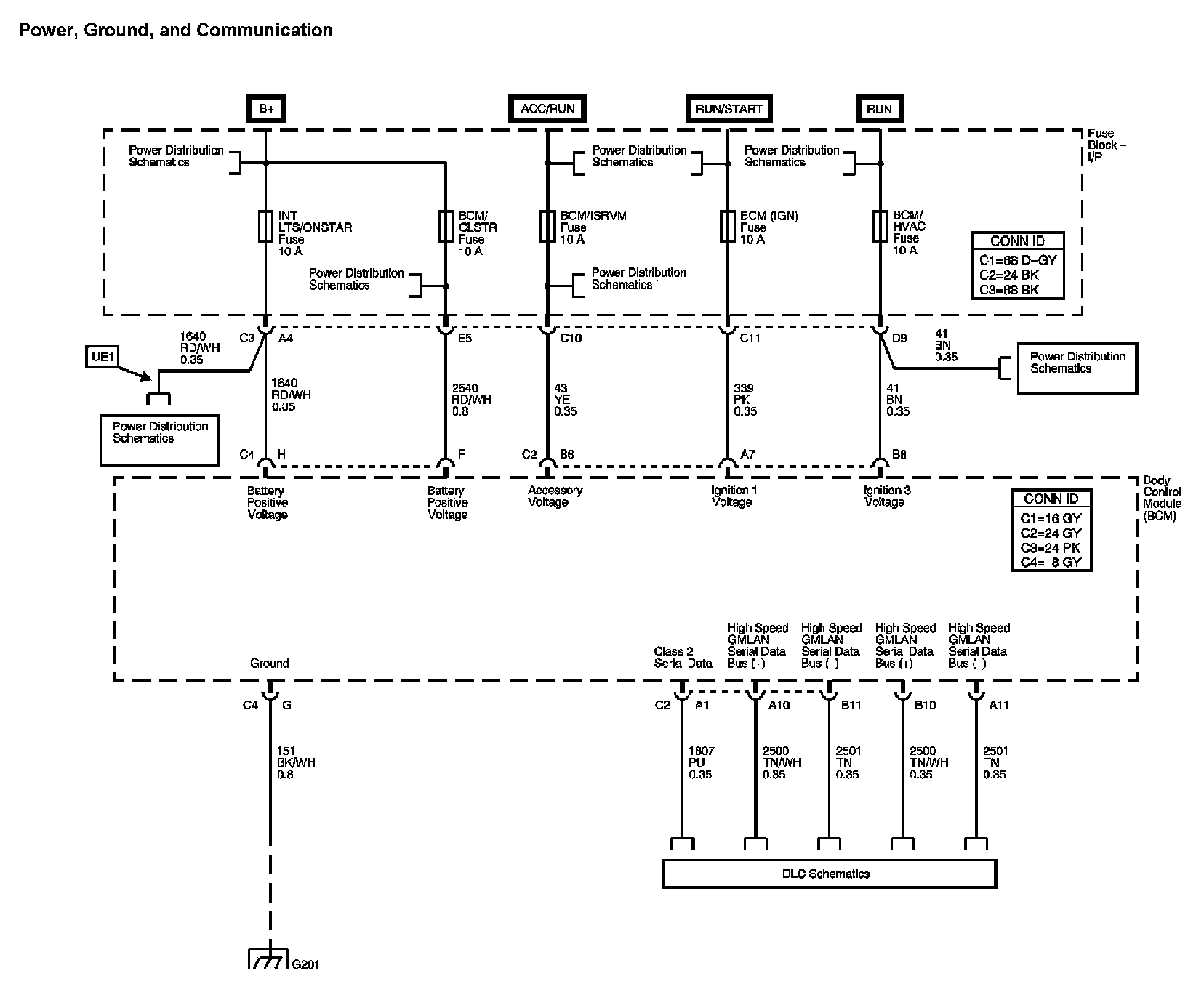

Body Control System Diagram 3:






Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
