Solstice L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column
>>
Steering Column Lock
Steering Column Lock
Steering Wheel
and Column Connector End Views

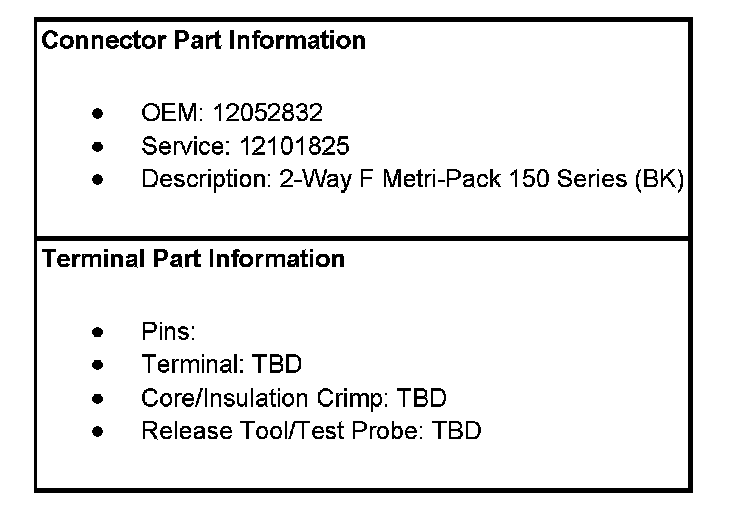

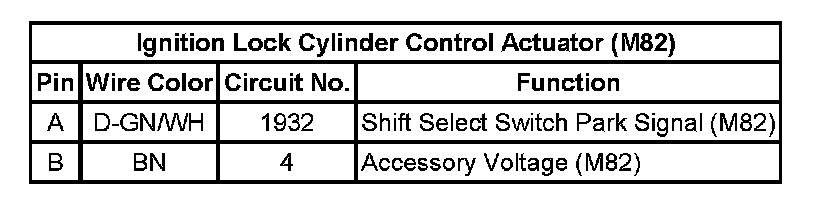

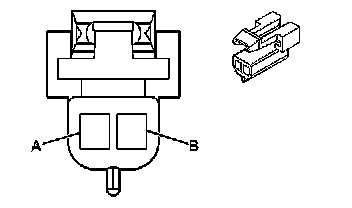

Ignition Lock Cylinder Control Actuator (M82)
A/T Shift Lock Control Solenoid:
