Home >> Pontiac >> 2006 >> Solstice L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Lock Switch

Power Trunk / Liftgate Lock Switch

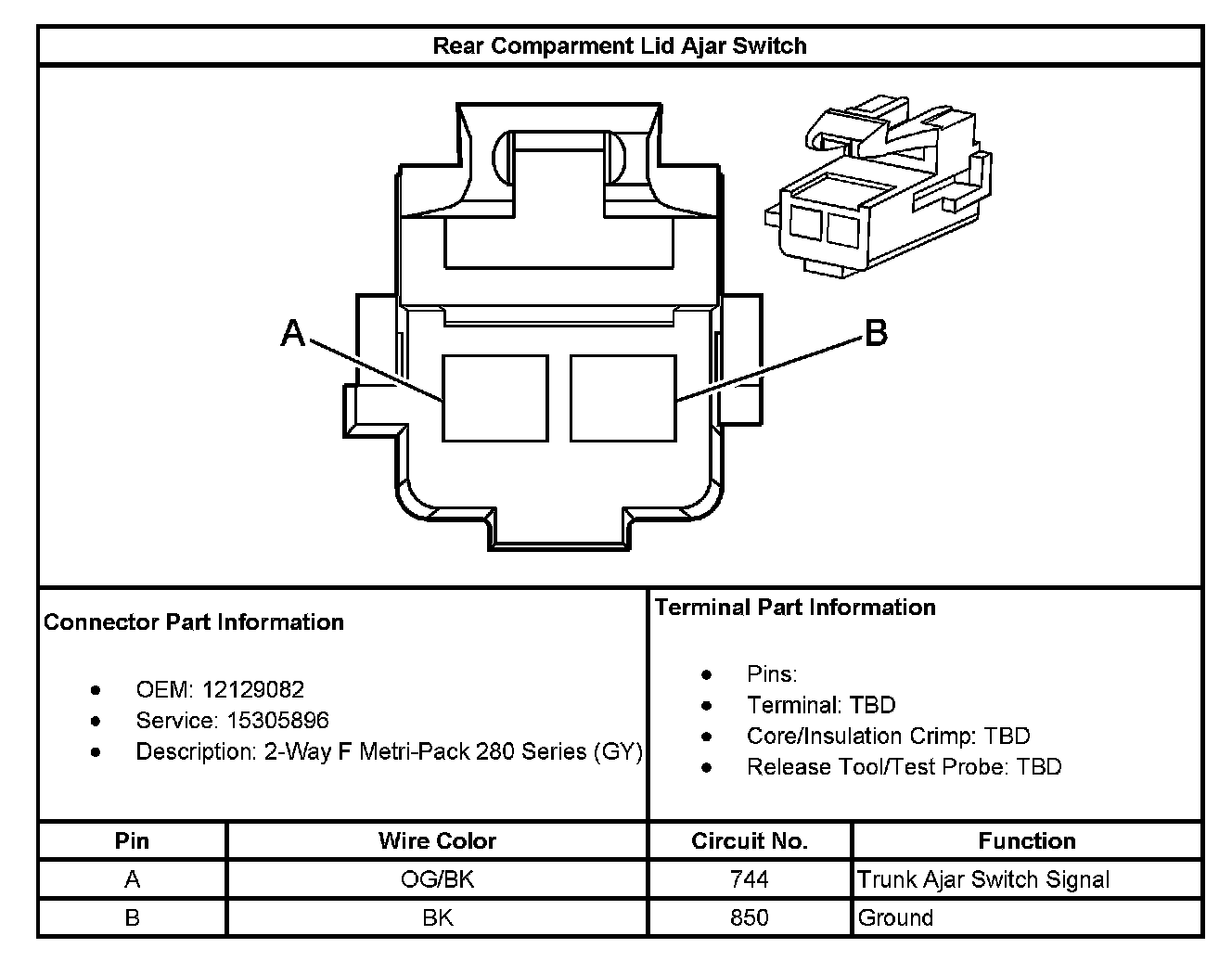

Rear Comparment Lid Ajar Switch:

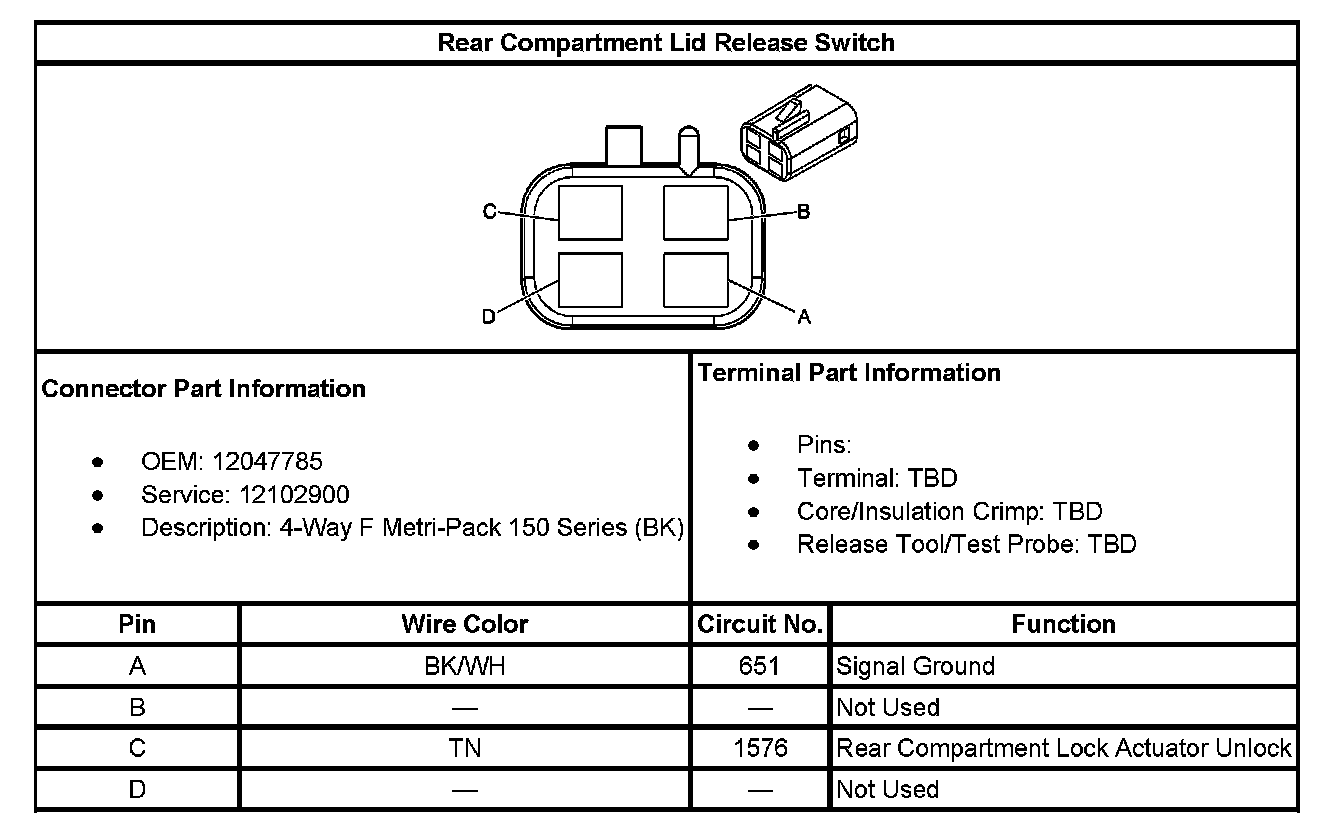

Rear Compartment Lid Release Switch:
