Home >> Pontiac >> 2006 >> Solstice L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Fluid Level Sensor/Switch

Brake Fluid Level Sensor/Switch

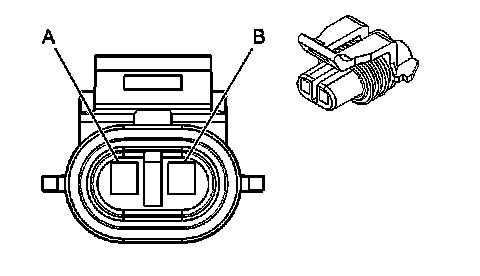

Brake Fluid Level Switch

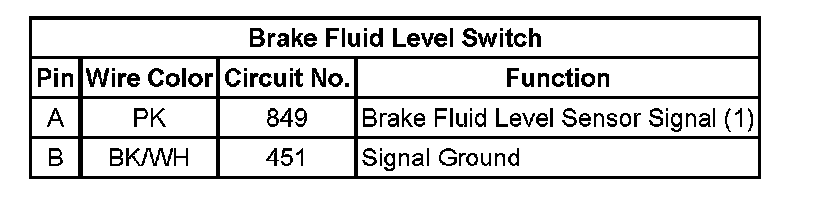

Brake Fluid Level Switch:

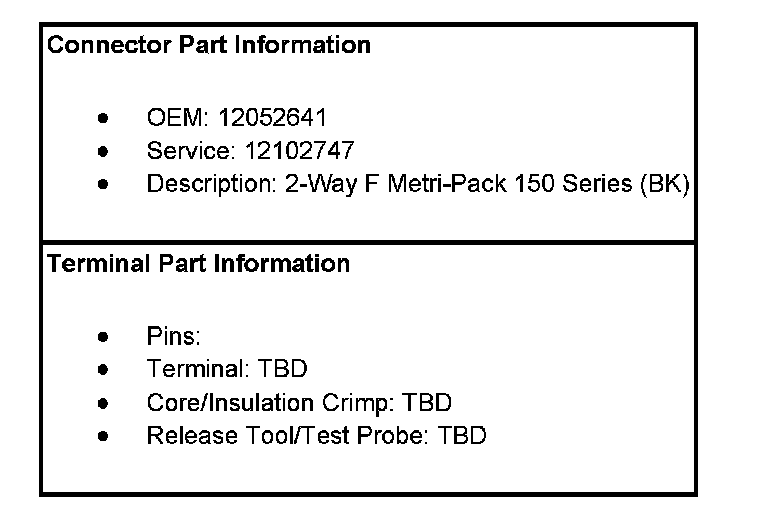

Brake Fluid Level Switch:
