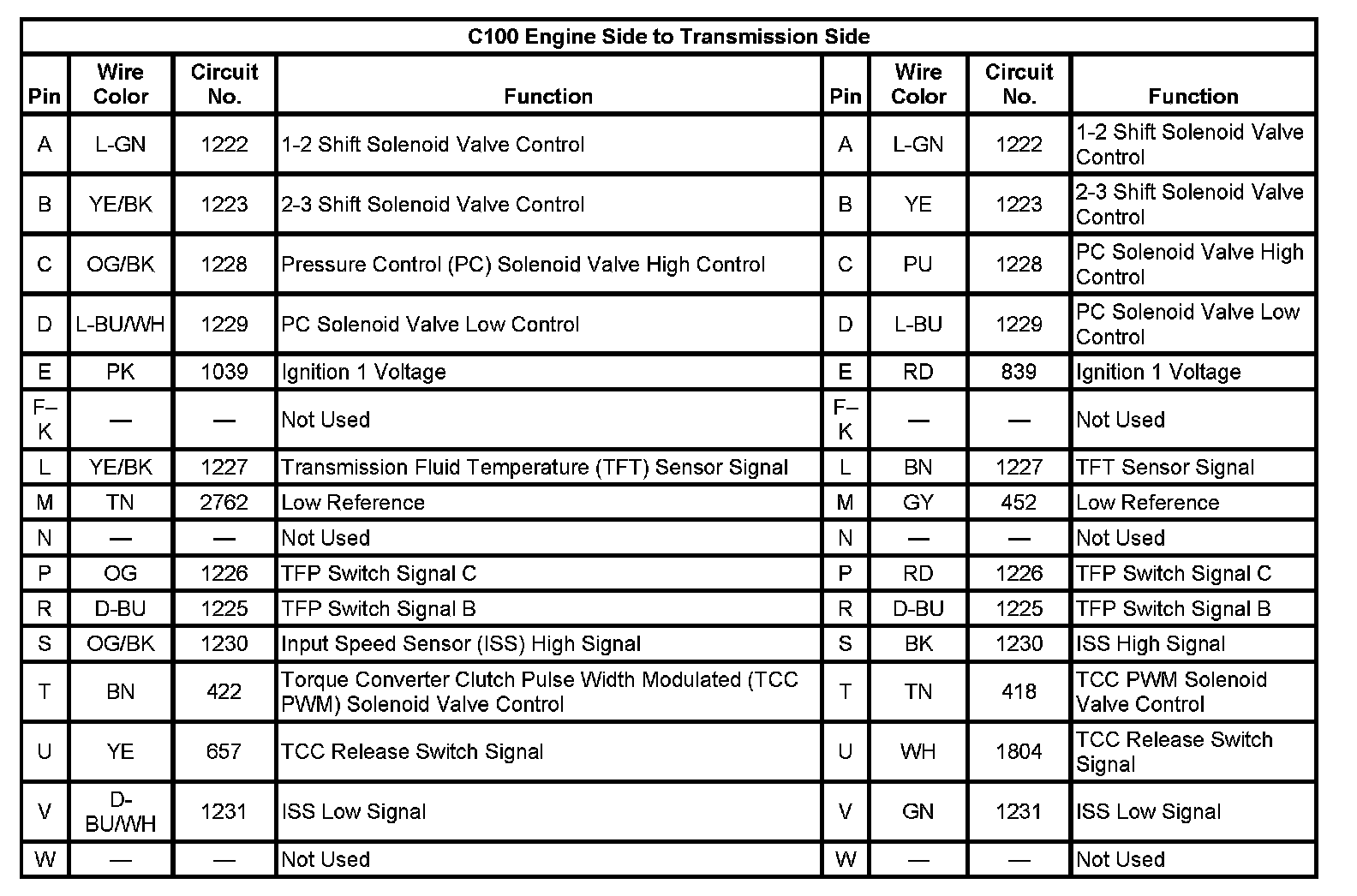

C100 Engine Side to Transmission Side
C100 Engine Side to Transmission Side:
C100 Engine Side to Transmission Side:
