Home >> Pontiac >> 2006 >> Grand Prix V6-3.8L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

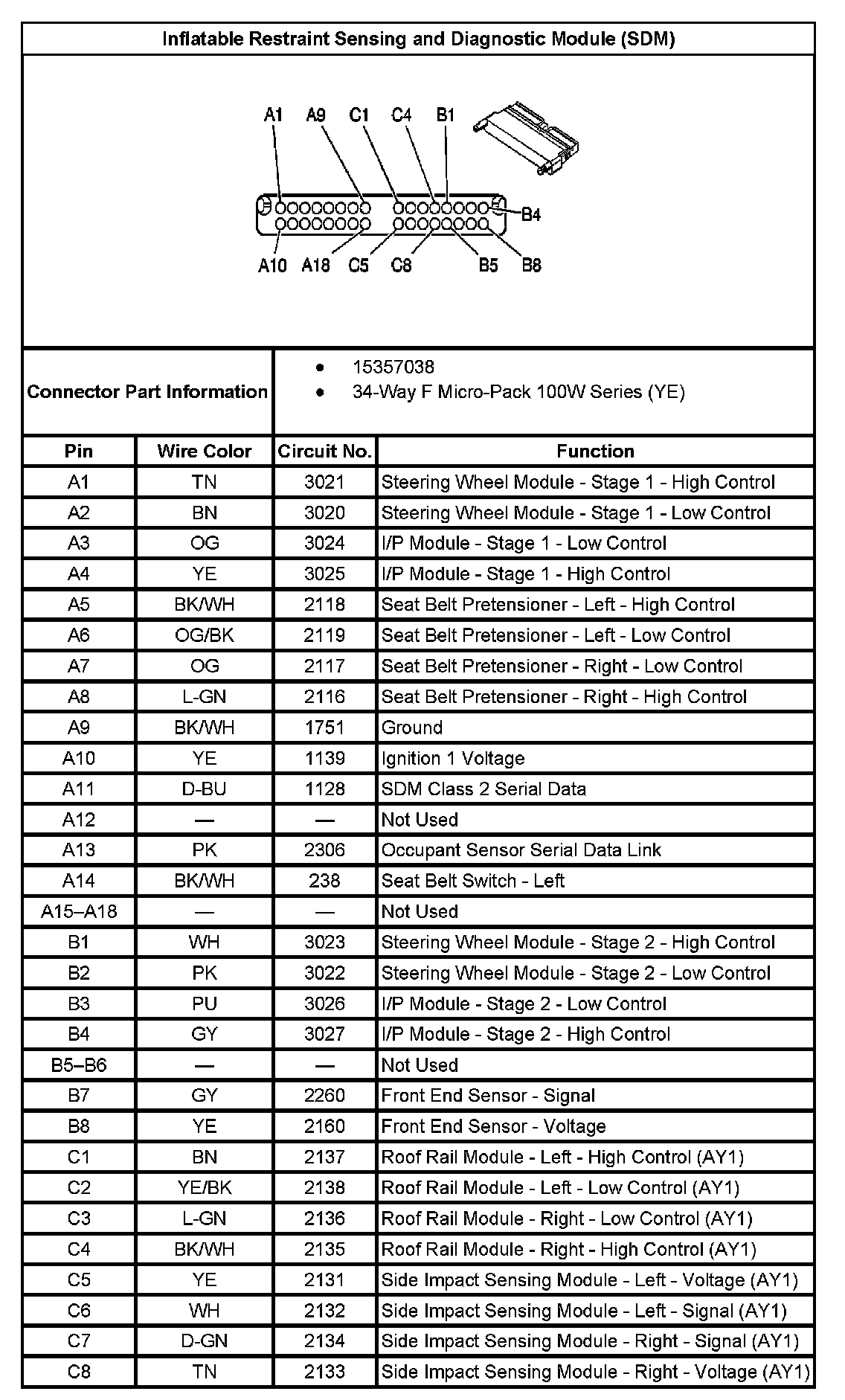

Air Bag Control Module

Inflatable Restraint Sensing And Diagnostic Module (SDM):
