Control Module: Diagrams

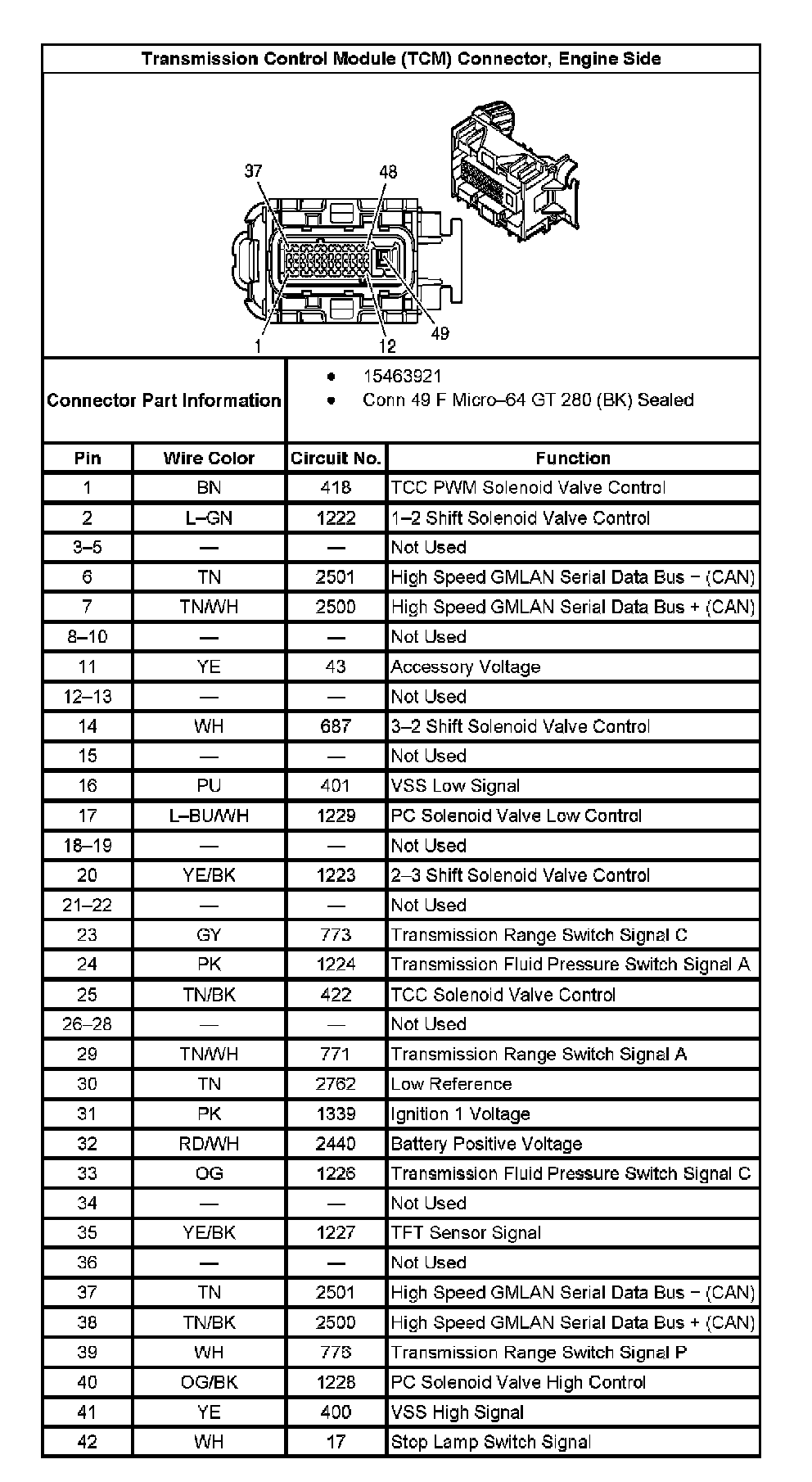

Transmission Control Module (TCM) Connector, Engine Side:

Transmission Control Module (TCM) Connector, Engine Side:
