Home >> Pontiac >> 2006 >> GTO V8-6.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Relay >> Locations >> Instrument Panel Fuse Block

Instrument Panel Fuse Block

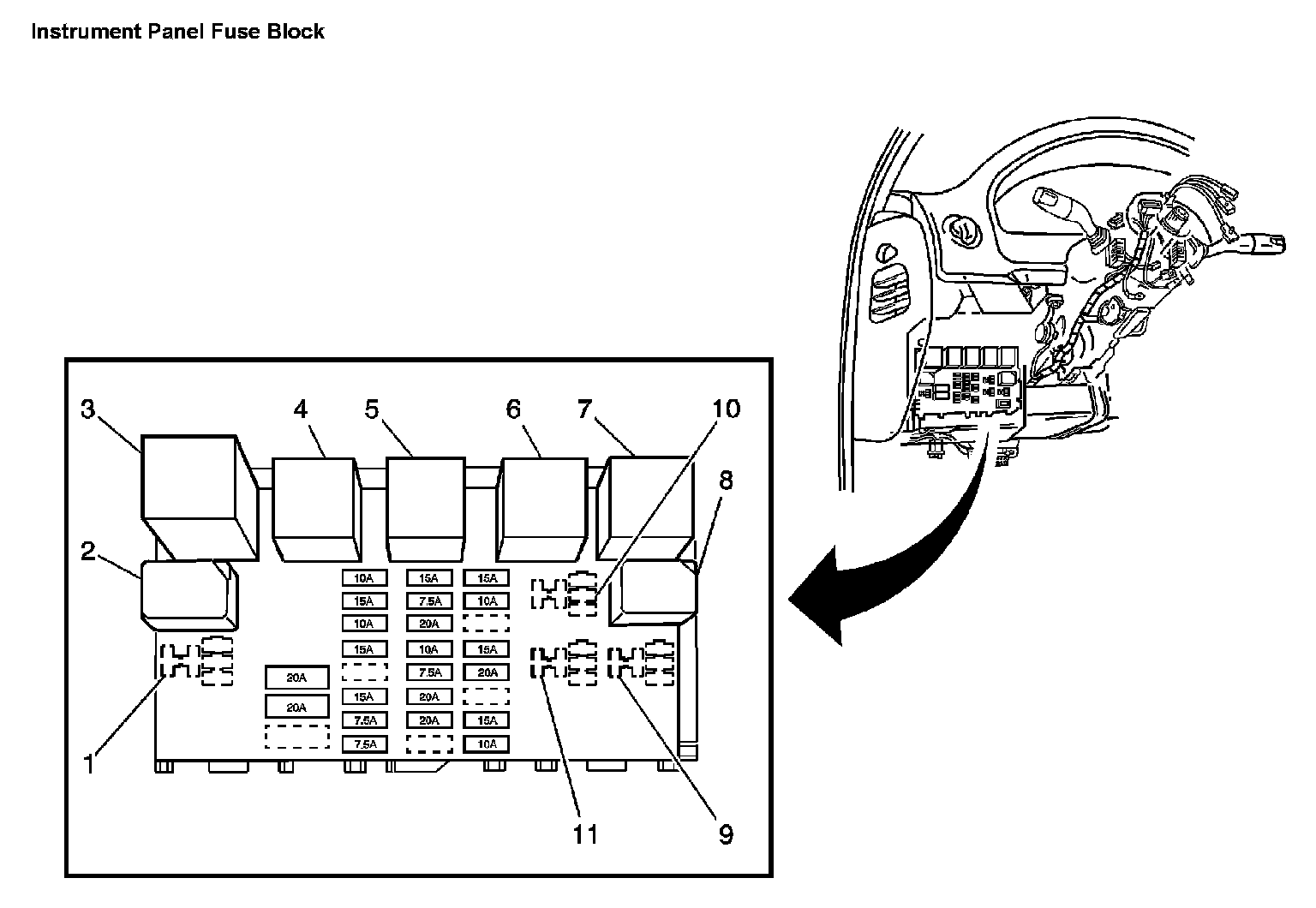

Location View:

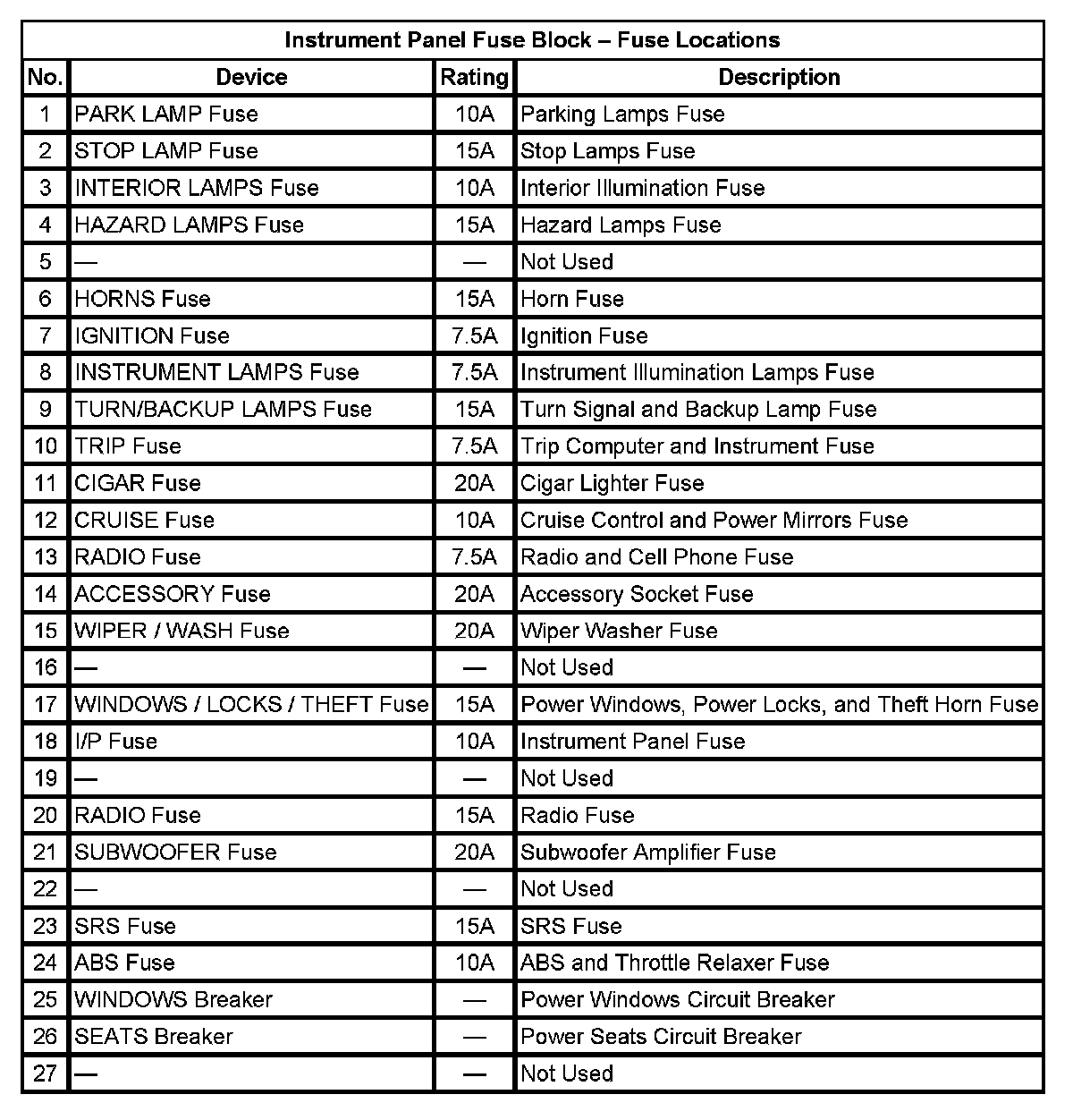

Application Table:

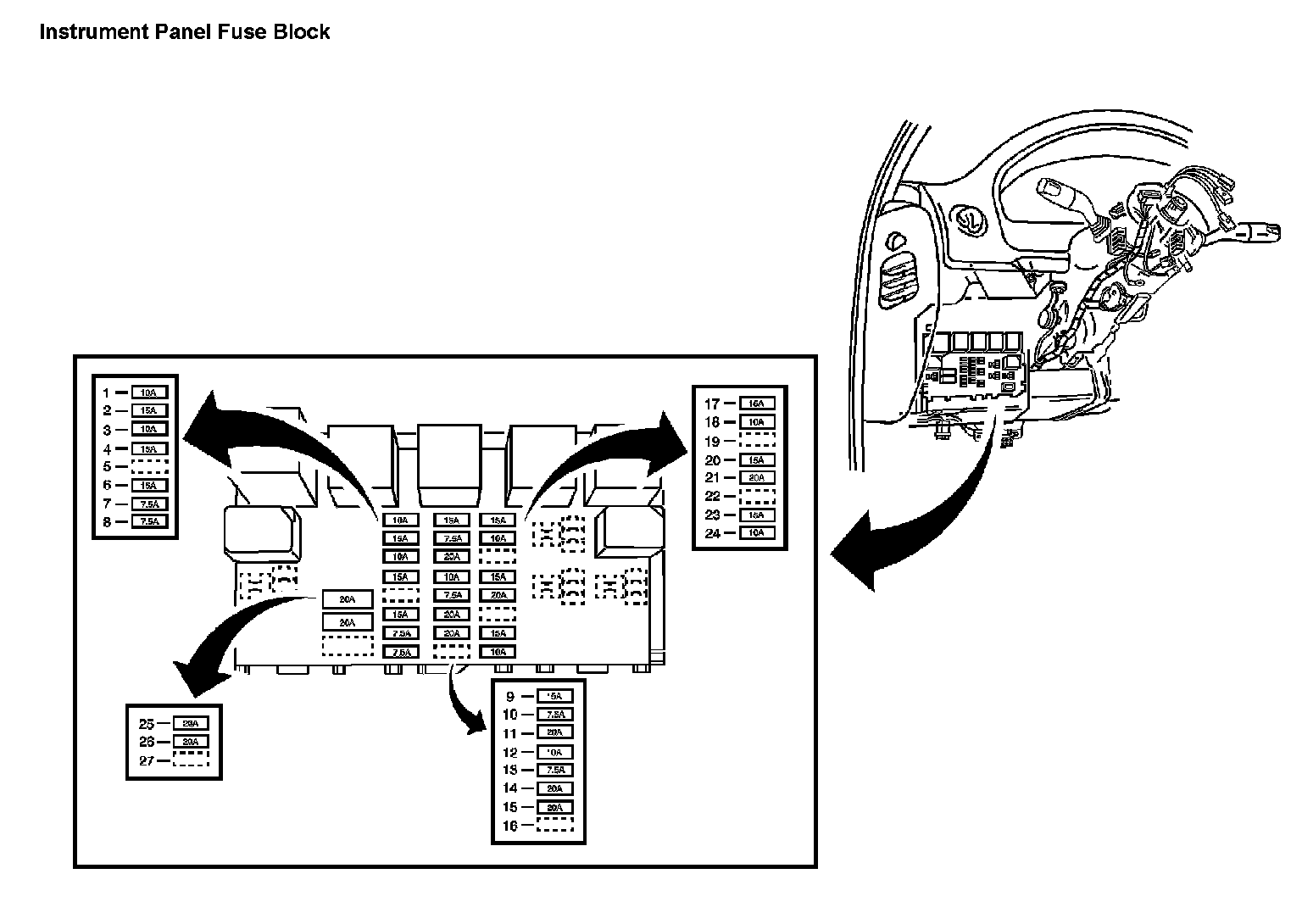

Location View:




Application Table:
