Transmission Position Sensor/Switch: Diagrams

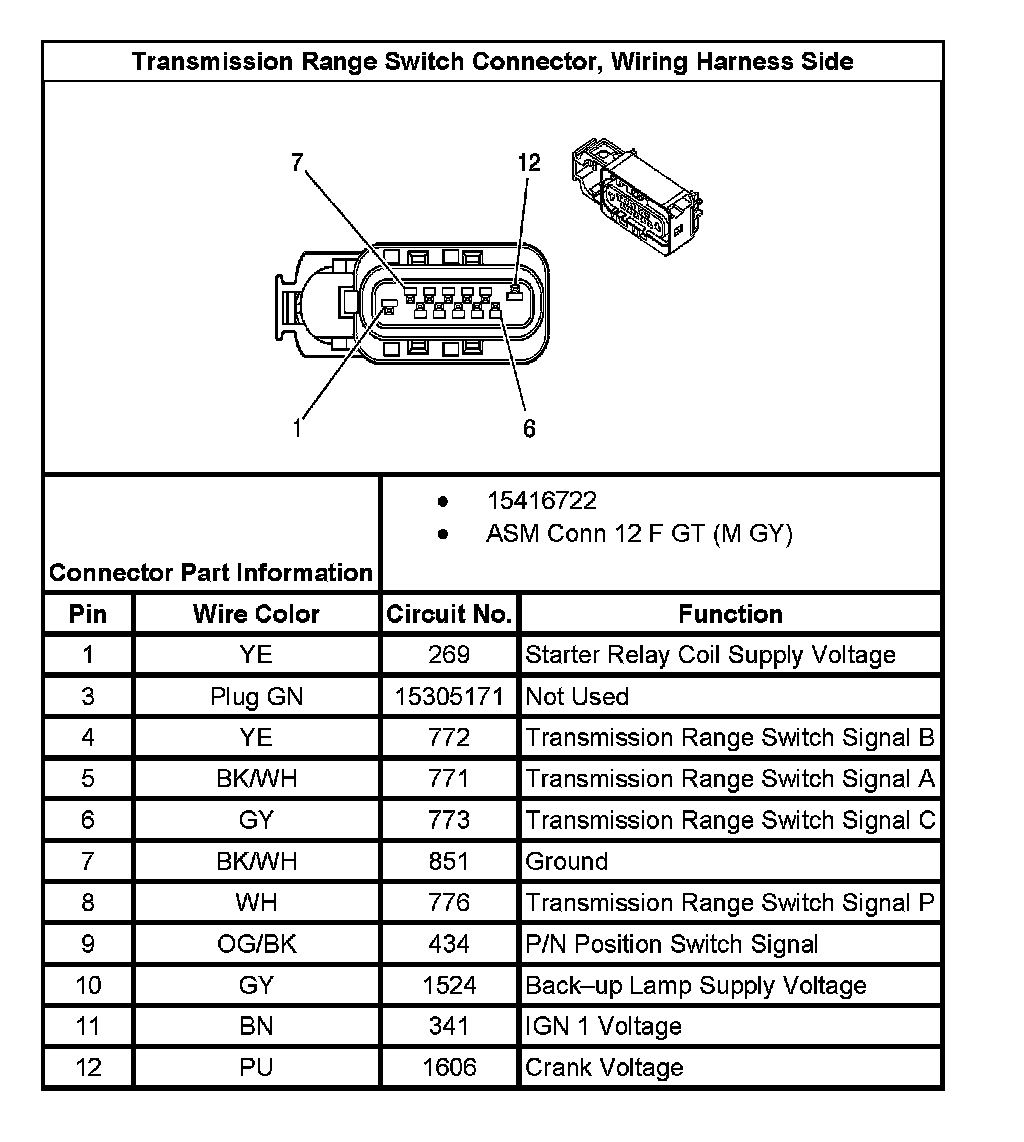

Transmission Range Switch Connector, Wiring Harness Side:
