Home >> Pontiac >> 2006 >> G6 V6-3.9L VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID >> Body Control Module (BCM)

Body Control Module (BCM)

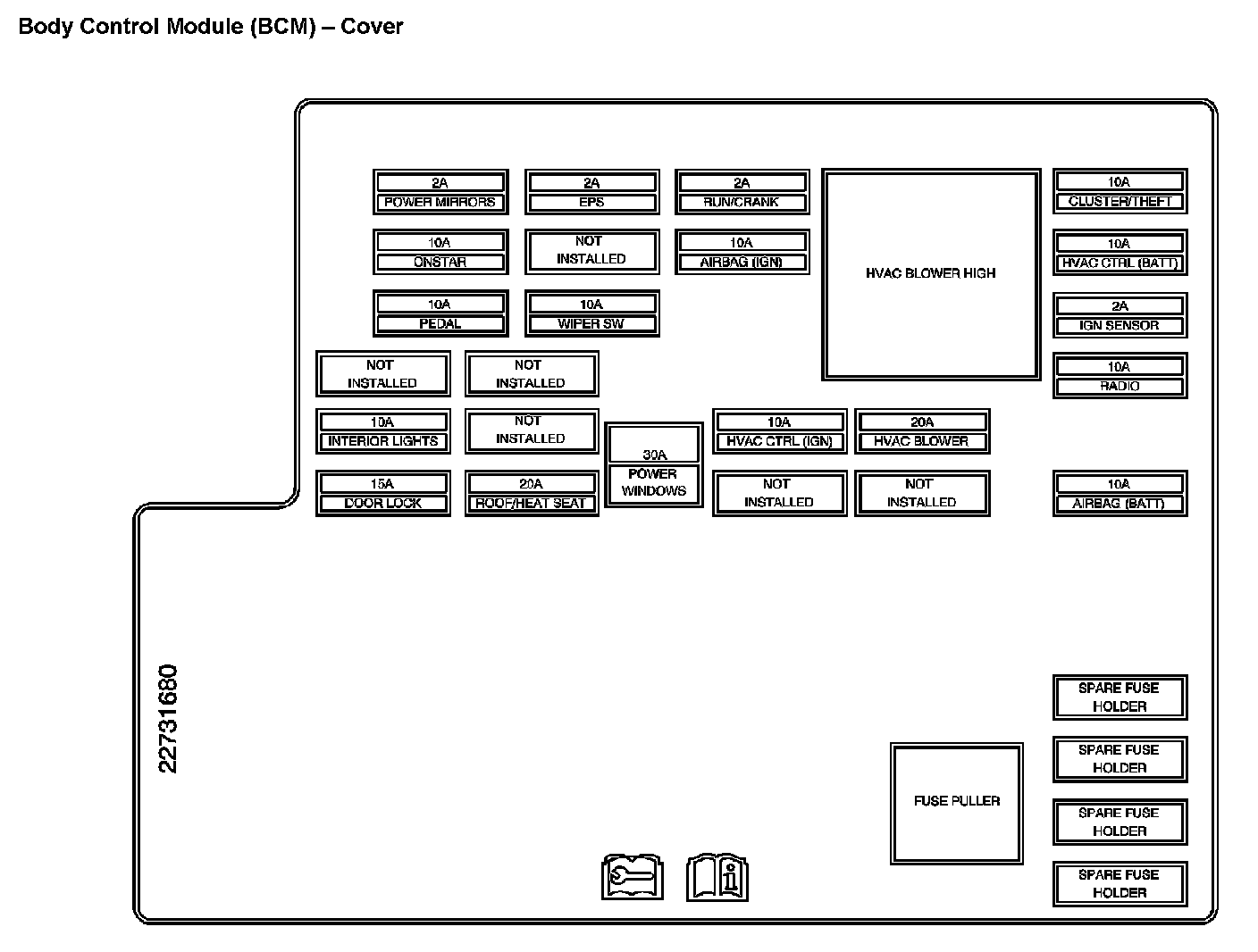

Location View:

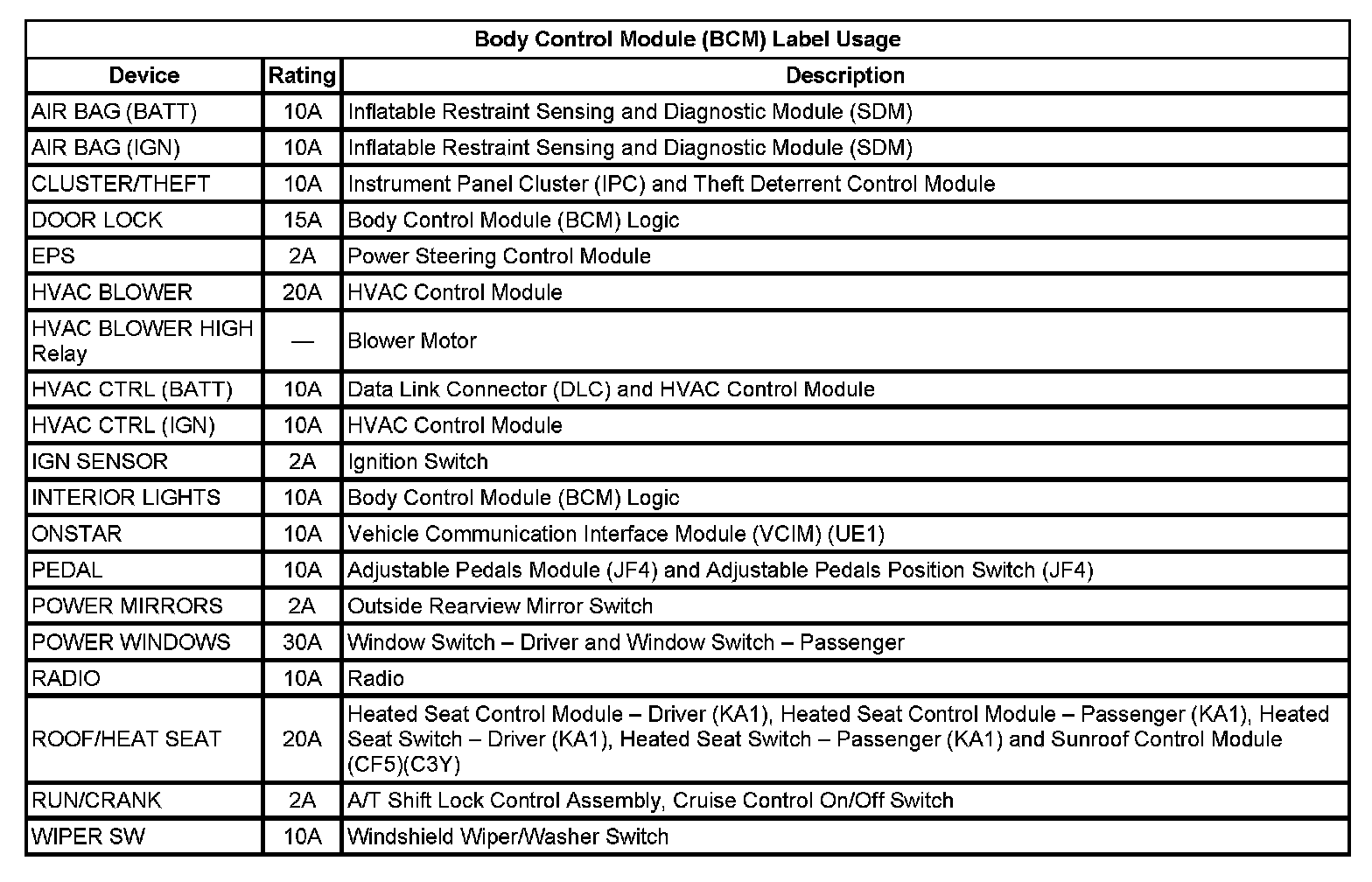

Application Table:

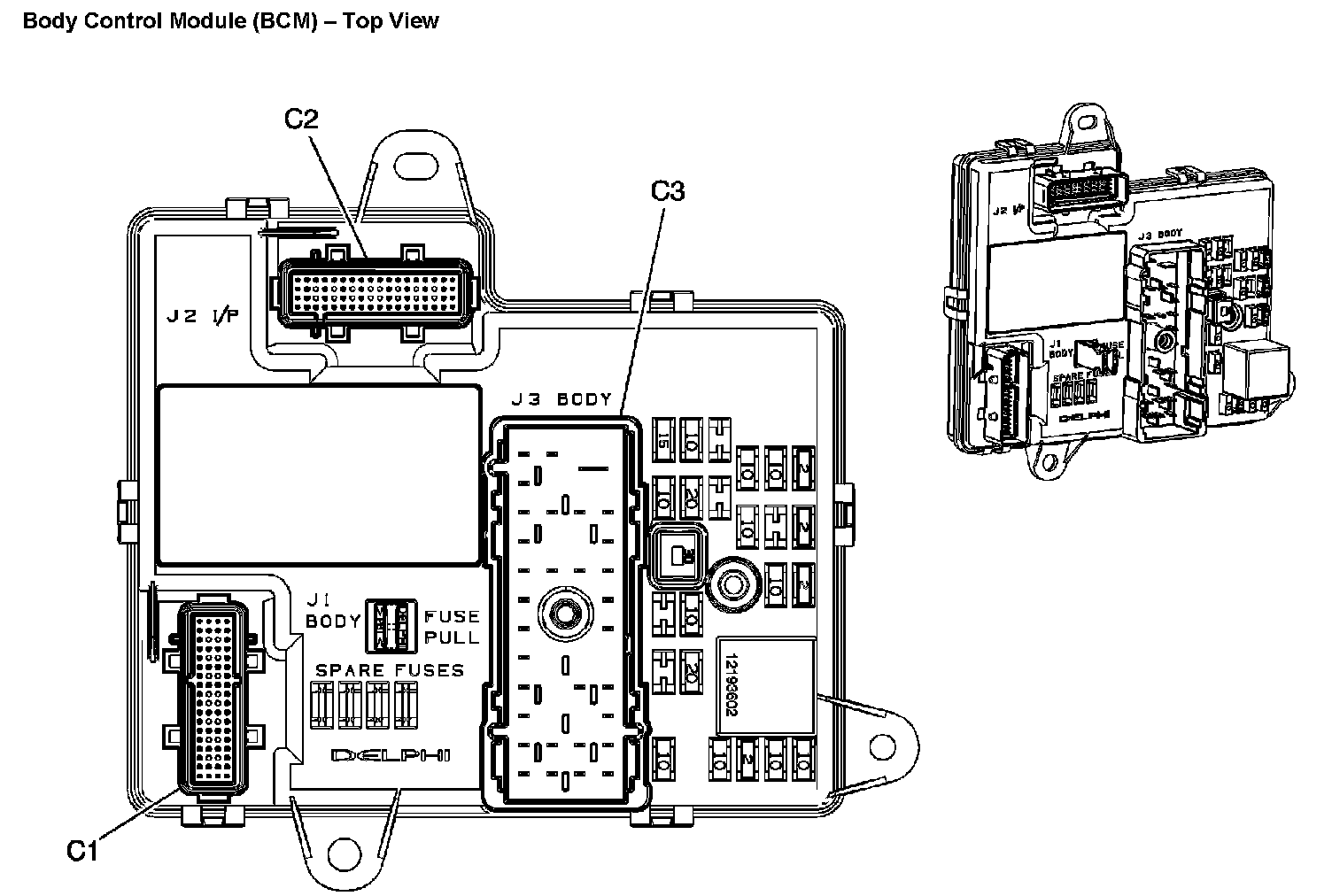

Location View:

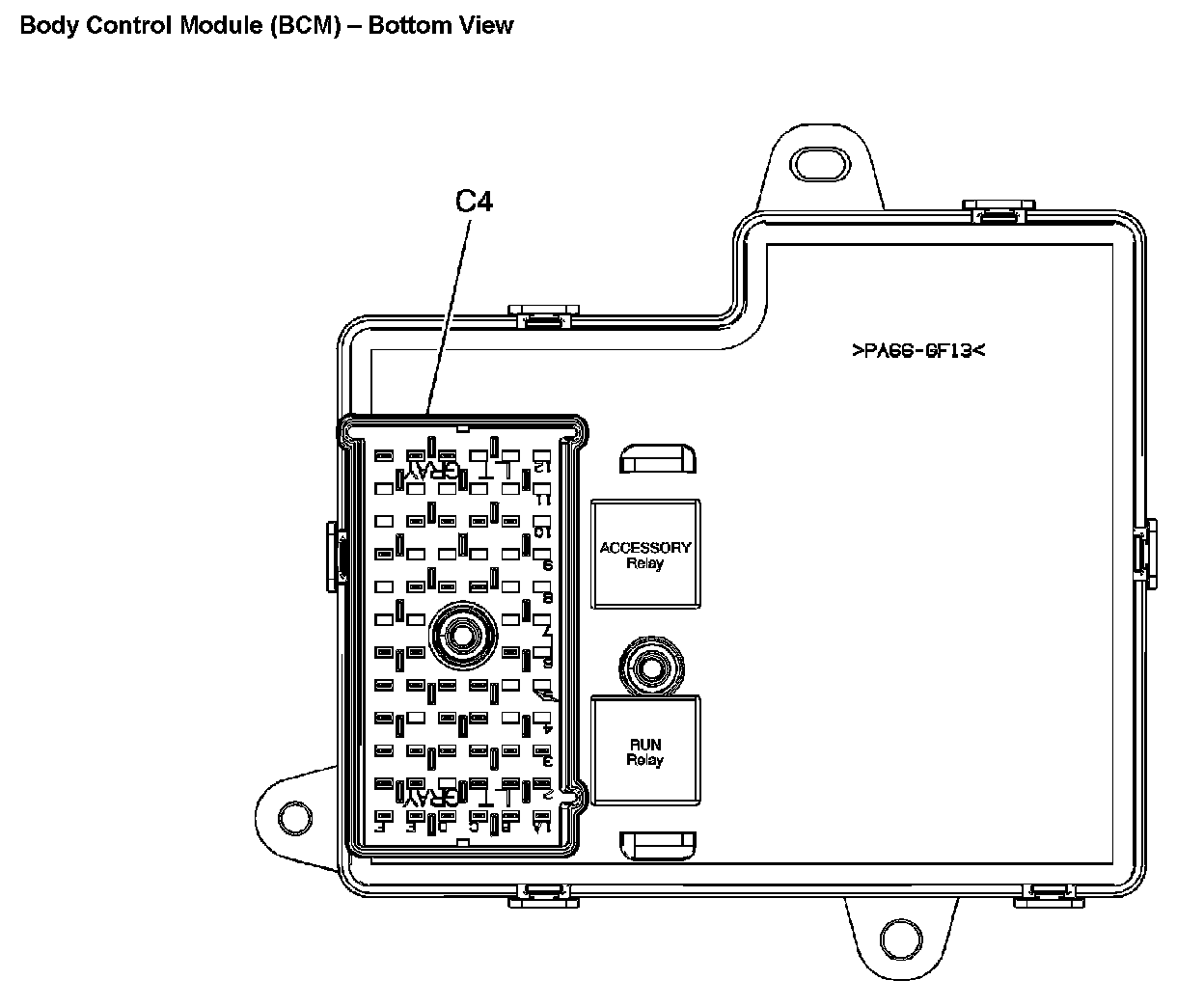

Location View:
