Pontiac
>>
2006
>>
G6 V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
HVAC System - Manual
HVAC System - Manual

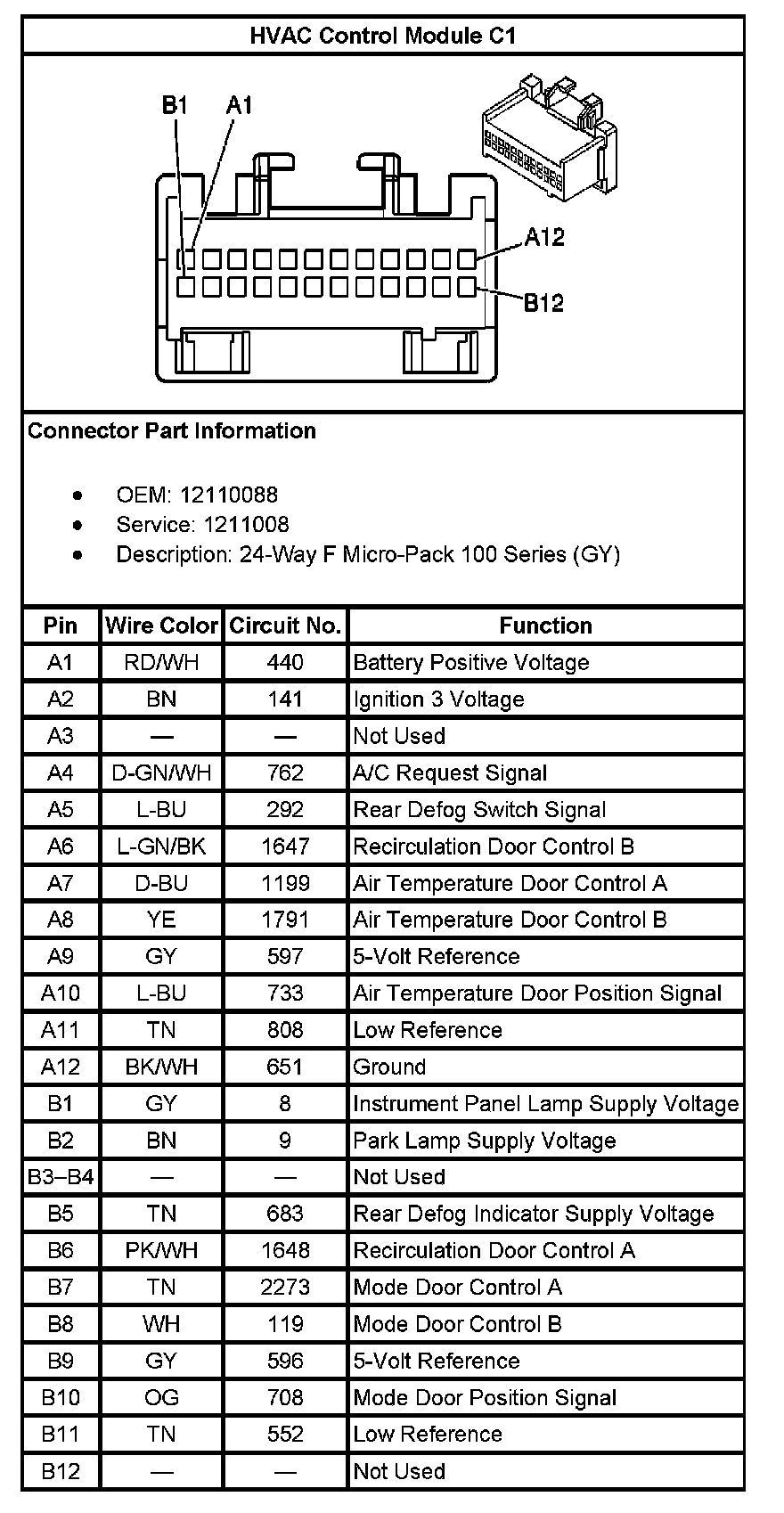

HVAC Control Module C1:
HVAC Control Module C2:
