Home >> Pontiac >> 2006 >> G6 V6-3.5L VIN 8 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Locations

Knock Sensor: Locations

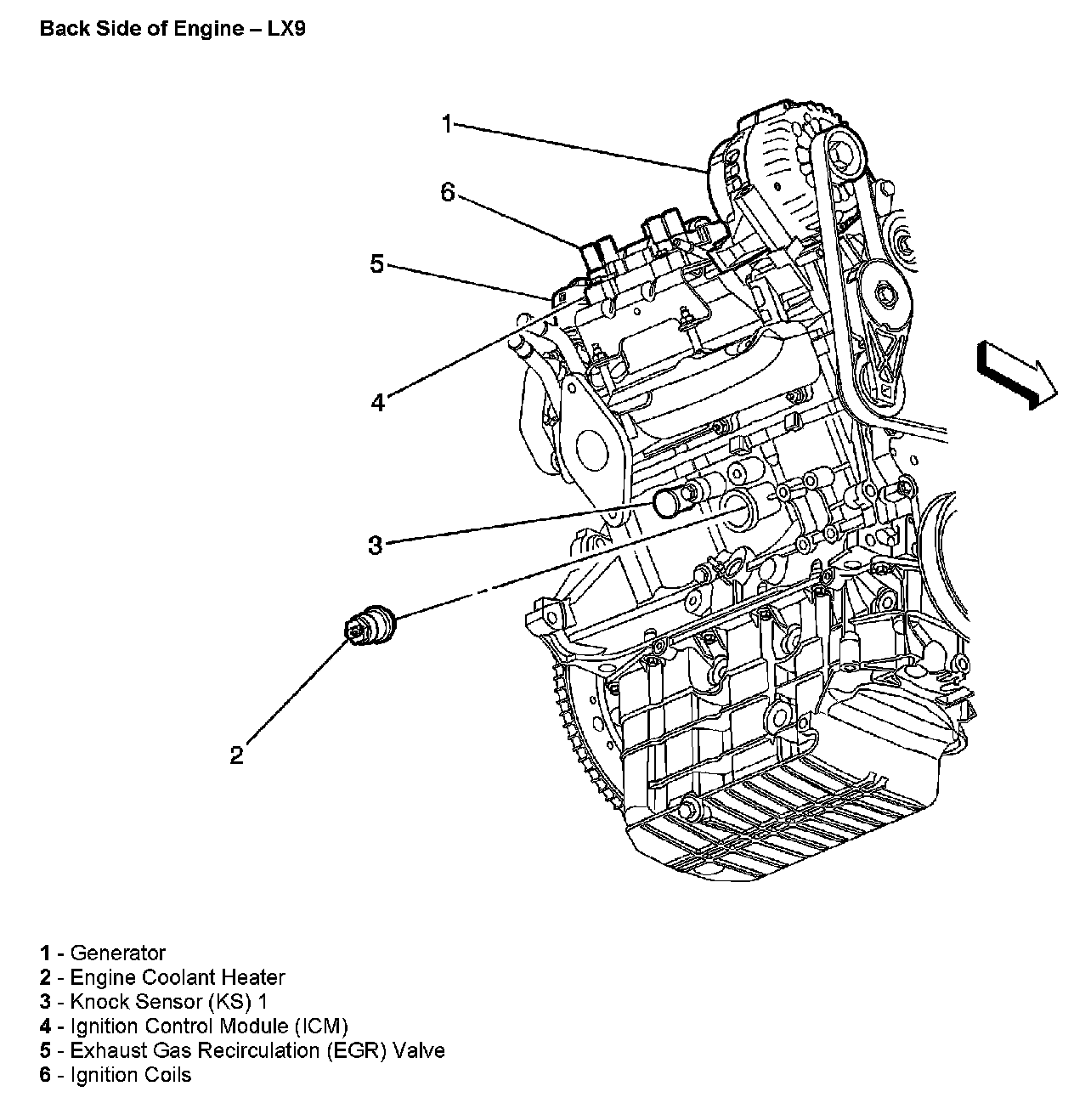

Back Side Of Engine:

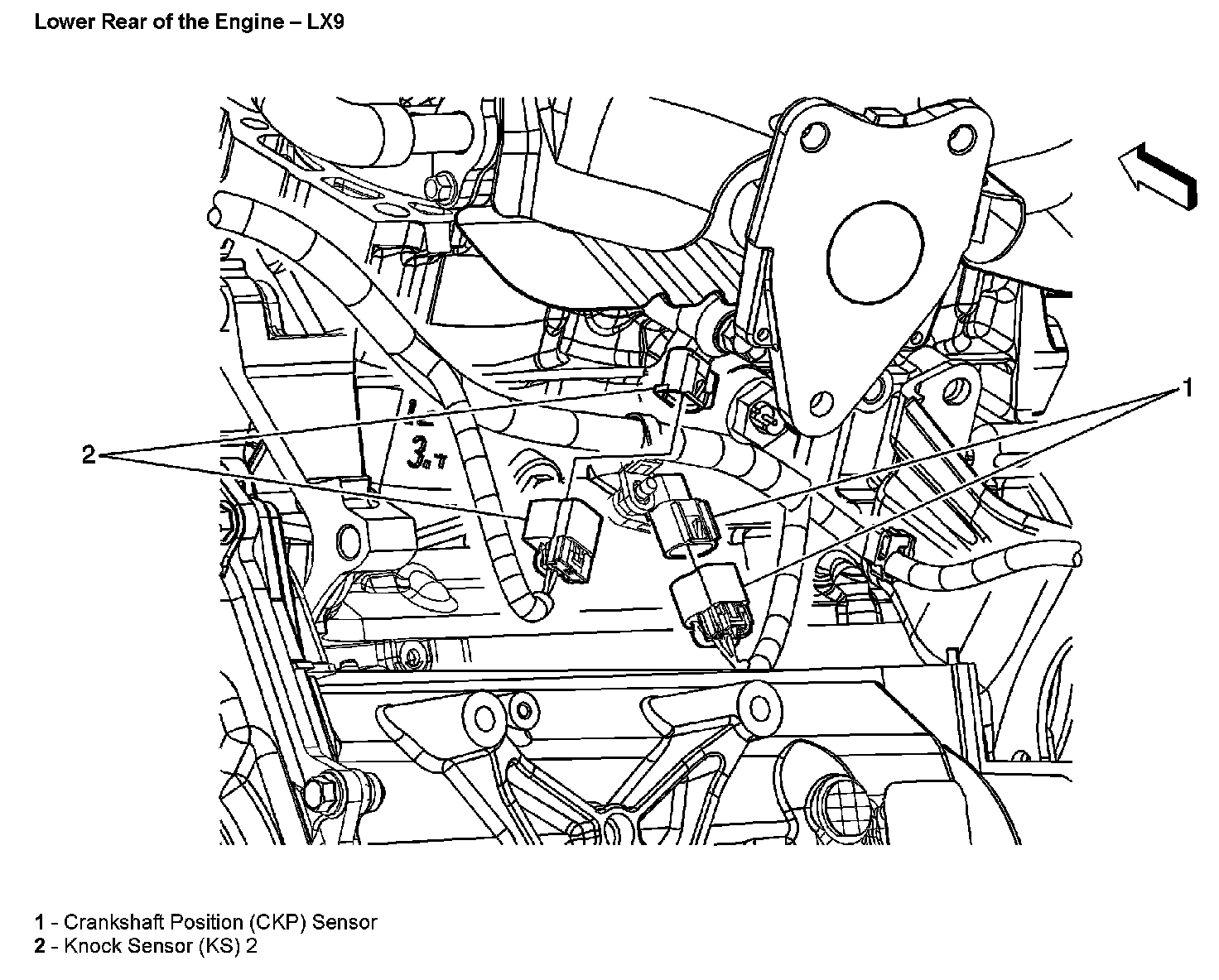

Lower Rear Of The Engine:

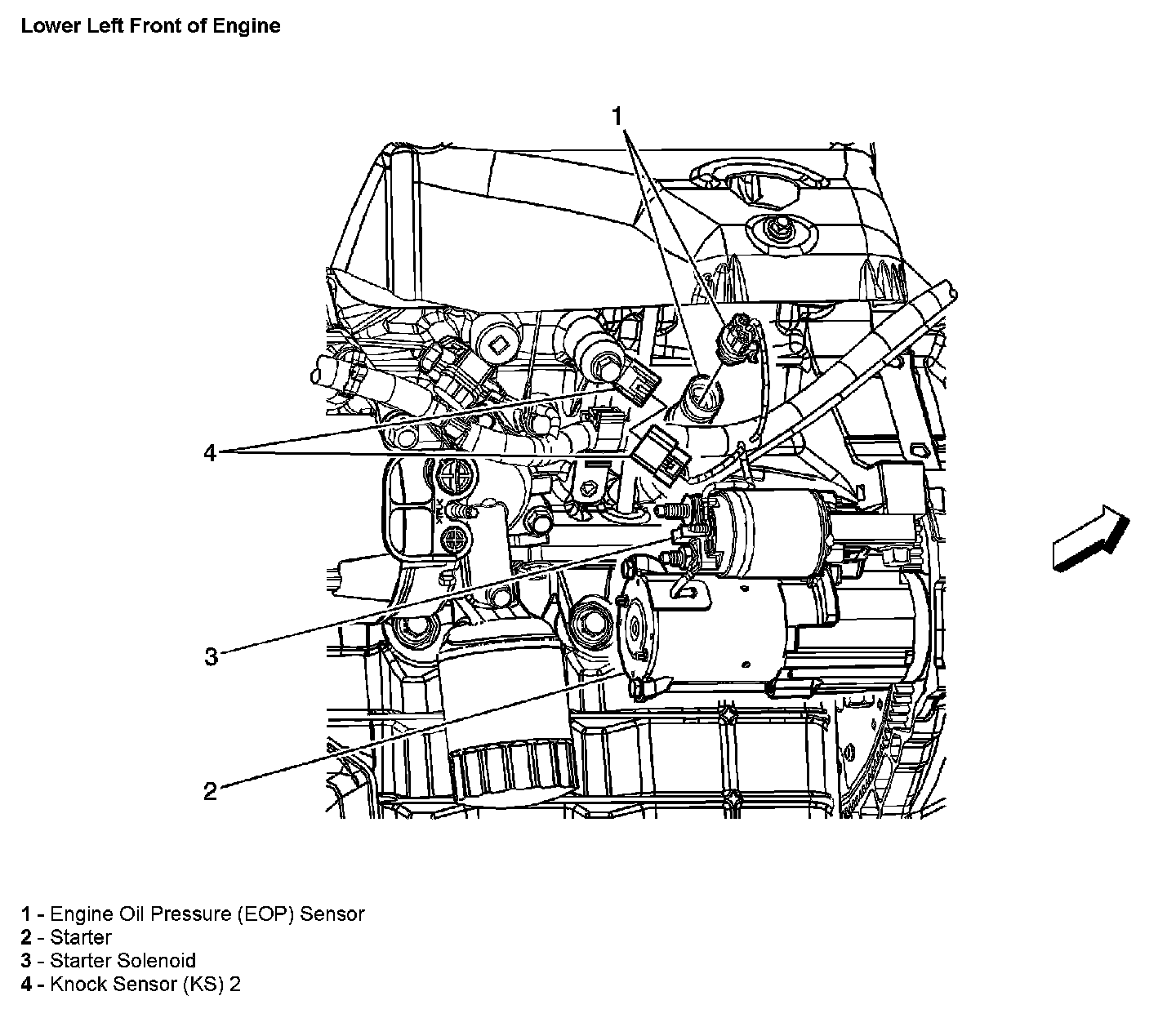

Lower Left Front Of Engine:
