Coolant Temperature Sensor/Switch (For Computer): Locations

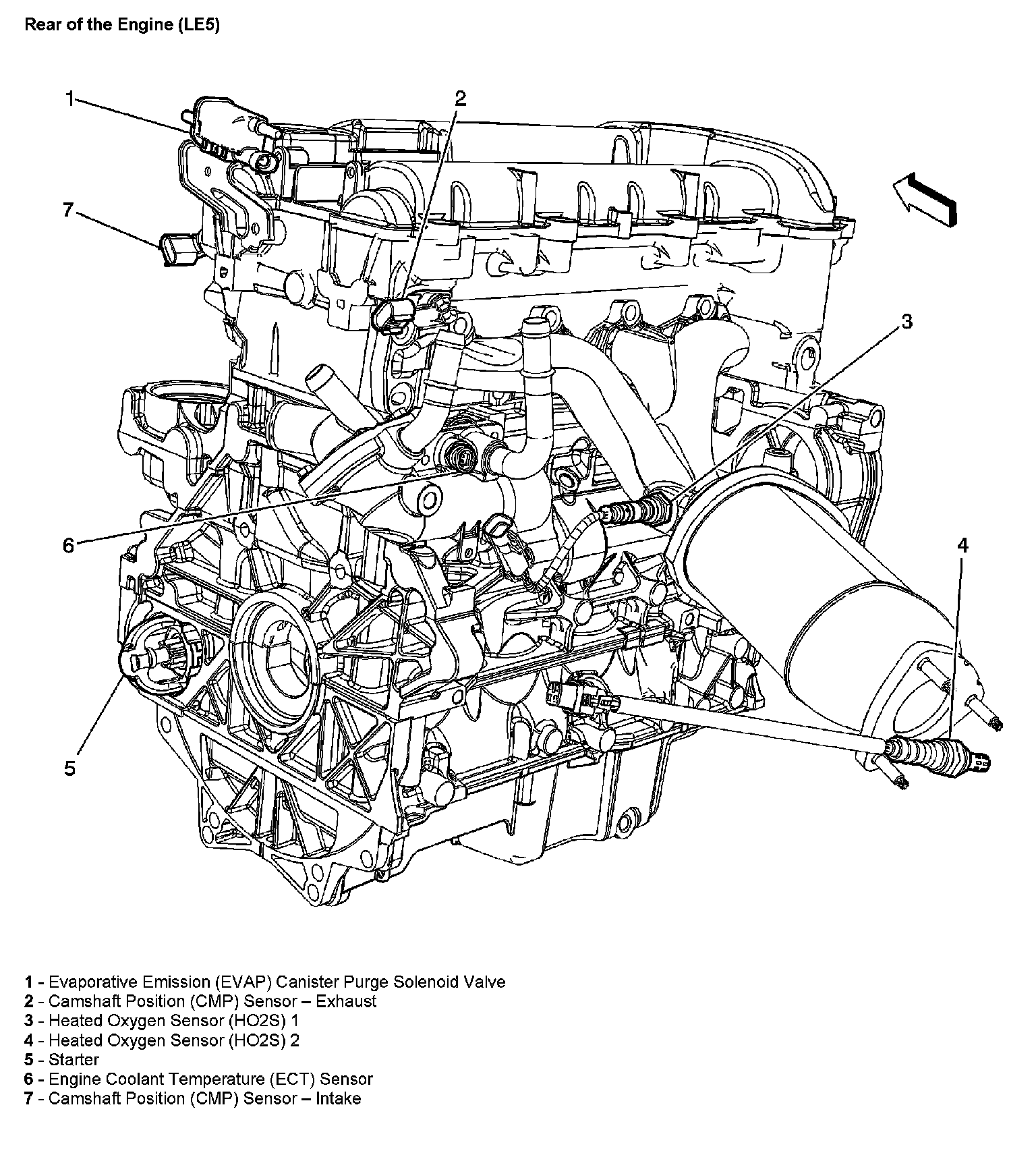

Rear Of The Engine:

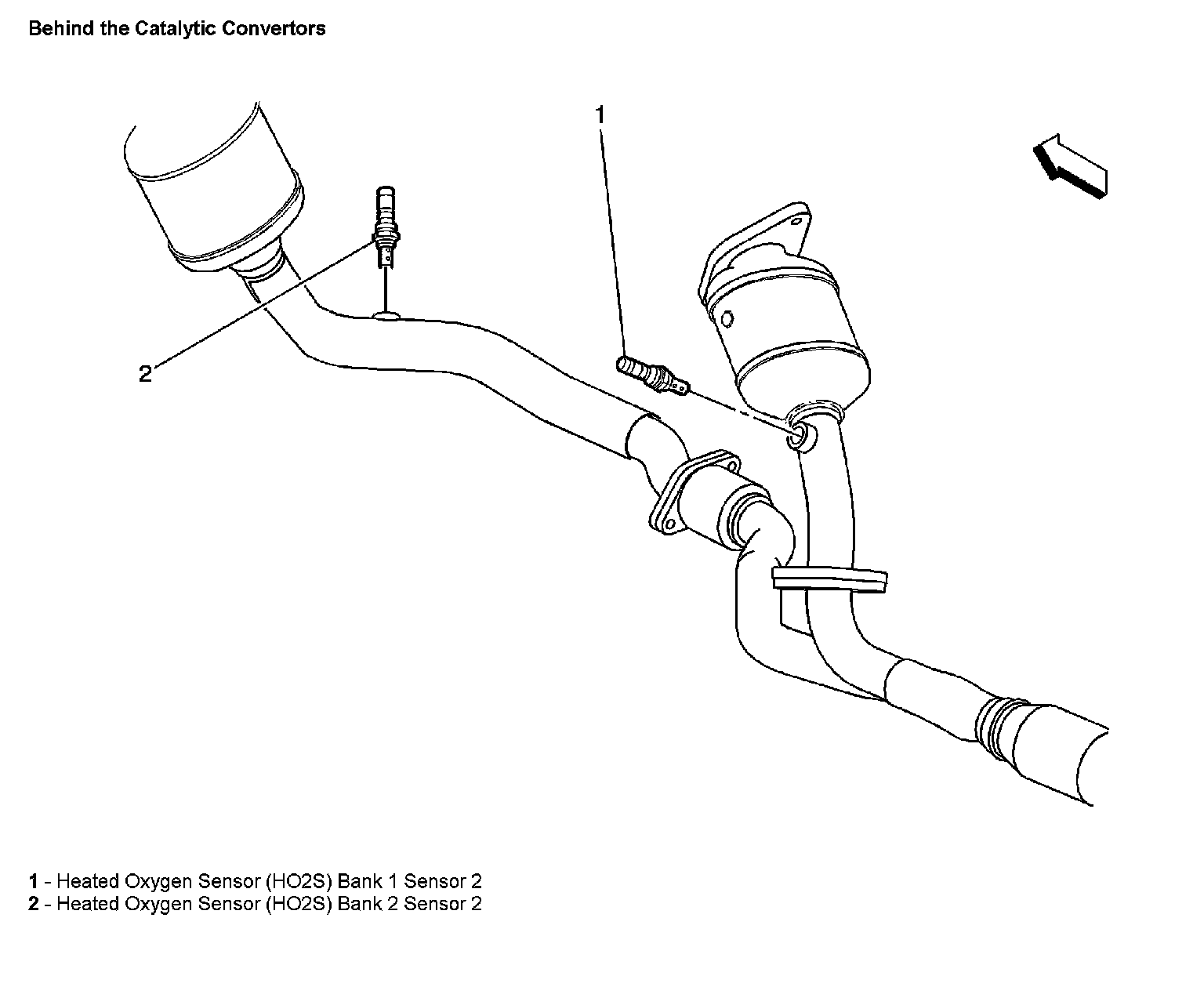

Behind The Catalytic Convertors:
