Home >> Pontiac >> 2005 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Crankshaft Position Sensor >> Locations

Crankshaft Position Sensor: Locations

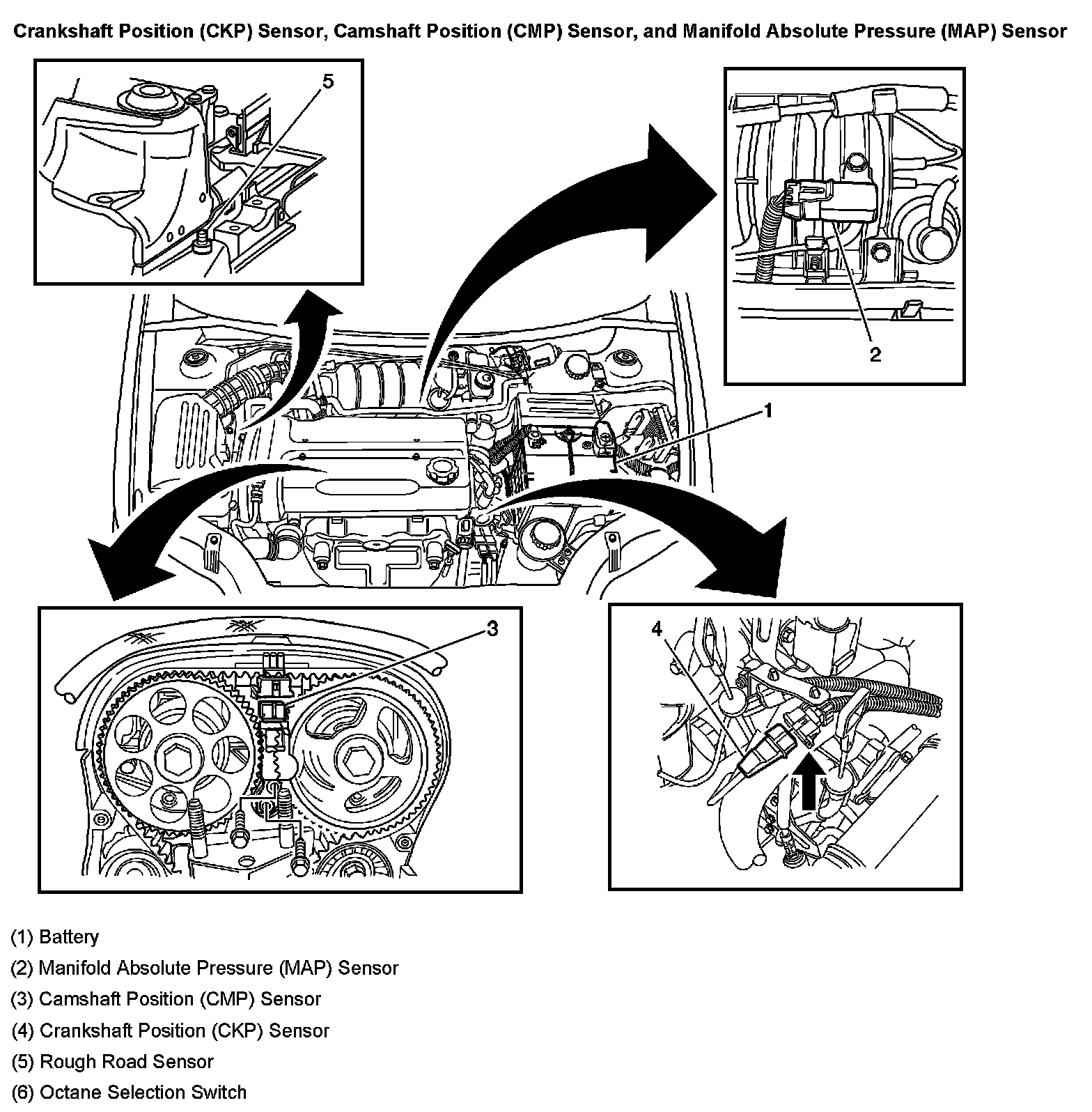

Crankshaft Position (CKP) Sensor, Camshaft Position (CMP) Sensor, And Manifold Absolute Pressure (MAP) Sensor:
