Home >> Pontiac >> 2005 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

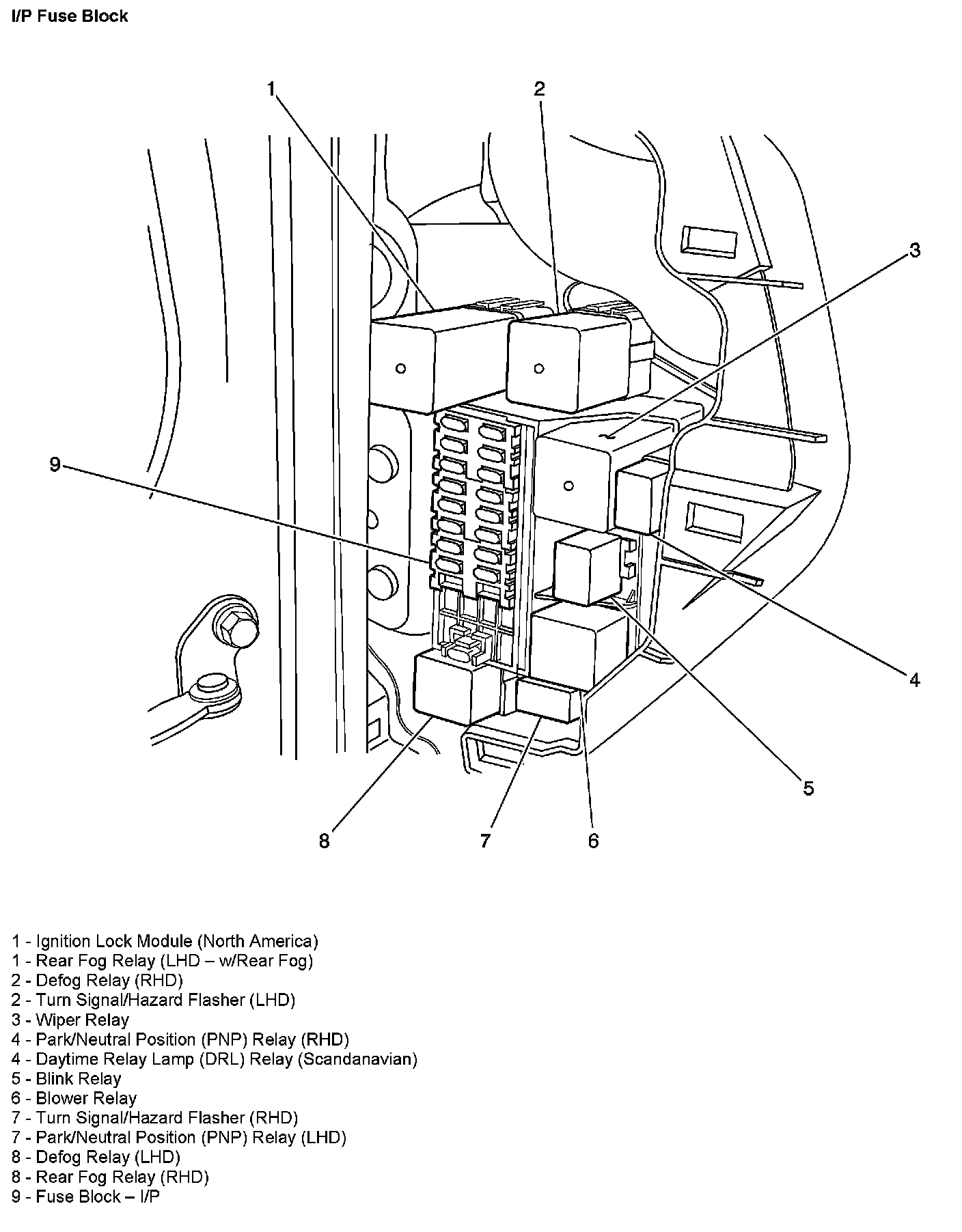

I/P Fuse Block:
